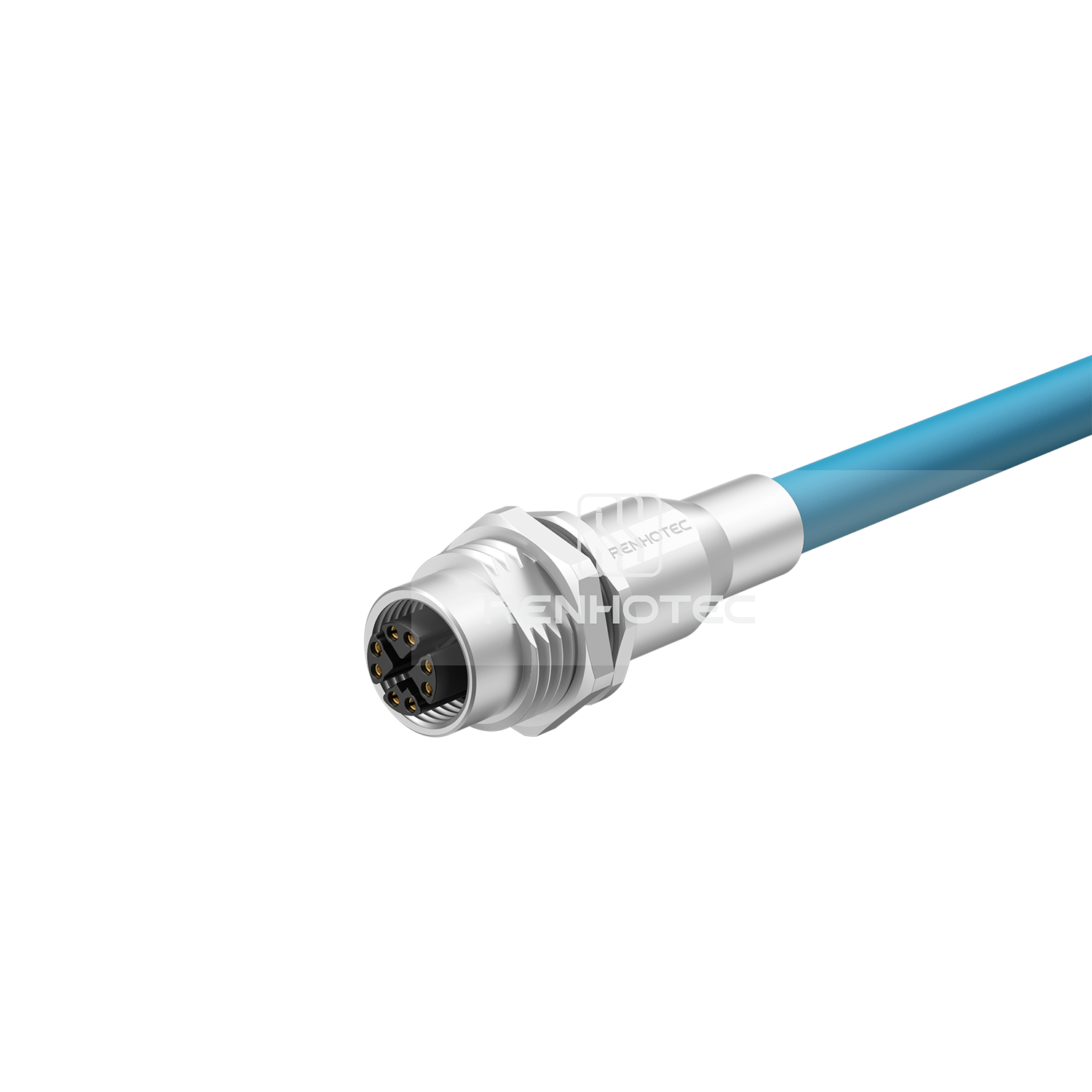

M12 8 Pin X Code Female Panel Mount Receptacle with Wires Front Fastened Shielded Straight with Shielding Tube

M12 8 Pin X Code Female Panel Mount Receptacle with Wires Front Fastened Shielded Straight with Shielding Tube

SKU: RHT-634-3297-8X-XXX Categories: , ,
Get a Quote
Key

X
Number of Positions

Contact Type

Female
Orientation

Body Material

Brass, Nickel Plated
Contact Finish

Gold
Contact Material

Phosphor Bronze
Contact Termination

Solder Cup
Insulation Material

PA66+GF
Wire Material

PVC/PUR/TPU/Customized
Wire Gauge

24AWG/0.25mm2
Seal

Black, NBR
Shielding Bracket Material

Nickel Plated, Zinc Alloy
Shielding

Shielded
Protection Rating

IP67(Mated)
Rated Current

0.5A
Rated Voltage

60V AC/DC
Contact Resistance

≤5MΩ
Insulation Resistance

≥100MΩ
Mating Cycles

≥500
Temperature range

-20℃ ~ +80℃
