OHS series bayonet ultra-small connector shell size 27 50 pin male bulkhead socket, PCB terminal

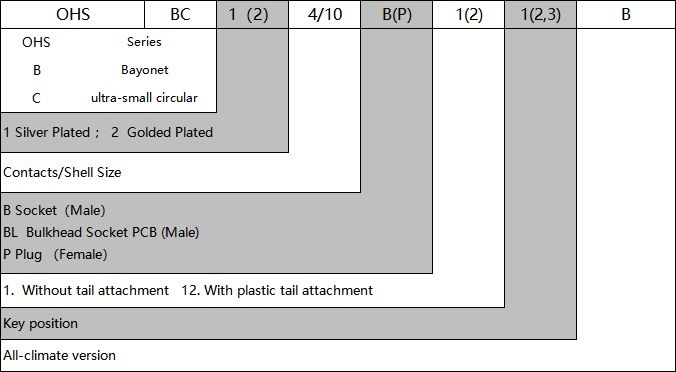

SKU: OHS-BC-1-50/27-BL1-1B Category: OHS Series Connectors

• Bulky connectors waste space and complicate PCB layouts.
• OHS bayonet shell size 27 fits tight installations with 50 pins.
• Male bulkhead socket offers direct PCB terminal mounting.
• Robust bayonet coupling maintains stable connections.
• Ultra-small design saves panel space for compact electronics.

Get a Quote Talk To Us

OHS Series Bayonet Ultra-Small Connectors

OHS series bayonet ultra-small connectors mainly adopt legacy connector technology. This type of connector is widely used in DC and AC circuits of various electrical, radio and control instruments. It consists of plugs and sockets, with multi-level key positions for installation. The coupling mode of the connector is bayonet type.

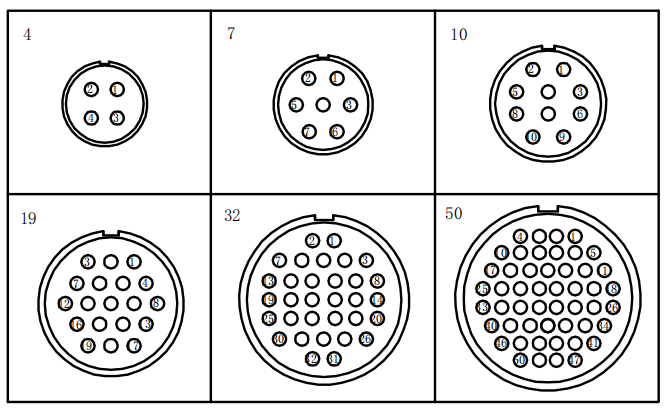

Appearance and Contact Arrangement

Viewed from the mating face of male pins (No position numbers on actual part)

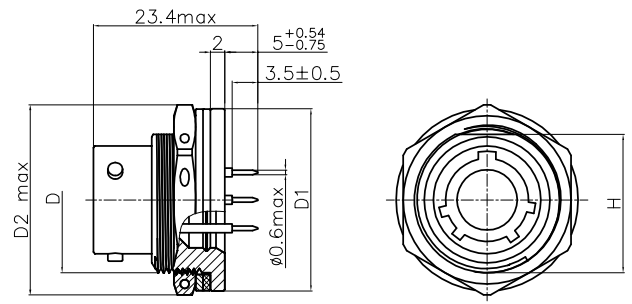

PIN/SHELL SIZE	D	D1	D2	H
4/10	M18×0.75	24	25.4	17
7/12	M20×0.75	25	27.8	19
10/14	M22×0.75	28	31.2	21
19/18	M24×0.75	31	31.2	23
32/22	M30×0.75	35	37.0	29
50/27	M33×0.75	40	41.6	32

Shell Size	27
Connector Type	Socket
Contact Type	Male
Number of Positions	50
Contact Material	Copper alloy gold/silver plated
Insulator	Bakelite
Shell Material	Aluminum Alloy, anodized
Maximum current per contact	1.5A
Total Current	75
Operating Voltage	250
