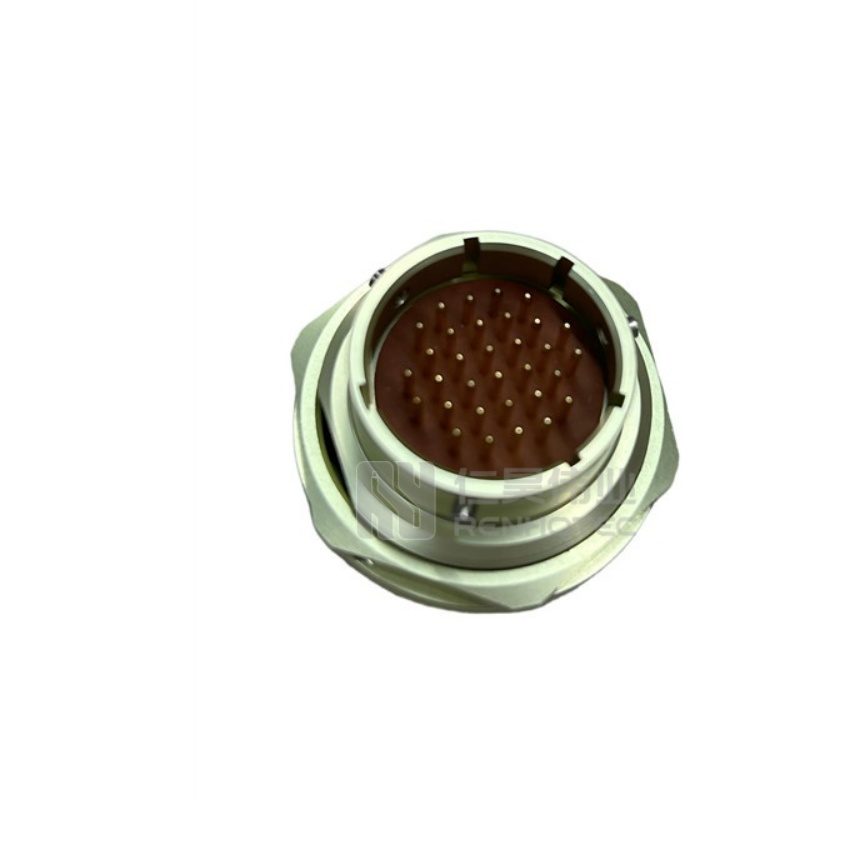

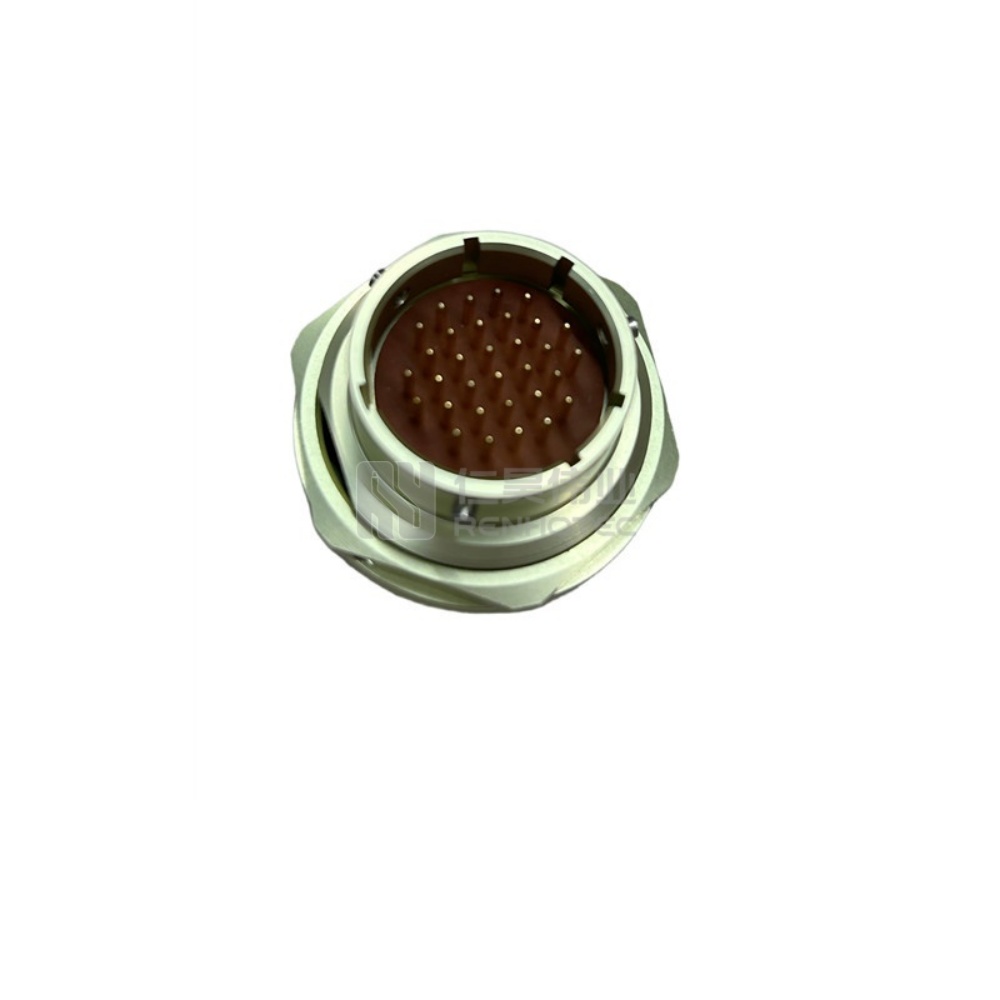

OHS series bayonet ultra-small connector shell size 22 32 pin male bulkhead socket, PCB terminal - OHS-BC-1-32/22-BL1-1B

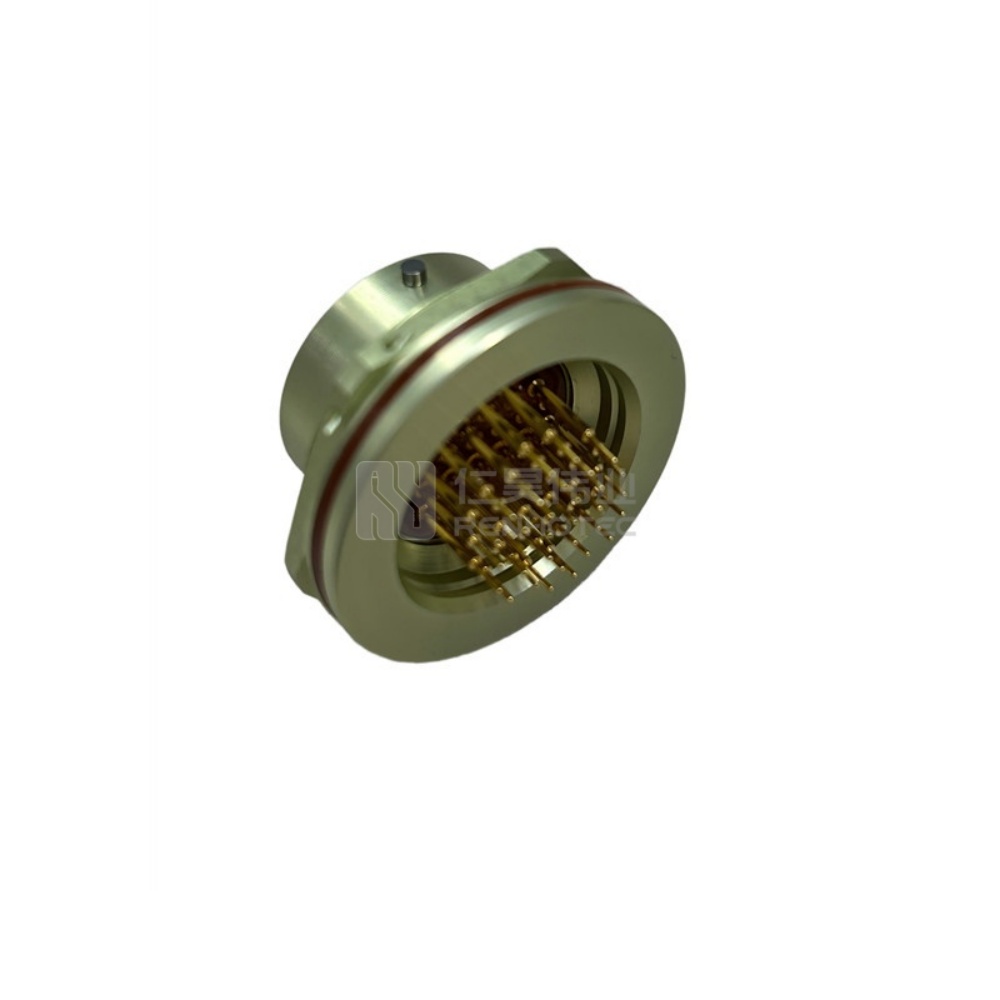

OHS series bayonet ultra-small connector shell size 22 32 pin male bulkhead socket, PCB terminal - OHS-BC-1-32/22-BL1-1B - Image 2

OHS series bayonet ultra-small connector shell size 22 32 pin male bulkhead socket, PCB terminal – OHS-BC-1-32/22-BL1-1B

SKU: OHS-BC-1-32/22-BL1-1B Category:

• Tiny bayonet connector, 32 pins in size 22 shell, for tight spaces.
• Male bulkhead socket with PCB terminals, ideal for compact designs.
• Fix loose connections in dense wiring systems, providing stable signal transfer.
• Simplify complex installations with a durable, plug-and-play design.
• Suited for industrial and electronic gear needing small, high-density links.

Get a Quote

OHS Series Bayonet Ultra-Small Connectors

OHS series bayonet ultra-small connectors mainly adopt legacy connector technology. This type of connector is widely used in DC and AC circuits of various electrical, radio and control instruments. It consists of plugs and sockets, with multi-level key positions for installation. The coupling mode of the connector is bayonet type.

Contact Arrangement

Viewed from the mating face of male pins (No position numbers on actual part)

Drawing

Pin / Shell Size D D1 D2 H
4/10 M18×0.75 24 25.4 17
7/12 M20×0.75 25 27.8 19
10/14 M22×0.75 28 31.2 21
19/18 M24×0.75 31 31.2 23
32/22 M30×0.75 35 37.0 29
50/27 M33×0.75 40 41.6 32



Alternate Rotations

Mating face view of receptacle
Pin / Shell Size Key Position a1 a2 a3 a4
4/10
7/12		 1# 105° 140° 215° 260°
10/14
19/18
32/22
50/27		 1# 90° 135° 205° 260°
2# 105° 140° 215° 260°
3# 115° 145° 210° 250°



Technical Performance

Pin / Shell Size Operating Current (A) Total Current (A)
4/10 3.7 15
7/12 3.1 22
10/14 3.0 30
19/18 2.1 40
32/22 1.8 60
50/27 1.5 75
Shell Size

22
Contact Size

Φ1.0mm
Number of Positions

Connector Type

Contact Type

Male
Shell Material

Aluminum Alloy, anodized
Contact Material

Copper alloy gold/silver plated
Insulator

Bakelite
Maximum current per contact

1.8A
Sum of Currents

60A
Operating Voltage

250
Contact Resistance

≤5MΩ
Insulation Resistance

≥1000MΩ
Number of Insertions and Removals

250
Operating Temperature

-60℃ – +85℃
