OHS Series Bayonet Ultra-Small Connectors

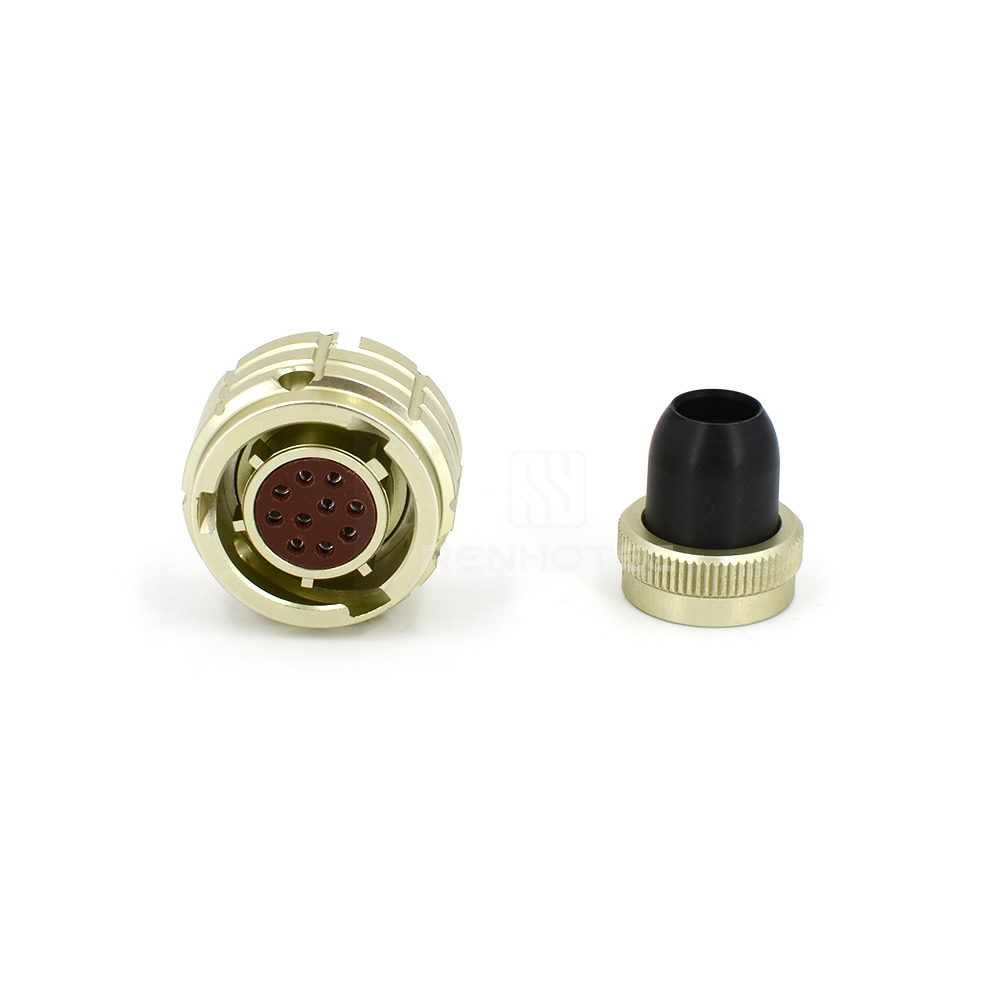

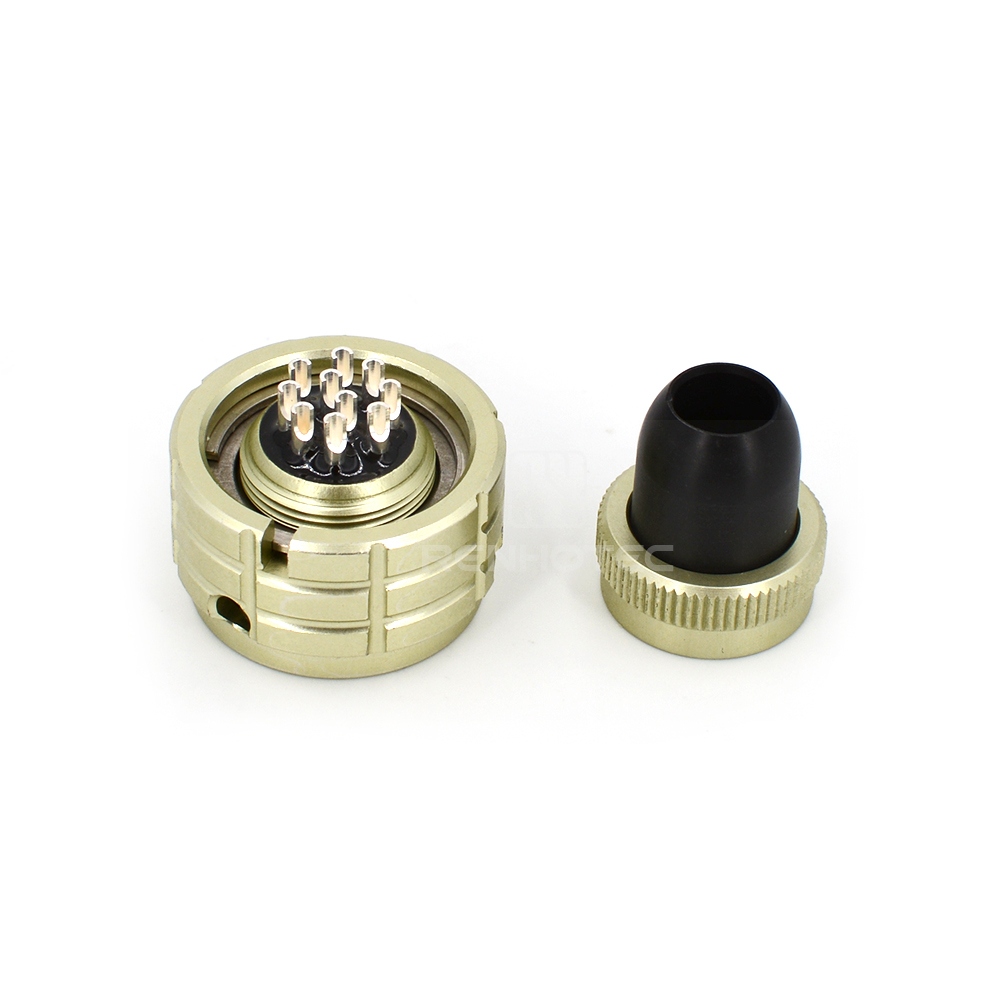

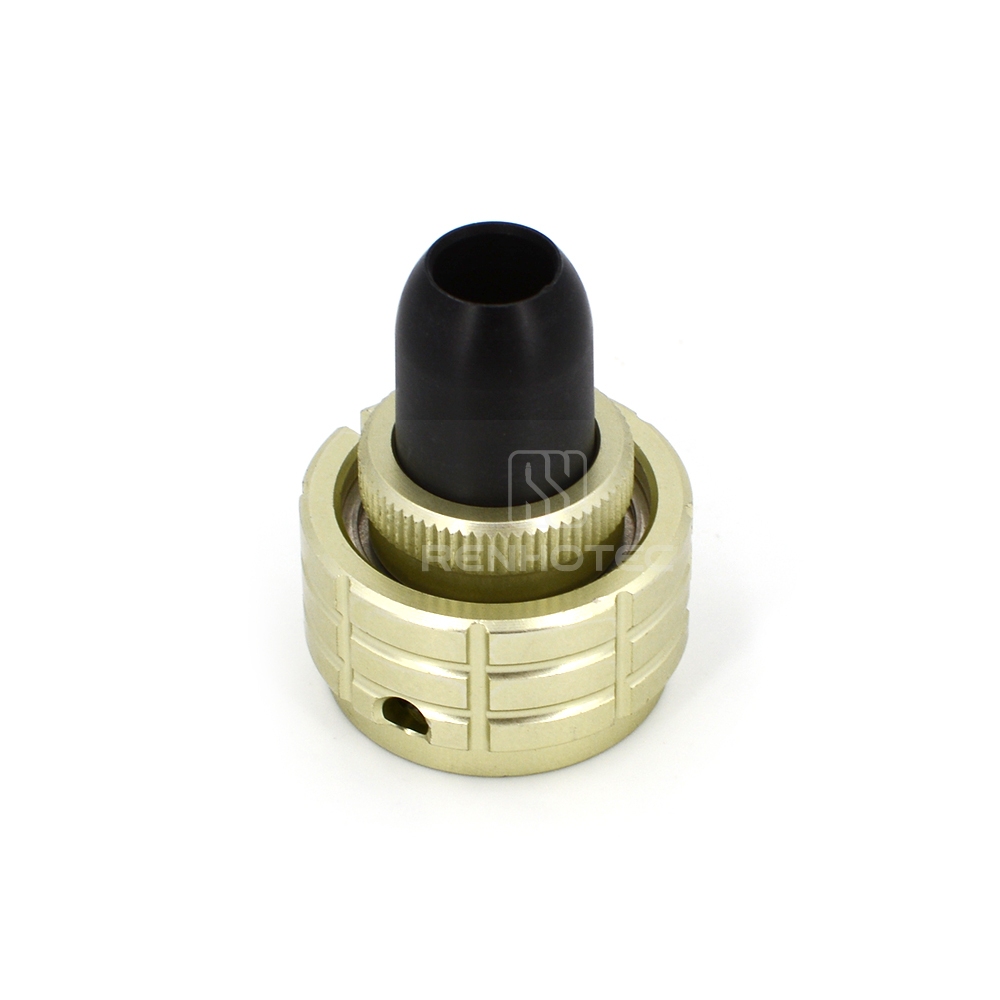

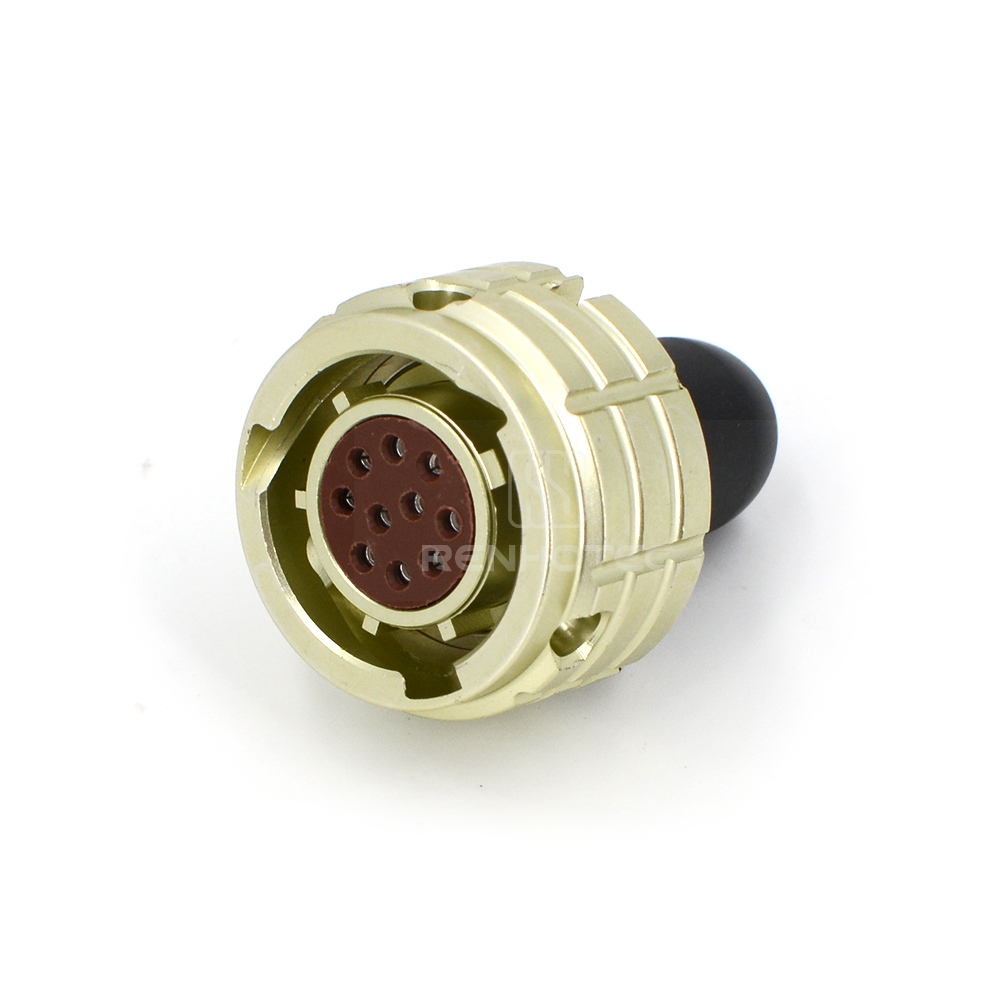

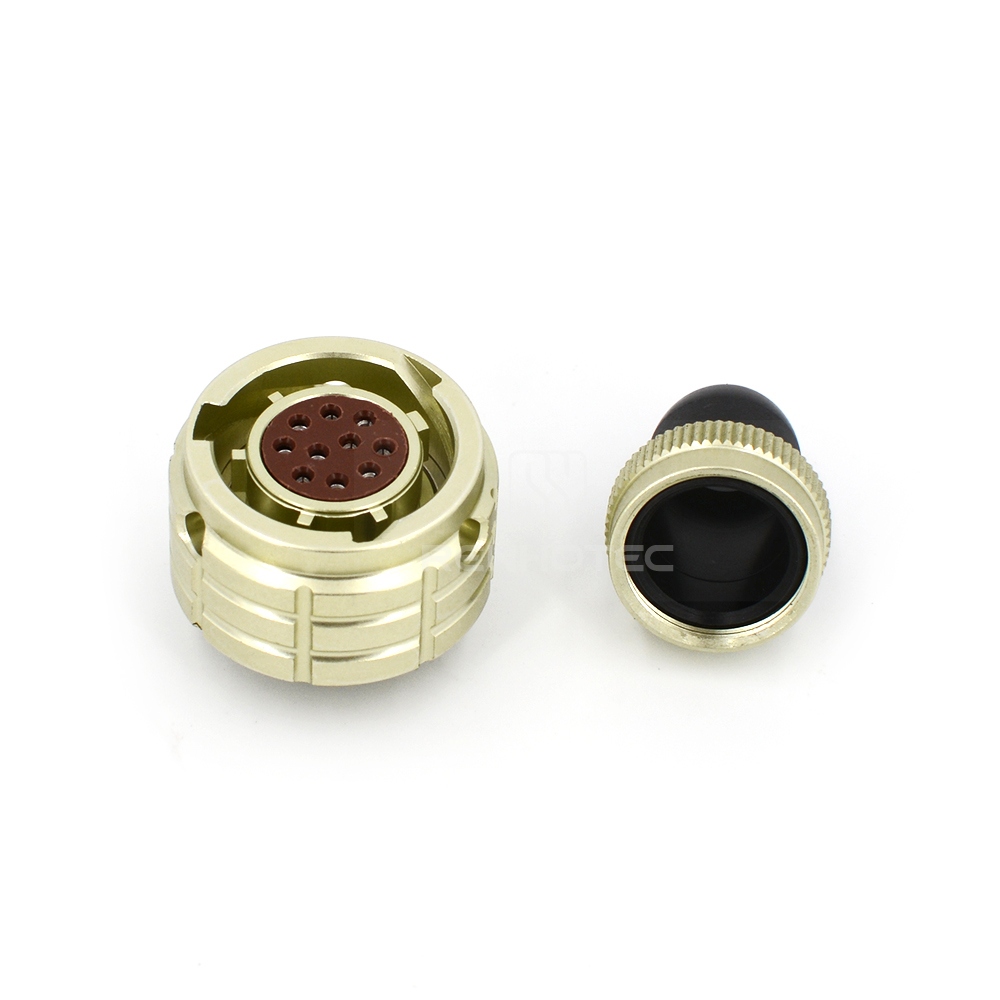

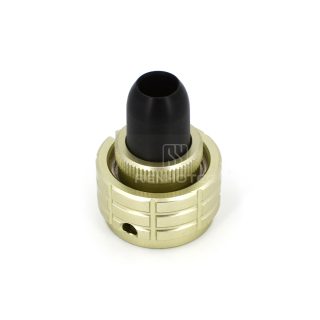

OHS series bayonet ultra-small connectors mainly adopt Russian connector technology. This type of connector is widely used in DC and AC circuits of various electrical, radio and control instruments. It consists of plugs and sockets, with multi-level key positions for installation. The coupling mode of the connector is bayonet type. The socket has no tail attachment and the plug has a straight plastic tail attachment. At the same time, it can be matched and interchanged with the original parts of the Russian ОНЦ-БС-1(2) series.
Appearance and Installation Dimensions
| Shell Size | Size in mm | ||||
| D | d | A | B | b | |
| 10 | 10 | 2.2 | 11.8 | 20 | 1.4 |
| 12 | 12 | 2.2 | 13.2 | 21 | 1.4 |
| 14 | 14 | 2.2 | 15 | 24 | 1.4 |
| 18 | 18 | 2.2 | 18 | 27 | 1.4 |
| 22 | 22 | 2.7 | 21.5 | 31 | 1.8 |
| 27 | 27 | 3.2 | 26 | 36 | 2 |
| Shell Size | Size in mm | |||
| D | d | d1 | Lmax | |
| 10 | 20 | M10*0.75 | 4.5 | 30 |
| 12 | 21 | M12*0.75 | 6 | 31 |
| 14 | 24 | M14*0.75 | 7 | 32 |
| 18 | 27 | M18*0.75 | 9.2 | 33 |
| 22 | 31 | M22*0.75 | 11 | 34 |
| 27 | 36 | M27*0.75 | 13 | 36 |
| Shell Size | 10 | 12 | 14 | 18 |
| Contacts | 4 | 7 | 10 | 19 |
| Pin-out Arrangements |
 |
 |
 |
 |
| Shell Size | 22 | 27 | ||
| Contacts | 32 | 50 | ||
| Pin-out Arrangements |
 |
 |
||
Technical Performance
| Shell Size | Contacts | Maximum current per single contact, A | Total Current(A) | Operating Voltage(A) |
| 10 | 4 | 3.7 | 15 | 250 |
| 12 | 7 | 3.1 | 22 | 250 |
| 14 | 10 | 3.0 | 30 | 250 |
| 18 | 19 | 2.1 | 40 | 250 |
| 22 | 32 | 1.8 | 60 | 250 |
| 27 | 50 | 1.5 | 75 | 250 |
