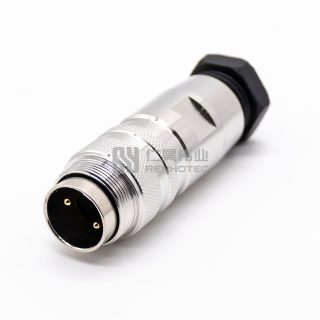

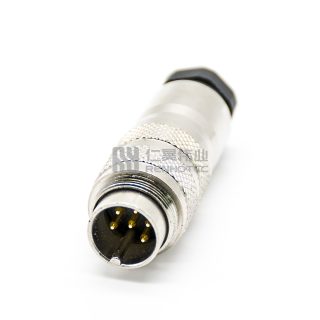

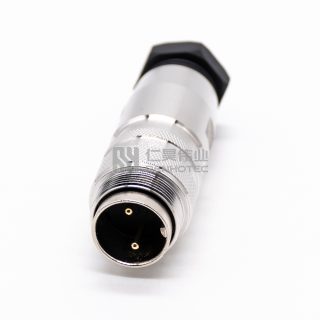

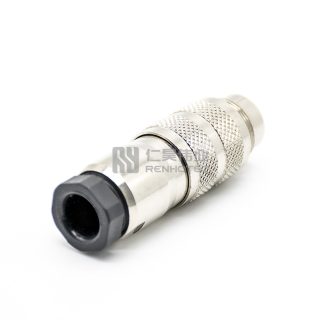

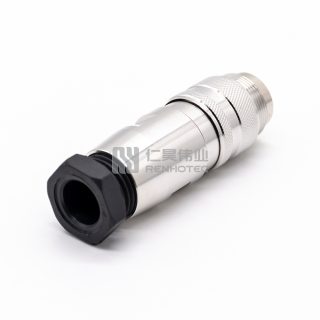

M16 Male Field Wireable Connectors Screw Screw Terminal Mount with Plastic PG

Categories: , ,

High-quality M16 Male Field Wireable Connectors with Screw Terminal Mount, featuring durable plastic PG for secure connections. Ideal for wiring purposes.

Get a Quote

Part Number :

M16A-2PM-AS-S001 M16 Male 2Pin Field Wireable Connectors Screw Screw Terminal Mount with Plastic PG
M16A-3PM-AS-S001 M16 Male 3Pin Field Wireable Connectors Screw Screw Terminal Mount with Plastic PG
M16A-4PM-AS-S001 M16 Male 4Pin Field Wireable Connectors Screw Screw Terminal Mount with Plastic PG
M16A-5PM-AS-S001 M16 Male 5Pin Field Wireable Connectors Screw Screw Terminal Mount with Plastic PG
M16A-6PM-AS-S001 M16 Male 6Pin Field Wireable Connectors Screw Screw Terminal Mount with Plastic PG
M16A-7PM-AS-S001 M16 Male 7Pin Field Wireable Connectors Screw Screw Terminal Mount with Plastic PG
M16A-8PM-AS-S001 M16 Male 8Pin Field Wireable Connectors Screw Screw Terminal Mount with Plastic PG
M16A-12PM-AS-S001 M16 Male 12Pin Field Wireable Connectors Screw Screw Terminal Mount with Plastic PG
M16A-14PM-AS-S001 M16 Male 14Pin Field Wireable Connectors Screw Screw Terminal Mount with Plastic PG
M16A-15PM-AS-S001 M16 Male 15Pin Field Wireable Connectors Screw Screw Terminal Mount with Plastic PG
M16A-19PM-AS-S001 M16 Male 19Pin Field Wireable Connectors Screw Screw Terminal Mount with Plastic PG
M16A-24PM-AS-S001 M16 Male 24Pin Field Wireable Connectors Screw Screw Terminal Mount with Plastic PG


M16 connectors are a standardized type of industrial connector that derives its name from the 16 mm diameter of the thread between its plug and socket. They are widely used in industrial, mechanical, electronic and automotive applications to provide reliable electrical connections and are durable, waterproof, dustproof and vibration-resistant for a wide range of harsh operating conditions.M16 connectors are available in a wide range of configurations and features, and can be selected according to different needs.

M16 Connector Electrical Parameters

Pins General coding A-code Ratedcurrent Rated voltage Conductor size
A/C D/C AWG mm²
2 Image 7A 250V 32V 20 0.75
3 Image 7A 250V 32V 20 0.75
4 Image 6A 250V 32V 20 0.75
5 Image Image 6A 250V 125V 20 0.75
6 Image 5A 250V 32V 20 0.75
7 Image Image 5A 125V 32V 20 0.75
8 Image 5A 60V 32V 20 0.75
12 Image 3A 60V 32V 24 0.25
14 Image Image 3A 60V 32V 24 0.25
16 Image 3A 60V 32V 24 0.25
19 Image 3A 60V 32V 24 0.25
24 Image 1A 60V 32V 26 0.14


M16 Panel Mount Connectors Installation

Front Fastened

Back Fastened

Flange

M16 Field Wireable Connectors Type

Straight Metal PG

Straight Plastic PG

Right Angle

Applications

M16 connectors have a wide range of applications in various fields, including industrial automation, machinery and equipment, robotics, process control, and sensor and actuator connections.

Connector Type

Plug
Orientation

Straight
Contact Type

Male
Number of Positions

2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin, 7 Pin, 8 Pin, 12 Pin, 14 Pin, 19 Pin, 24 Pin
Shell Size

M16
Fastening Type

Threaded
Mounting Type

Cable Type
Contact Termination

Screw Terminal
Shell Material

Copper Alloy
Shell Finish

Zinc Plating
Contact Material

Copper Alloy
Contact Finish

Gold
Ingress Protection

IP67
Shielding

Shielded
Rated Current

3A, 5A, 6A, 7A
Rated Voltage

60V, 250V
Operating Temperature

-25℃ – +85℃

Recommanded Picks for You

Quick View

M Series

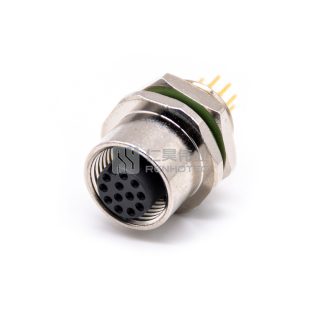

M12 Panel Mount Connectors Female Socket Through Holer Back Fastened (M16*1.5)

Quick View

M Series

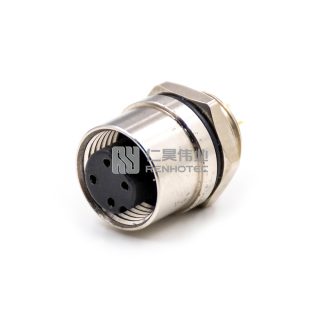

M12 Panel Mount Connectors Female Socket Solder Back Fastened(M12*1)
