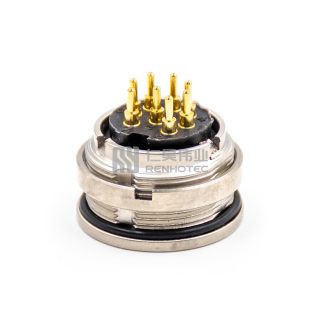

M16 Female Receptacle Bulkhead – Back Side Nut Through Hole Mount

Categories: , ,

High-quality M16 Female Receptacle Bulkhead with Back Side Nut Through Hole Mount. Perfect for secure and reliable connections in various applications.

Get a Quote

Part Number :

M16A-2SF-PN-R002 M16 Female 2Pin Receptacle Bulkhead – Back Side Nut Through Hole Mount
M16A-3SF-PN-R002 M16 Female 3Pin Receptacle Bulkhead – Back Side Nut Through Hole Mount
M16A-4SF-PN-R002 M16 Female 4Pin Receptacle Bulkhead – Back Side Nut Through Hole Mount
M16A-5SF-PN-R002 M16 Female 5Pin Receptacle Bulkhead – Back Side Nut Through Hole Mount
M16A-6SF-PN-R002 M16 Female 6Pin Receptacle Bulkhead – Back Side Nut Through Hole Mount
M16A-7SF-PN-R002 M16 Female 7Pin Receptacle Bulkhead – Back Side Nut Through Hole Mount
M16A-8SF-PN-R002 M16 Female 8Pin Receptacle Bulkhead – Back Side Nut Through Hole Mount
M16A-12SF-PN-R002 M16 Female 12Pin Receptacle Bulkhead – Back Side Nut Through Hole Mount
M16A-14SF-PN-R002 M16 Female 14Pin Receptacle Bulkhead – Back Side Nut Through Hole Mount
M16A-15SF-PN-R002 M16 Female 15Pin Receptacle Bulkhead – Back Side Nut Through Hole Mount
M16A-19SF-PN-R002 M16 Female 19Pin Receptacle Bulkhead – Back Side Nut Through Hole Mount
M16A-24SF-PN-R002 M16 Female 24Pin Receptacle Bulkhead – Back Side Nut Through Hole Mount


M16 connectors are a standardized type of industrial connector that derives its name from the 16 mm diameter of the thread between its plug and socket. They are widely used in industrial, mechanical, electronic and automotive applications to provide reliable electrical connections and are durable, waterproof, dustproof and vibration-resistant for a wide range of harsh operating conditions.M16 connectors are available in a wide range of configurations and features, and can be selected according to different needs.

M16 Connector Electrical Parameters

Pins General coding A-code Ratedcurrent Rated voltage Conductor size
A/C D/C AWG mm²
2 Image 7A 250V 32V 20 0.75
3 Image 7A 250V 32V 20 0.75
4 Image 6A 250V 32V 20 0.75
5 Image Image 6A 250V 125V 20 0.75
6 Image 5A 250V 32V 20 0.75
7 Image Image 5A 125V 32V 20 0.75
8 Image 5A 60V 32V 20 0.75
12 Image 3A 60V 32V 24 0.25
14 Image Image 3A 60V 32V 24 0.25
16 Image 3A 60V 32V 24 0.25
19 Image 3A 60V 32V 24 0.25
24 Image 1A 60V 32V 26 0.14


M16 Panel Mount Connectors Installation

Front Fastened

Back Fastened

Flange

M16 Field Wireable Connectors Type

Straight Metal PG

Straight Plastic PG

Right Angle

Applications

M16 connectors have a wide range of applications in various fields, including industrial automation, machinery and equipment, robotics, process control, and sensor and actuator connections.

Connector Type

Receptacle
Orientation

Straight
Contact Type

Female
Number of Positions

2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin, 7 Pin, 8 Pin, 12 Pin, 14 Pin, 19 Pin, 24 Pin
Shell Size

M16
Fastening Type

Threaded
Mounting Type

Panel Mount
Mounting Feature

Bulkhead – Back Side Nut
Contact Termination

Through Hole
Shell Material

Copper Alloy
Shell Finish

Zinc Plating
Contact Material

Copper Alloy
Contact Finish

Gold
Ingress Protection

IP67
Shielding

Unshielded
Rated Current

3A, 5A, 6A, 7A
Rated Voltage

60V, 125V, 250V
Operating Temperature

-25℃ – +85℃
