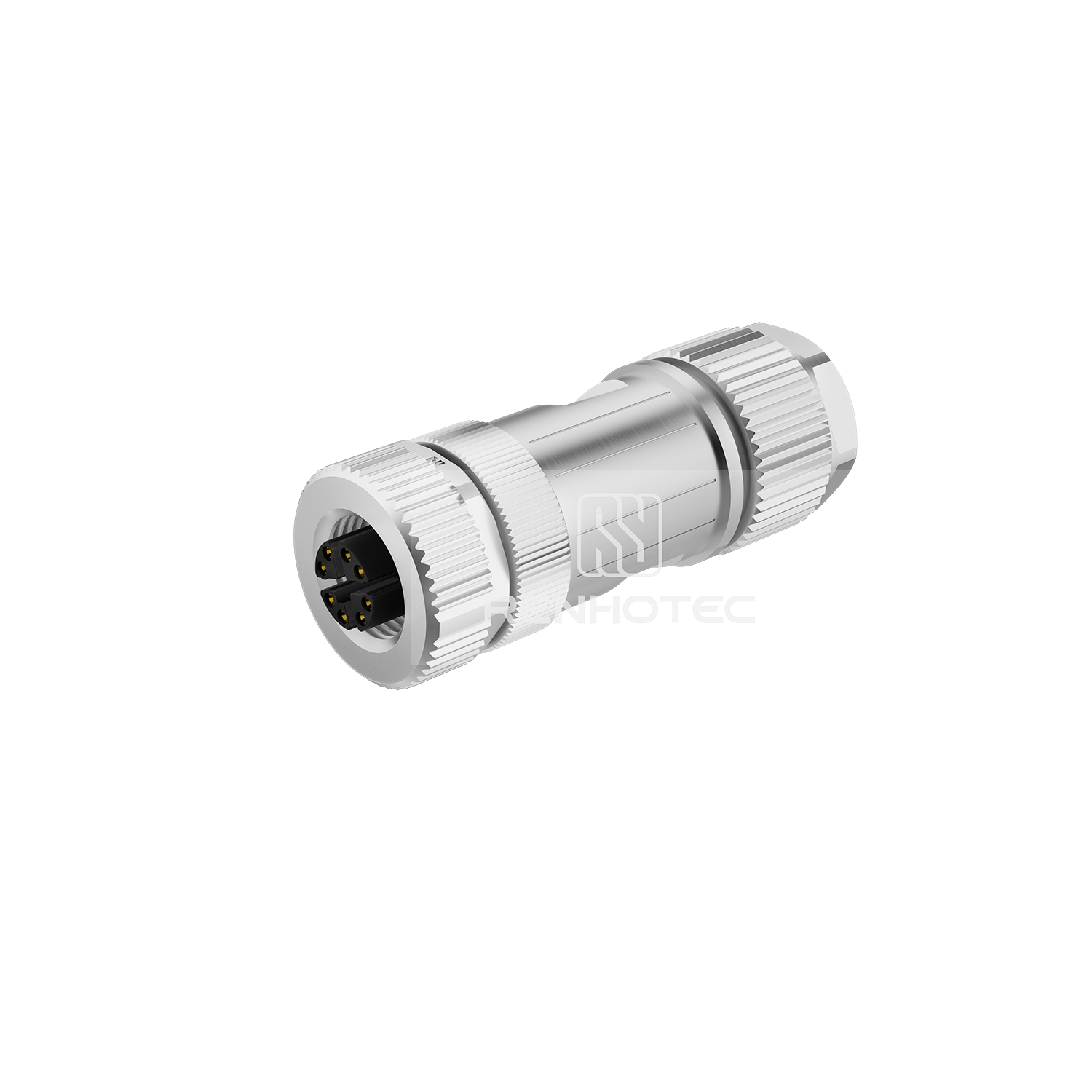

M12 Field Assembly Connector, Crimp, Straight, Female

M12 Field Assembly Connector, Crimp, Straight, Female

SKU: RHT-634-3314-8X Categories: , ,
Get a Quote
Key

X
Number of Positions

Contact Type

Female
Orientation

Body Material

Nickel Plated, ZInc Alloy
Screw Nut Material

Brass, Nickel Plated
Contact Finish

Gold
Contact Material

Brass
Contact Termination

Crimp
Insulation Material

PA66+GF
Wire Gauge

24AWG/0.25mm2
Seal

Black, NBR
Shielding

Shielded
Protection Rating

IP67 (Mated)
Rated Current

0.5A
Rated Voltage

48V
Contact Resistance

≤5MΩ
Insulation Resistance

≥100MΩ
Mating Cycles

≥500
Temperature range

-25℃ ~ +80℃
