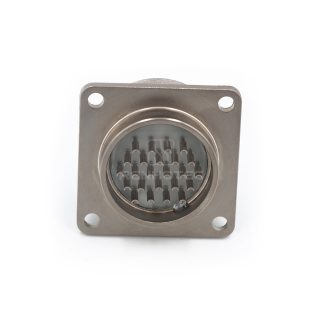

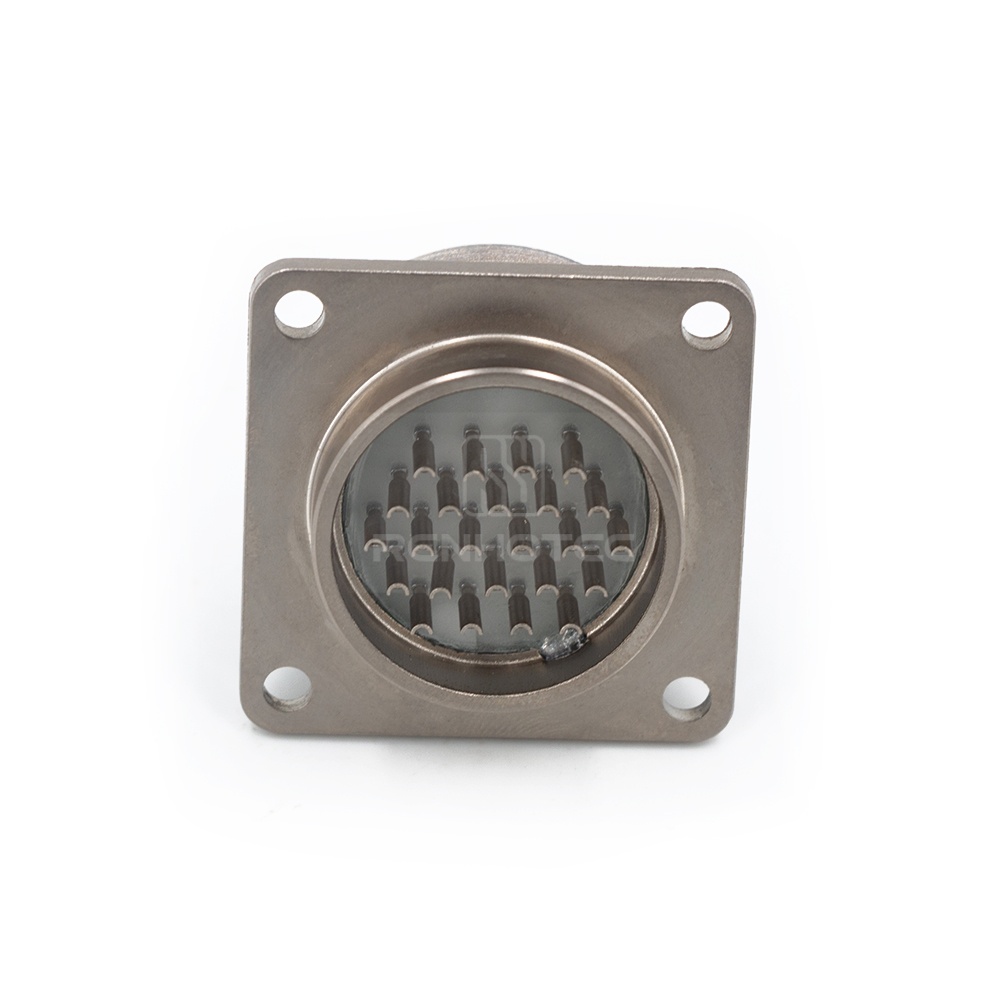

2РМГД30Б24Ш5Е2 2PM Russian Connector Shell Size 30 24 Pin Flange Male Socket, Sealed Type, Threaded Back End

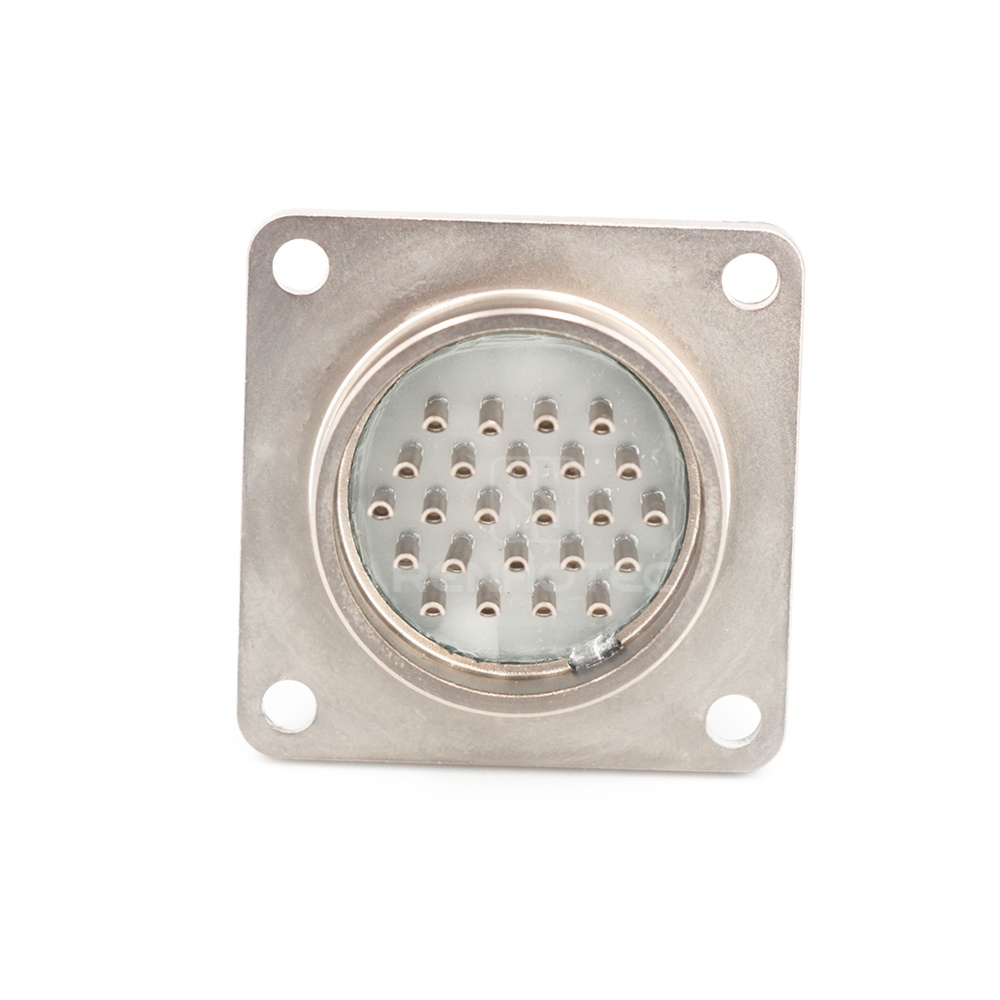

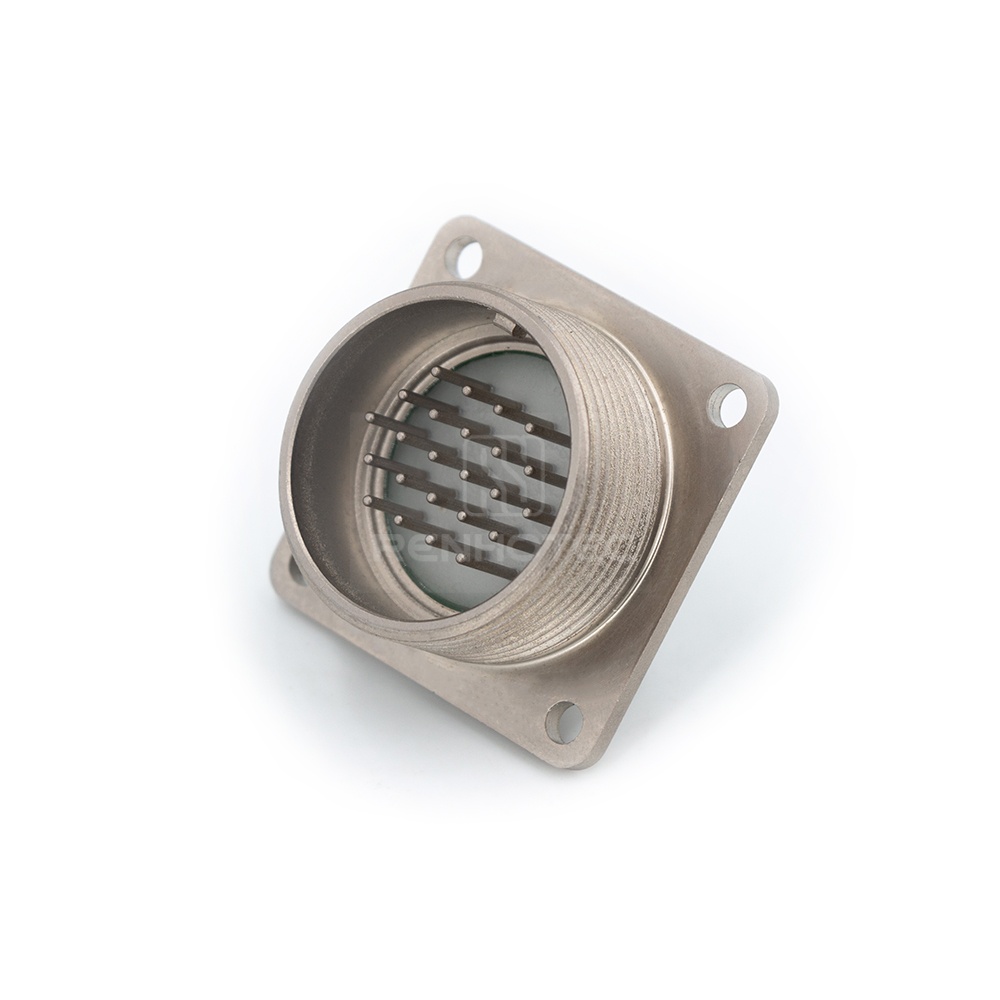

2РМГД30Б24Ш5Е2 2PM Russian Connector Shell Size 30 24 Pin Flange Male Socket, Sealed Type, Threaded Back End - Image 2

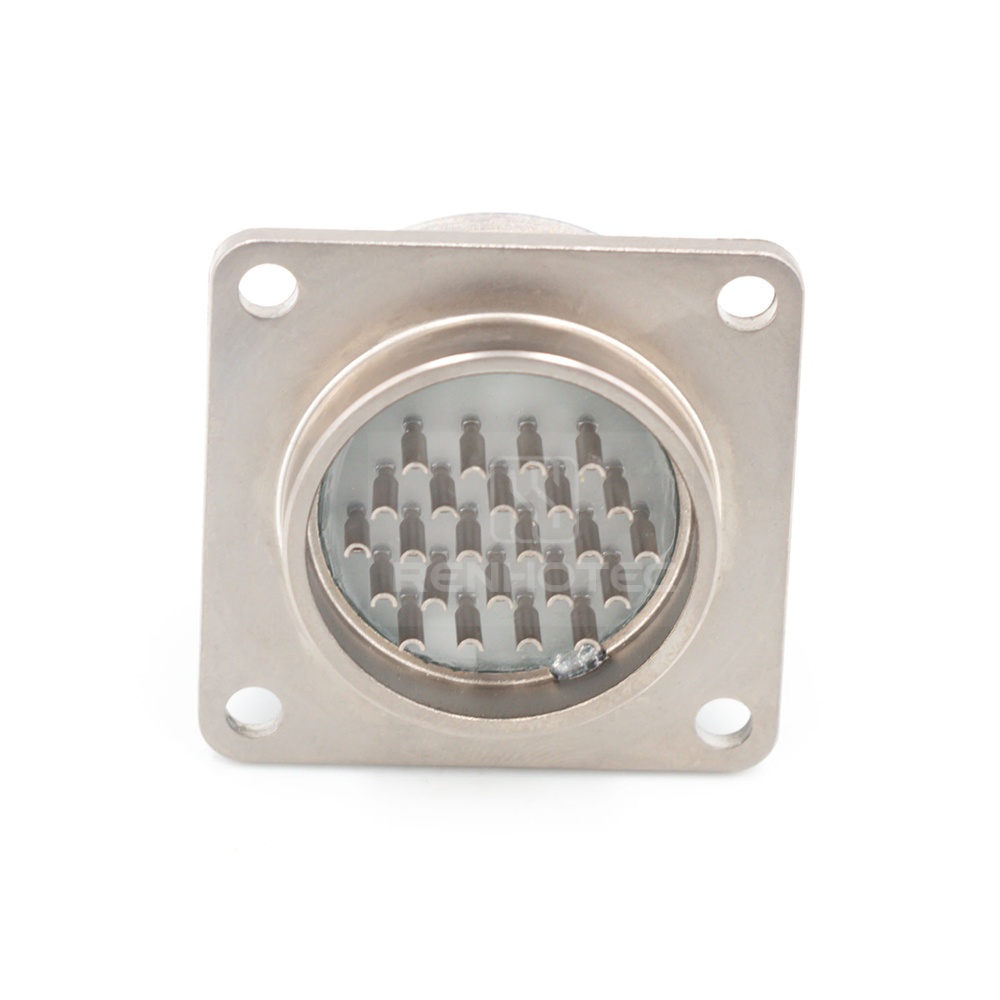

2РМГД30Б24Ш5Е2 2PM Russian Connector Shell Size 30 24 Pin Flange Male Socket, Sealed Type, Threaded Back End - Image 3

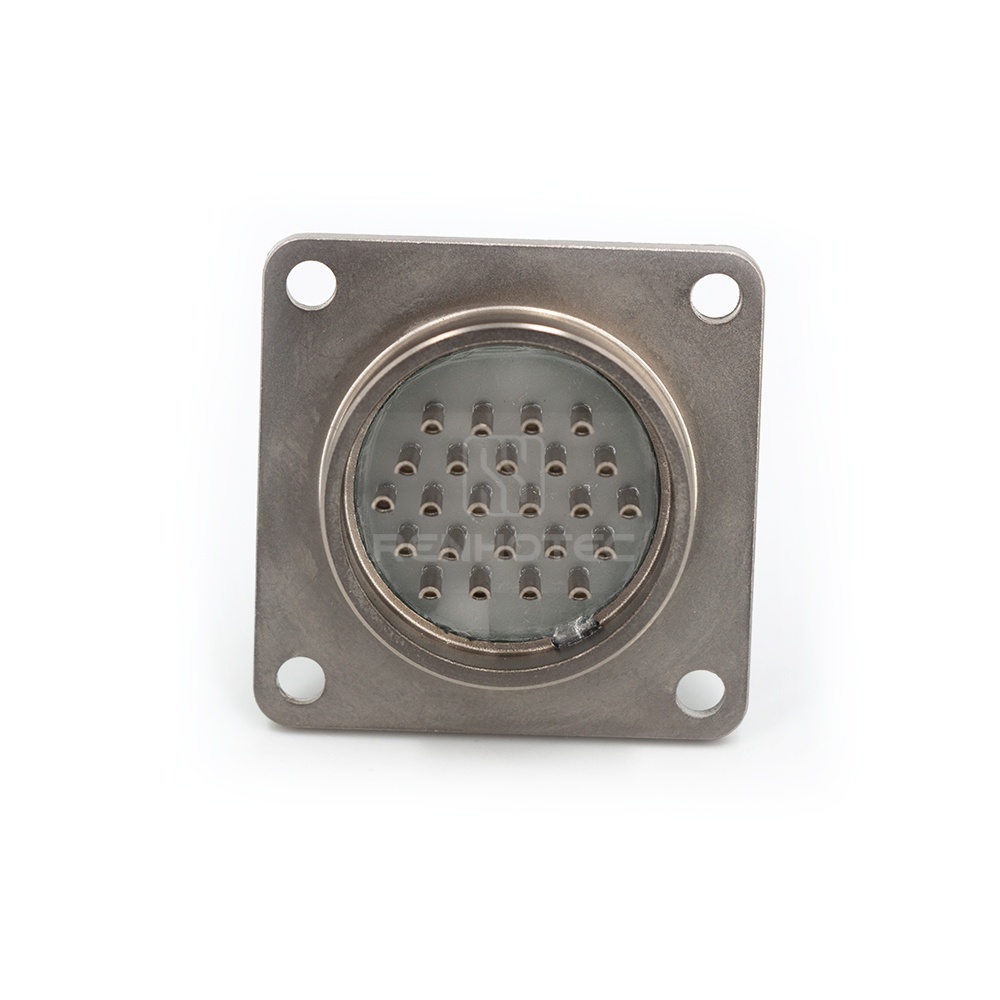

2РМГД30Б24Ш5Е2 2PM Russian Connector Shell Size 30 24 Pin Flange Male Socket, Sealed Type, Threaded Back End - Image 4
2РМГД30Б24Ш5Е2 2PM Russian Connector Shell Size 30 24 Pin Flange Male Socket, Sealed Type, Threaded Back End - Image 5

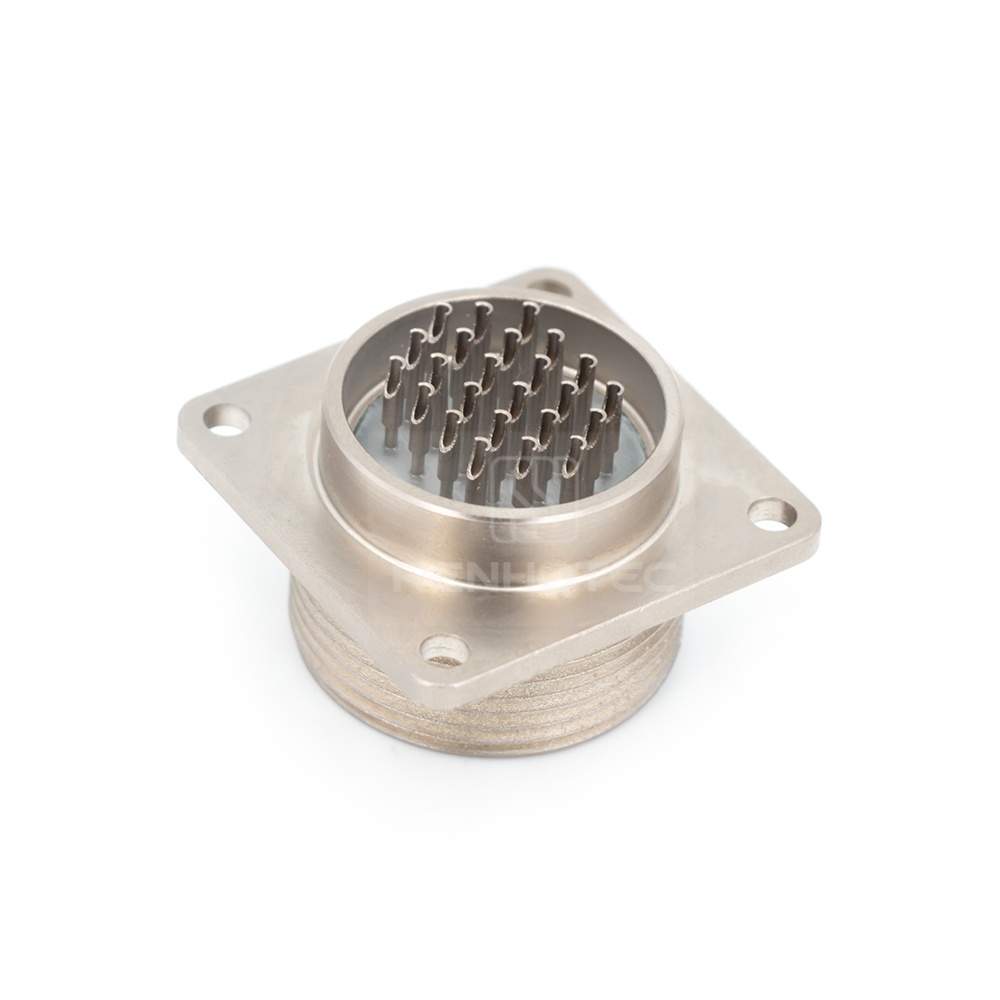

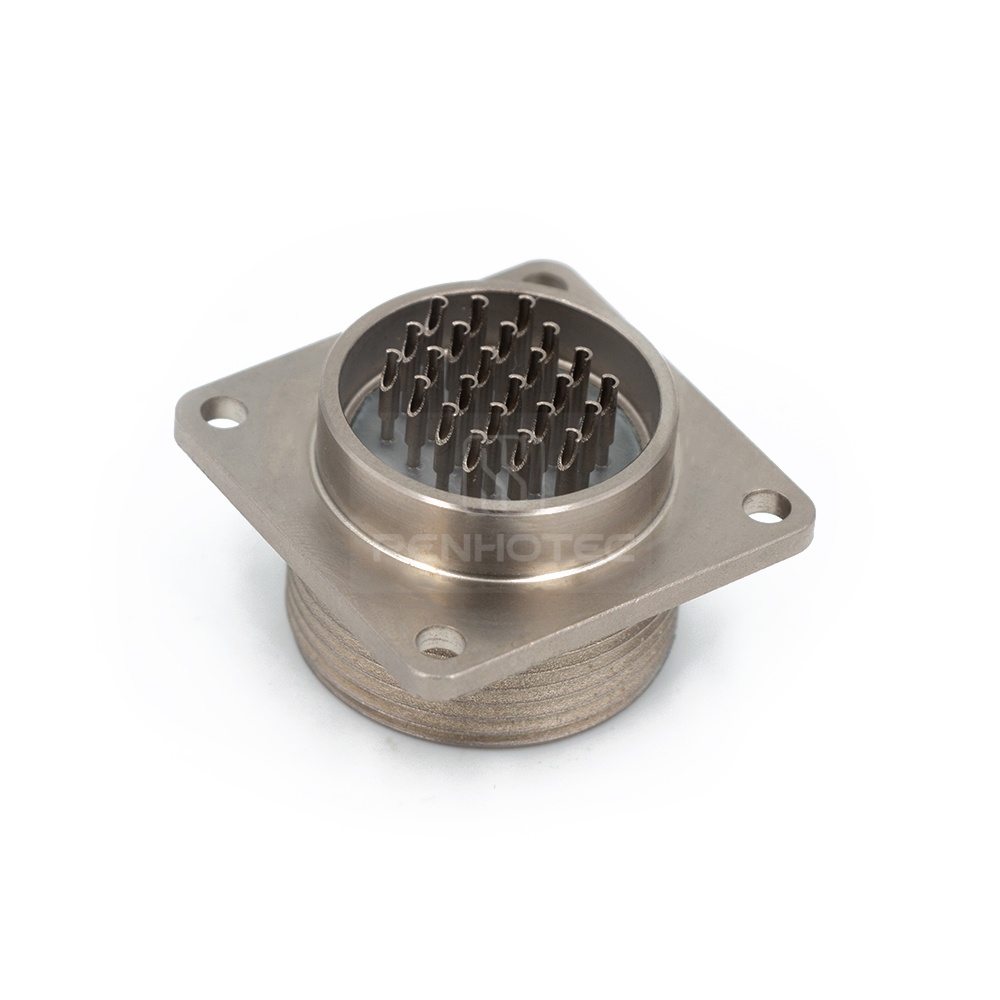

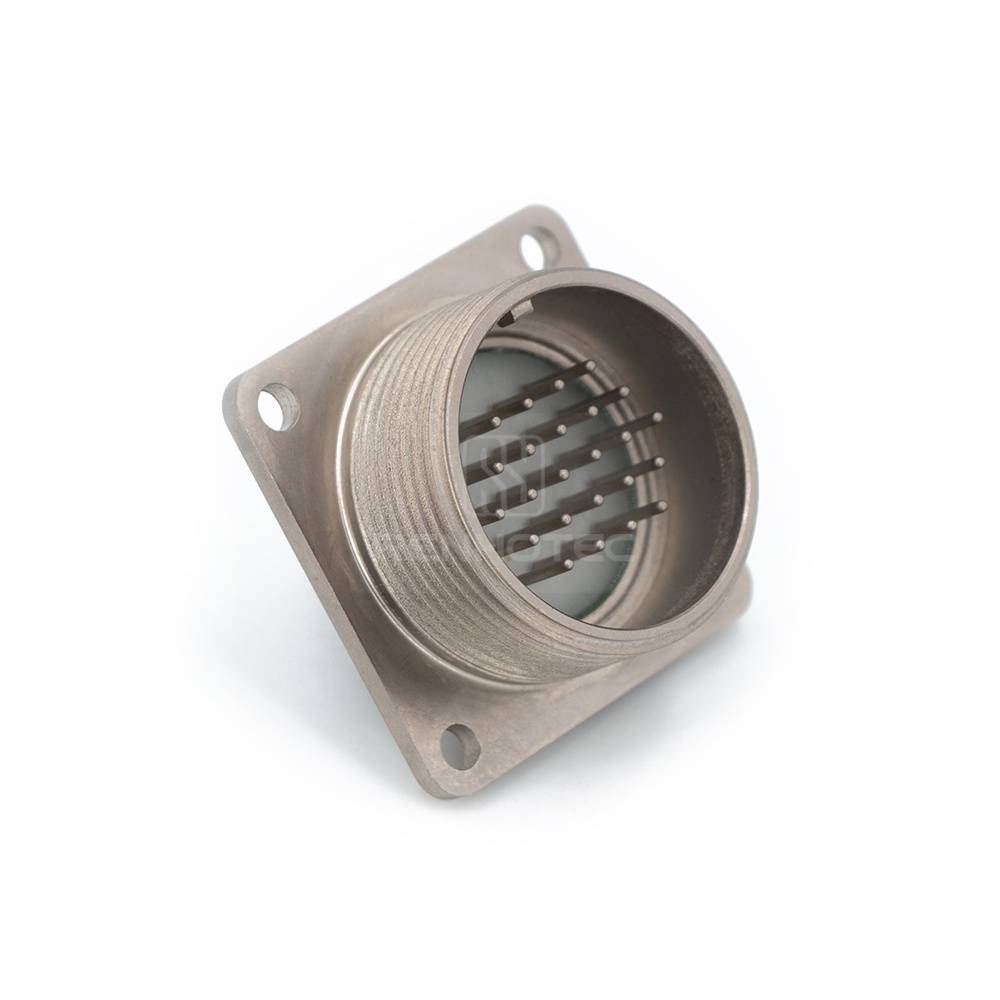

2РМГД30Б24Ш5Е2 2PM Russian Connector Shell Size 30 24 Pin Flange Male Socket, Sealed Type, Threaded Back End

SKU: 2PM30J24M3 Categories: ,
Get a Quote

Russian 2PM Series Circular Connectors, Sealed Type

2PM series circular electrical connectors mainly adopt Russian connector technology. It is widely used for electrical connection and signal transmission between electrical equipment in railway system, trams and trolley bus etc. Its unique structure can make up for the shortcomings of many other similar connectors, making it more convenient and scientific to use. The cable plug and panel socket are threaded connection.

The panel socket has a glass sintered sealed socket (M) and a glass sintered sealed wall socket (C), which can simultaneously meet the use requirements in special environments such as vacuum, sealing, and high temperature. Now there are mainly 2PM14/18/22/24 /27/30/33/36 and other specifications, its special structure and performance have won the general recognition of the market. At the same time, it can be matched and interchanged with original parts of Russian 2РМГ、2РМГД series.

Russian 2PM Series Sealed Type Circular Connector-2
Russian 2PM Series Sealed Type Circular Connector-1
Russian 2PM Series Sealed Type Circular Connector-3

Contact Layout Diagrams for 2PM

English P/N

2RMGD30B24Sh5E2
Russian P/N

2РМГД30Б24Ш5Е2
Connector Type

Orientation

Gender

Male
Shell Size

2PM 30
Number of Positions

Contact Termination

Solder
Fastening Type

Durability

500
Shell Material

Stainless Steel
Contact Material

Copper with nickel-plated
Insulation Material

Glass sintered
Rated Current

5-30A
Rated Voltage

≤700V
Operating Temperature

-60℃ – +200℃
2PM 22 K(J) 4 Z/M/C
Q/W		 A/B 1/2/3
Series
Shell Slze: 2PM14/18 22/24/27/30/33/36/39/42/45
K: Female J: Male
Number of Contacts
Z: Non-sealed standard 4-pin flange plug
M: Sealed 4-pin flange socket
C: Sealed Bulkhead receptacle
Q: Straight cable plug
W: Angled cable plug
A: Shielded tail attachment, B: Unshielded tail attachment
1: Gold plated pin, 2: Silver plated pin, 3: Nickel plated pins
