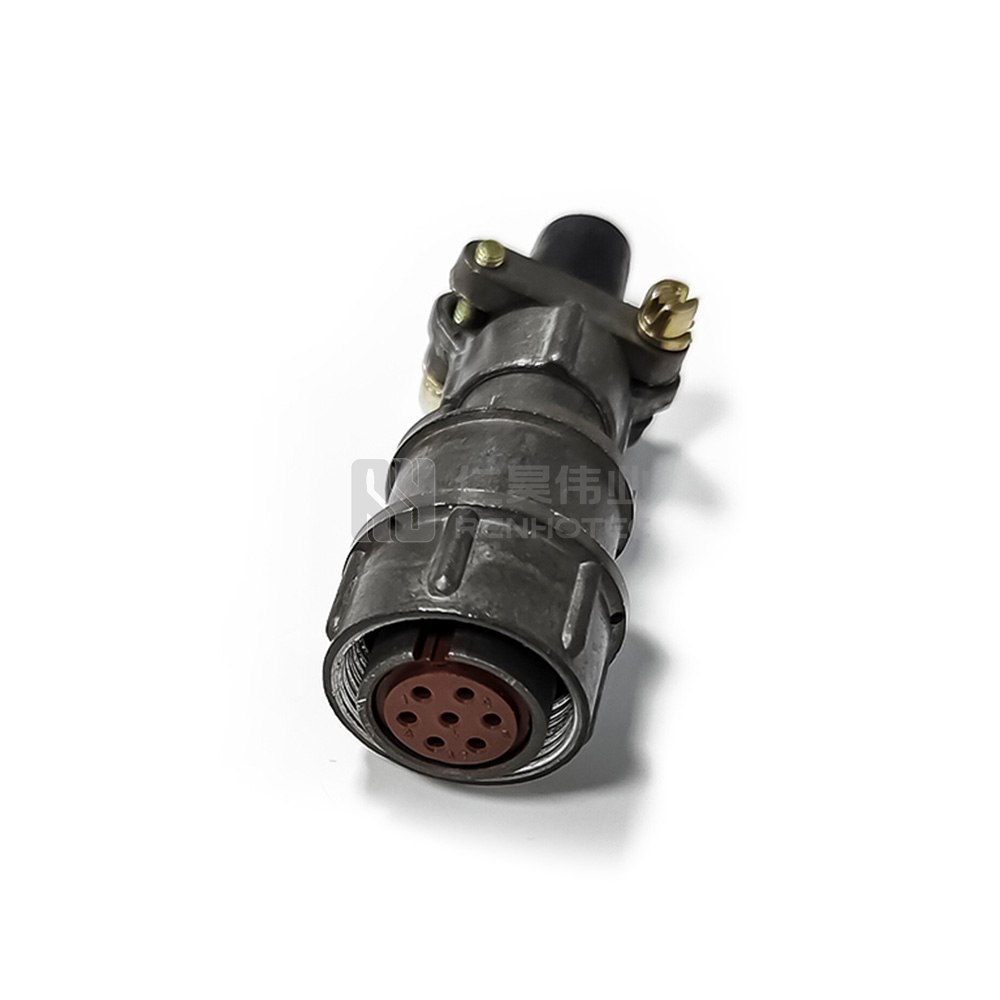

2PM-18 Series 7Pin Female Straight Cable Plug – 2РМТ18КПН7Г1А1B

SKU: 2PM18K7QB1 Categories: , Tag:

Универсальный 7-контактный разъем для кабеля с прямым штекером женского типа серии 2PM-18.

Get a Quote

About Russian Standard 2PM Series Connectors

2PM series circular electrical connectors mainly adopt Russian connector technology. It is widely used for electrical connection and signal transmission between electrical equipment. Its unique structure can make up for the shortcomings of many other similar connectors, making it more convenient and scientific to use. The cable plug and panel socket are threaded connection. The panel socket has a glass sintered sealed socket (M) and a glass sintered sealed wall socket (C), which can simultaneously meet the use requirements in special environments such as vacuum, sealing, and high temperature. At the same time, it can be matched and interchanged with original parts of Russian 2PMT and 2РМДТ series.

How to Choose

2PM14

2PM18

2PM22

2PM24

2PM27

2PM30

Dimensions

Shell Size 14 18 22 24 27 30 33 36 39 42 45
A 17 20 23 26 29 31 32 35 37 40 43
B 24 27 30 33 36 38 40 43 46 49 52
C (LH)Thread M14*1.0 M18*1.0 M22*1.0 M24*1.0 M27*1.0 M30*1.0 M33*1.0 M38*1.0 M39*1.0 M42*1.0 M45*1.0
D (RH)Thread M16*1.0 M20*1.0 M24*1.0 M27*1.5 M30*1.5 M33*1.5 M36*1.5 M39*1.5 M39*1.5 M45*1.5 M48*1.5


For connectors with ø1.0 and ø1.5mm contacts dimension L=26.00 max.

For connectors with ø2.0 and ø3mm contacts dimension L=28.00 max.

Shell Size 14 18 22 24 27 30 33 36 39 42 45
A Max 22 25 29 32 35 39 42 45 48 51 54
B (Min) Cable Entry Dia 6.5 10.50 14.50 16.50 18.50 20.50 23.00 23.00 24.50 30.50 30.50
C (RH)Thread M16*1.0 M20*1.0 M24*1.0 M27*1.5 M30*1.5 M33*1.5 M36*1.5 M39*1.5 M39*1.5 M45*1.5 M48*1.5
L Max 53.50 53.50 56 62.50 62.50 62.50 57.50 67.50 67.50 67.50 67.50


Shell Size 14 18 22 24 27 30 33 36 39 42 45
A Max 22 25 29 32 35 39 47 45 48 51 54
B (Min) Cable Entry Dia 6.5 10.50 14.50 16.50 18.50 20.50 23.00 23.00 24.50 30.50 30.50
C (RH)Thread M16*1.0 M20*1.0 M24*1.0 M27*1.5 M30*1.5 M33*1.5 M36*1.5 M39*1.5 M39*1.5 M45*1.5 M48*1.5
L Max 51.5 58 62 64 67 71 71 71 74 81 88
H Max 37.5 41 47.5 50 53.5 57.5 50.5 63.5 56.5 69.5 72.5


Connector Type

Plug
Shell Size

2PM 18
Orientation

Straight
Number of Positions

7 Pin
Combination No.

1
Contact Size

Φ1.0
Shell Material

Aluminum Alloy (die-cast aluminum, surface oxidation treatment)
Contact Finish

Silver/Gold
Fastening Type

Threaded
Rated Current

5A
Rated Voltage

≤700V (AC)
Operating Temperature

-60℃ – +200℃
Insulation Resistance

Normal ≥1000MΩ Moistheat ≥20MΩ
Contact Resistance

0.8-5MΩ

2PM can be matched and interchanged with the original parts of the Russian 2PMT and 2РМДТ series, that is to say, it is the version of the Russian 2PMT and 2РМДТ series in China.

Price:
Yes, for 2PM14-4Pin connectors, price: 11 RMB - 15RMB.
If you have good quantity, contact us for negoniation.
Samples:
We always support samples before mass order for our customers.
Lead Time:
For sample: 7-10 days after payment received
For mass order: Usually 2-3 weeks after payment received(It depends on the actural model number)

Yes, of course. We could custom any models for 2PM connectors for you.
Please share how many pieces needed and we will give you a best price solution within 24 hours.

Shell Material: Aluminum alloy (die-cast aluminum, surface oxidation treatment)
Contact Material: Copper with silver/gold plated
Insulater: Bakelite/PBT

Operating temperature: -60℃ - +200℃

Of course, we have complete models of 2PM series, 2PM33-32 is our hot-selling model.
How many pieces do you need? Contact us and will check stock for you right now.

We support TT/Paypal/Credit card and so on.
In addition, if you have agent in China, we also support your agent contact us to pay directly.

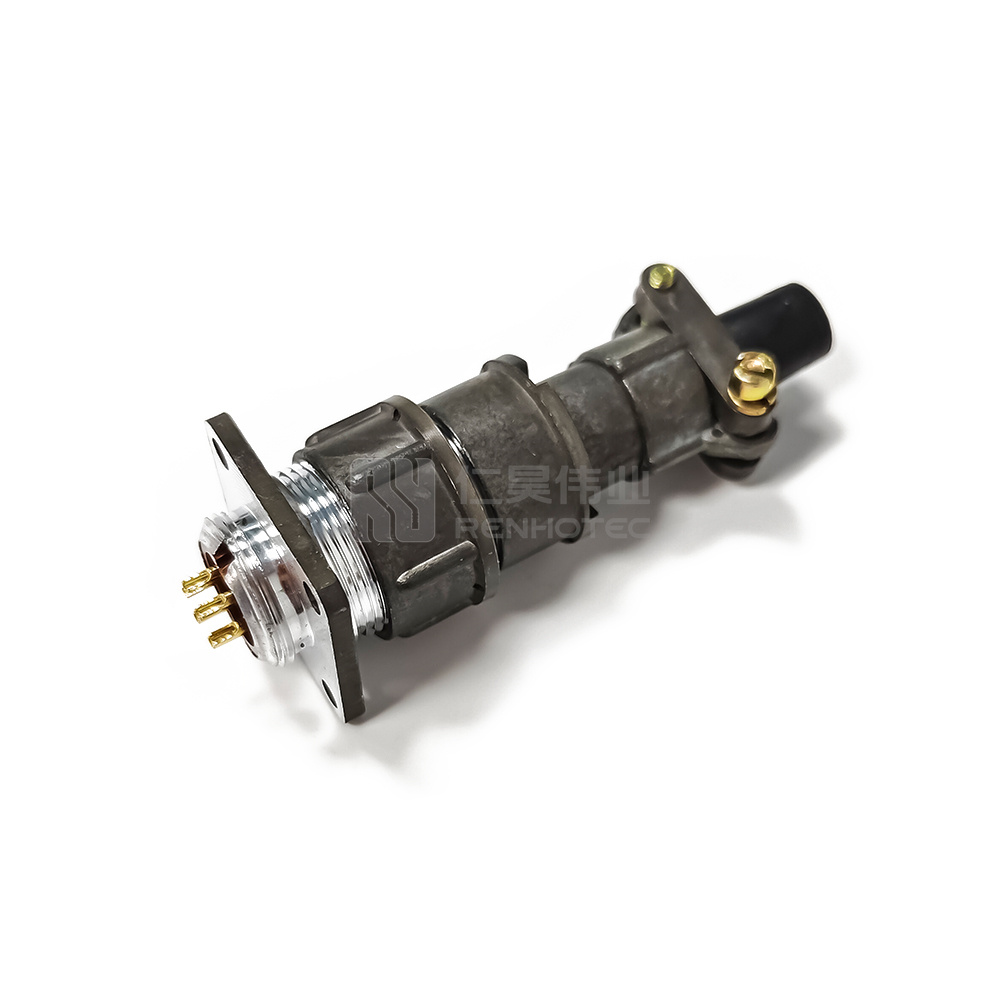

Let me tell you the difference with 2 pictures.

2PM Series Catalog - RenhotecDownload
2PM 14 K 4 Q A 2
Shell Slze: 2PM14/18 22/24/27/30/33/36/39/42/45
K: Female J: Male
Number of contacts: 4/7/8/10/19/20/22/24/32...
Q: Straight cable plug,  W: Angled cable plug, Z:Flange receptacle, M: Sealed Flange receptacle, C:Sealed Bulkhead receptacle
A: Shielded tail attachment, B: Unshielded tail attachment
1: Gold plated pin, 2: Silver plated pin
