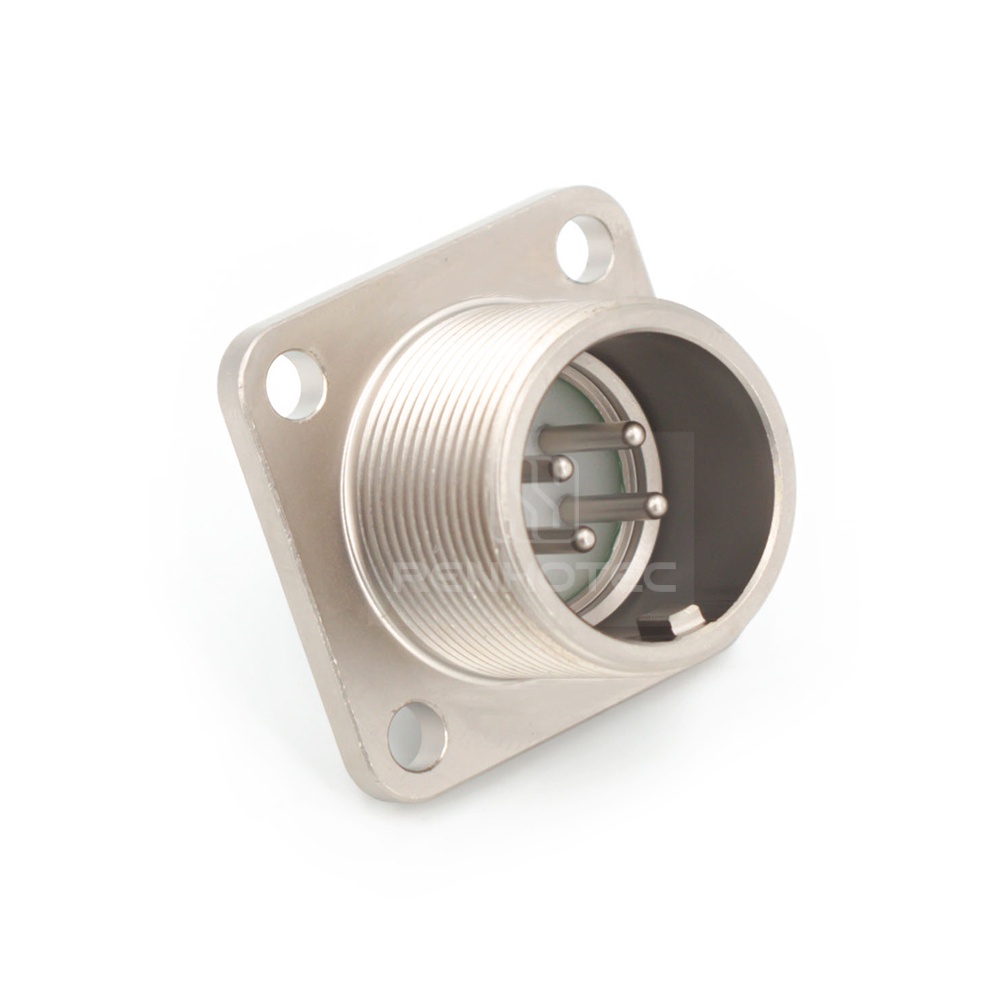

2РМГД18БПН4Ш5Е2 2PM Connector Shell Size 18 4 Pin Flange Male Socket, Sealed Type, With non-shielded Straight Back Shell

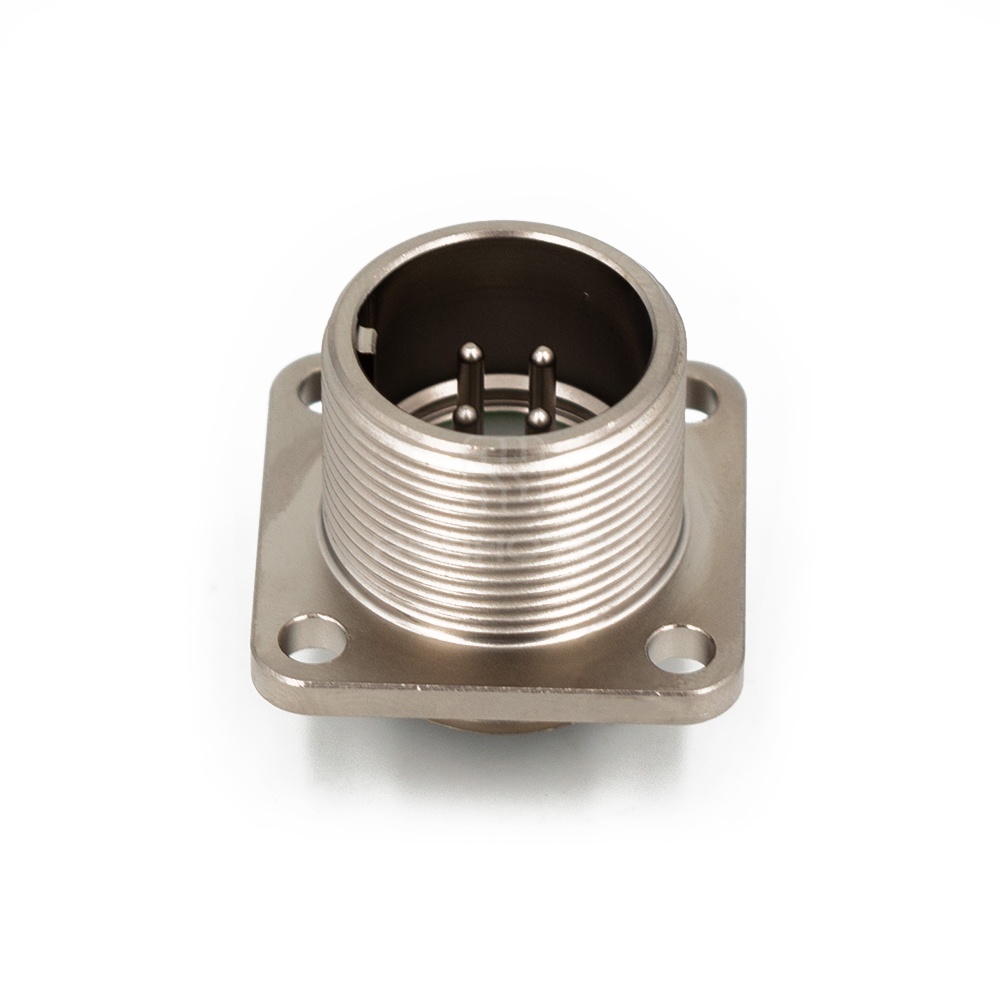

2РМГД18БПН4Ш5Е2 2PM Connector Shell Size 18 4 Pin Flange Male Socket, Sealed Type, With non-shielded Straight Back Shell - Image 2

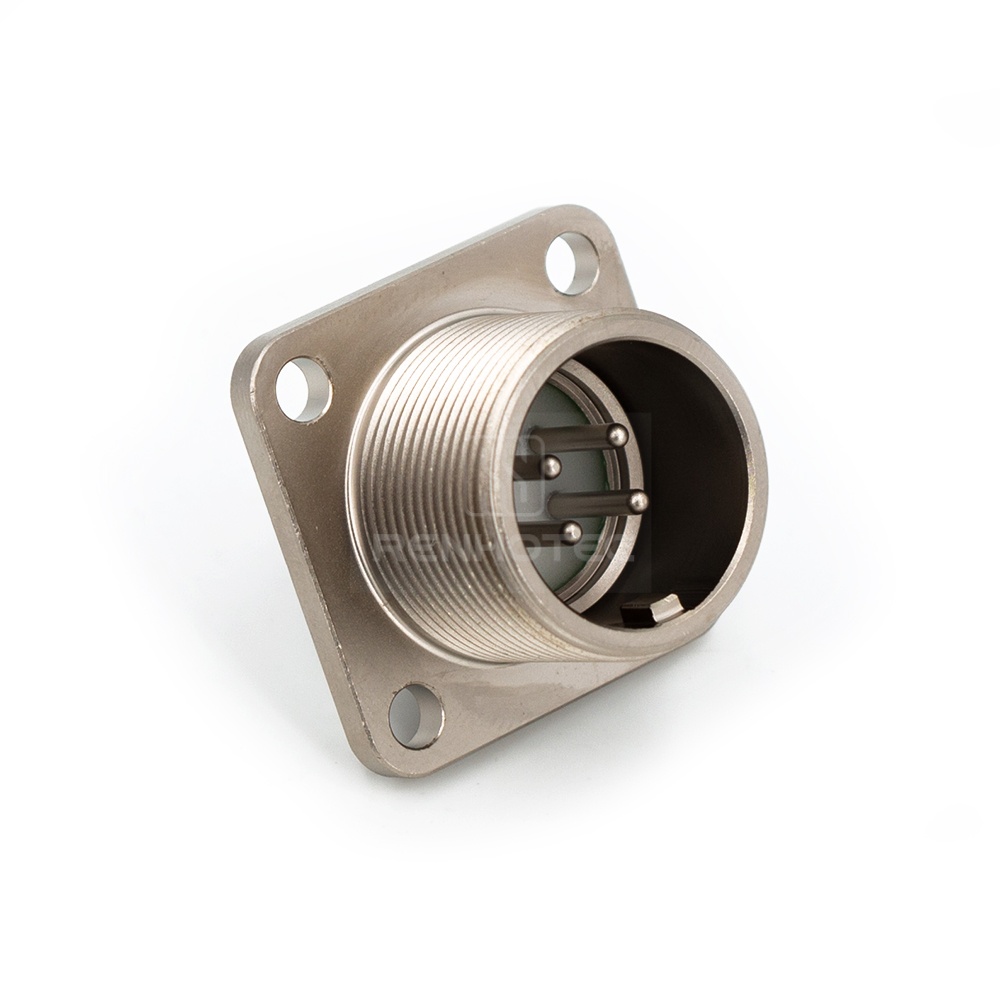

2РМГД18БПН4Ш5Е2 2PM Connector Shell Size 18 4 Pin Flange Male Socket, Sealed Type, With non-shielded Straight Back Shell - Image 3

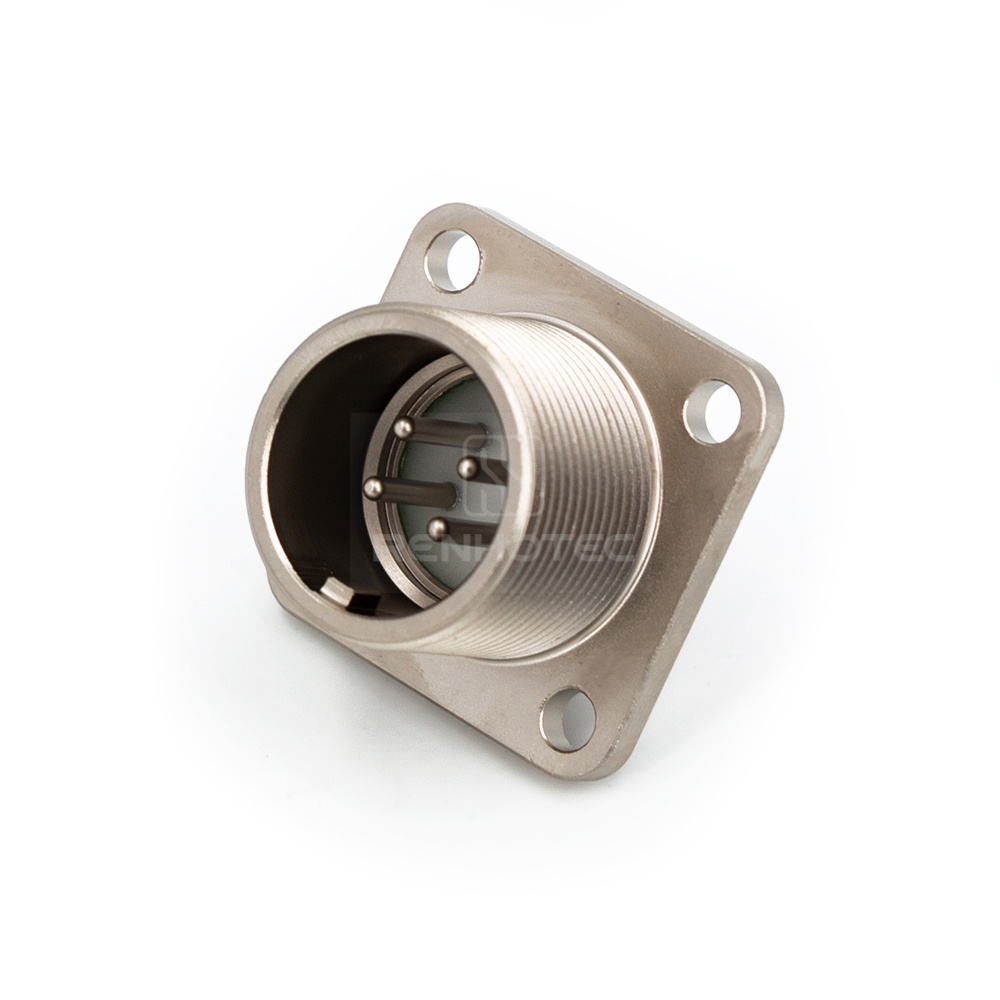

2РМГД18БПН4Ш5Е2 2PM Connector Shell Size 18 4 Pin Flange Male Socket, Sealed Type, With non-shielded Straight Back Shell - Image 4

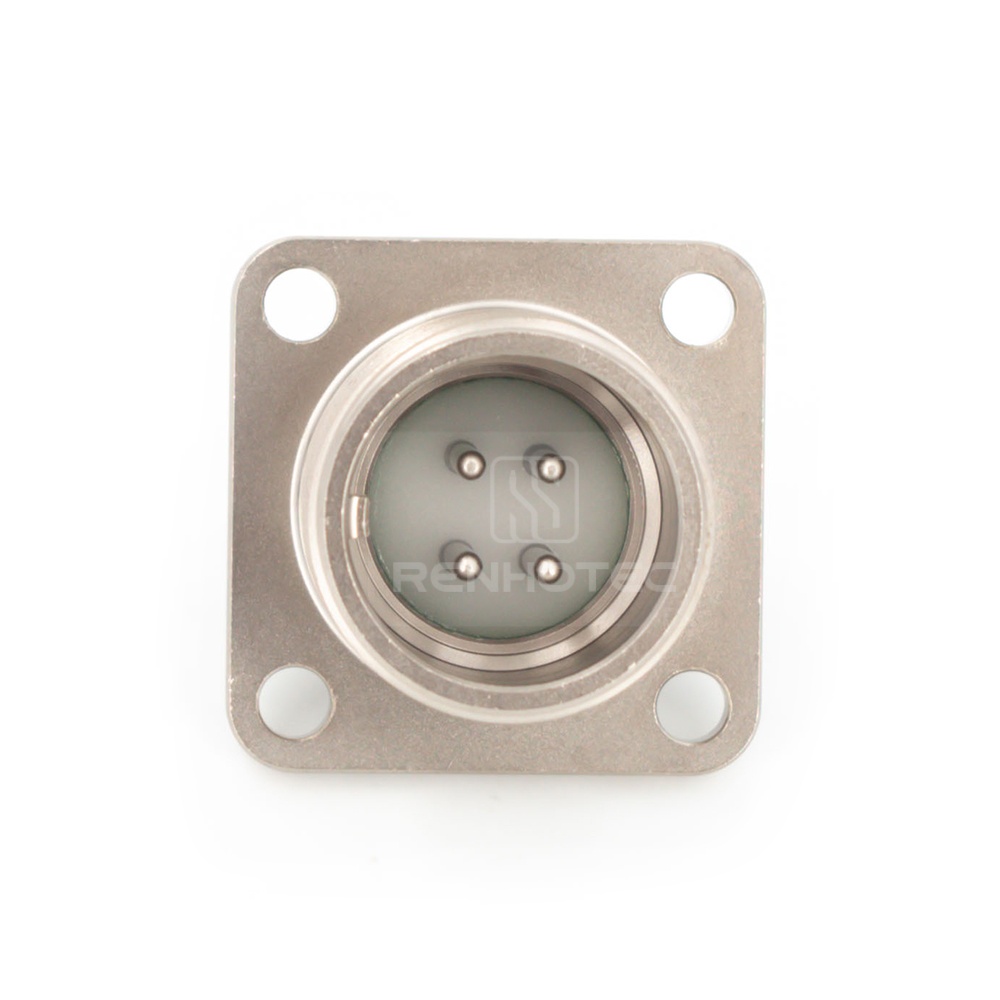

2РМГД18БПН4Ш5Е2 2PM Connector Shell Size 18 4 Pin Flange Male Socket, Sealed Type, With non-shielded Straight Back Shell

SKU: 2PM18J4MB3 Categories: , ,

• 2PMGD18BPN4SH5E2 connector shell size 18, 4-pin flange male socket for reliable sealed connections in industrial controls and automation.
• Features a non-shielded straight back shell, meeting industry standards for durability and environmental protection.
• Ideal for harsh environments, providing secure performance in automotive, machinery, and outdoor applications.
• Compact design ensures easy integration, enhancing system reliability with standardized pin configurations.

Get a Quote

2PM Series Circular Connectors, Sealed Type

2PM series circular electrical connectors are widely used for electrical connection and signal transmission between electrical equipment in railway system, trams and trolley bus etc. Its unique structure can make up for the shortcomings of many other similar connectors, making it more convenient and scientific to use. The cable plug and panel socket are threaded connection.

The panel socket has a glass sintered sealed socket (M) and a glass sintered sealed wall socket (C), which can simultaneously meet the use requirements in special environments such as vacuum, sealing, and high temperature. Now there are mainly 2PM14/18/22/24 /27/30/33/36 and other specifications, its special structure and performance have won the general recognition of the market.

Russian 2PM Series Sealed Type Circular Connector-2
Russian 2PM Series Sealed Type Circular Connector-1
Russian 2PM Series Sealed Type Circular Connector-3

Contact Layout Diagrams for 2PM

English P/N

2RMGD18BPN4Sh5E2
Original P/N

2РМГД18БПН4Ш5Е2
Connector Type

Orientation

Gender

Male
Shell Size

2PM 18
Number of Positions

Contact Termination

Solder
Fastening Type

Durability

500
Shell Material

Stainless Steel
Contact Material

Copper with nickel-plated
Insulation Material

Glass sintered
Rated Current

5-30A
Rated Voltage

≤700V
Operating Temperature

-60℃ – +200℃
2PM 22 K(J) 4 Z/M/C
Q/W		 A/B 1/2/3
Series
Shell Slze: 2PM14/18 22/24/27/30/33/36/39/42/45
K: Female J: Male
Number of Contacts
Z: Non-sealed standard 4-pin flange plug
M: Sealed 4-pin flange socket
C: Sealed Bulkhead receptacle
Q: Straight cable plug
W: Angled cable plug
A: Shielded tail attachment, B: Unshielded tail attachment
1: Gold plated pin, 2: Silver plated pin, 3: Nickel plated pins
