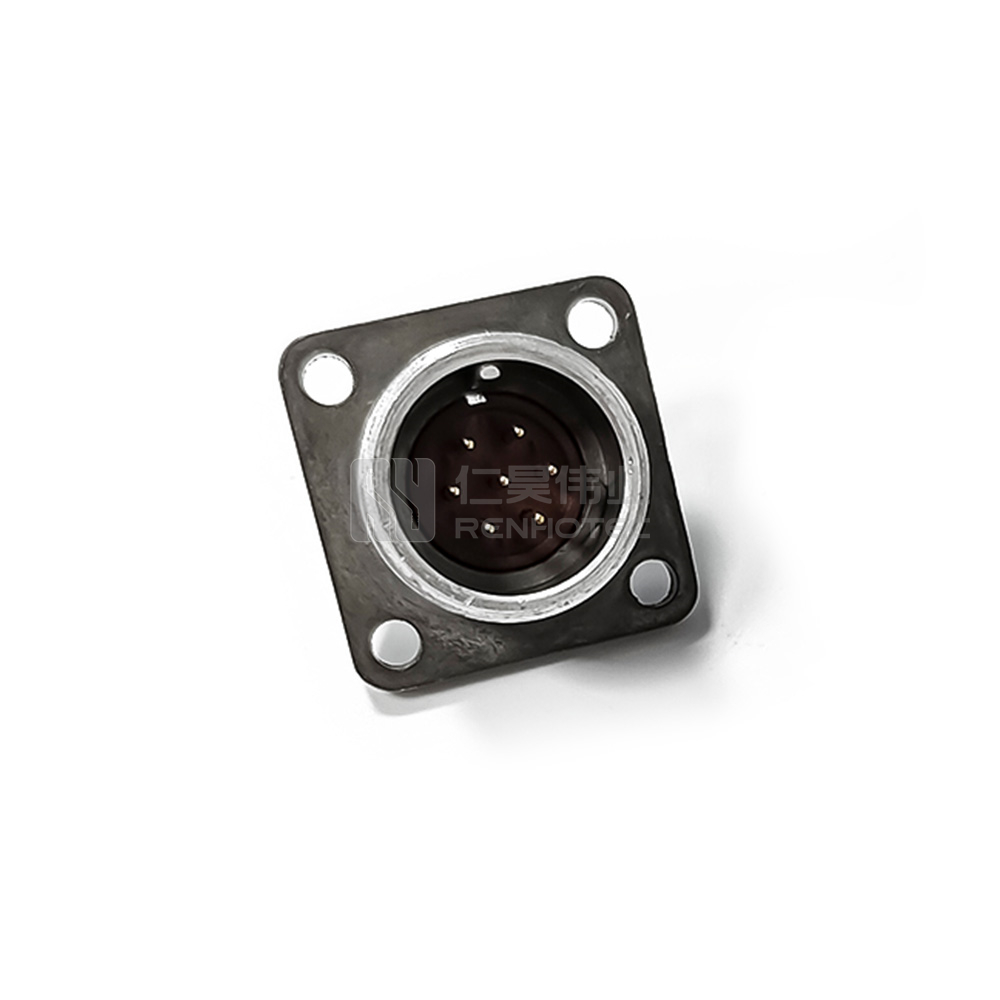

2PM-18 Series 7Pin Male Panel Socket with Gold Plated Pin – 2РМТ18Б7Ш1А1В

About Russian Standard 2PM Series Connectors

2PM series circular electrical connectors mainly adopt Russian connector technology. It is widely used for electrical connection and signal transmission between electrical equipment. Its unique structure can make up for the shortcomings of many other similar connectors, making it more convenient and scientific to use. The cable plug and panel socket are threaded connection. The panel socket has a glass sintered sealed socket (M) and a glass sintered sealed wall socket (C), which can simultaneously meet the use requirements in special environments such as vacuum, sealing, and high temperature. At the same time, it can be matched and interchanged with original parts of Russian 2PMT and 2РМДТ series.

2PM14

2PM18

2PM22

2PM24

2PM27

2PM30

Dimensions

Shell Size	14	18	22	24	27	30	33	36	39	42	45
A	17	20	23	26	29	31	32	35	37	40	43
B	24	27	30	33	36	38	40	43	46	49	52
C (LH)Thread	M14*1.0	M18*1.0	M22*1.0	M24*1.0	M27*1.0	M30*1.0	M33*1.0	M38*1.0	M39*1.0	M42*1.0	M45*1.0
D (RH)Thread	M16*1.0	M20*1.0	M24*1.0	M27*1.5	M30*1.5	M33*1.5	M36*1.5	M39*1.5	M39*1.5	M45*1.5	M48*1.5

For connectors with ø1.0 and ø1.5mm contacts dimension L=26.00 max.

For connectors with ø2.0 and ø3mm contacts dimension L=28.00 max.

Shell Size	14	18	22	24	27	30	33	36	39	42	45
A Max	22	25	29	32	35	39	42	45	48	51	54
B (Min) Cable Entry Dia	6.5	10.50	14.50	16.50	18.50	20.50	23.00	23.00	24.50	30.50	30.50
C (RH)Thread	M16*1.0	M20*1.0	M24*1.0	M27*1.5	M30*1.5	M33*1.5	M36*1.5	M39*1.5	M39*1.5	M45*1.5	M48*1.5
L Max	53.50	53.50	56	62.50	62.50	62.50	57.50	67.50	67.50	67.50	67.50
H Max	37.5	41	47.5	50	53.5	57.5	50.5	63.5	56.5	69.5	72.5

Shell Size	14	18	22	24	27	30	33	36	39	42	45
A Max	22	25	29	32	35	39	47	45	48	51	54
B (Min) Cable Entry Dia	6.5	10.50	14.50	16.50	18.50	20.50	23.00	23.00	24.50	30.50	30.50
C (RH)Thread	M16*1.0	M20*1.0	M24*1.0	M27*1.5	M30*1.5	M33*1.5	M36*1.5	M39*1.5	M39*1.5	M45*1.5	M48*1.5
L Max	51.5	58	62	64	67	71	71	71	74	81	88
H Max	37.5	41	47.5	50	53.5	57.5	50.5	63.5	56.5	69.5	72.5
