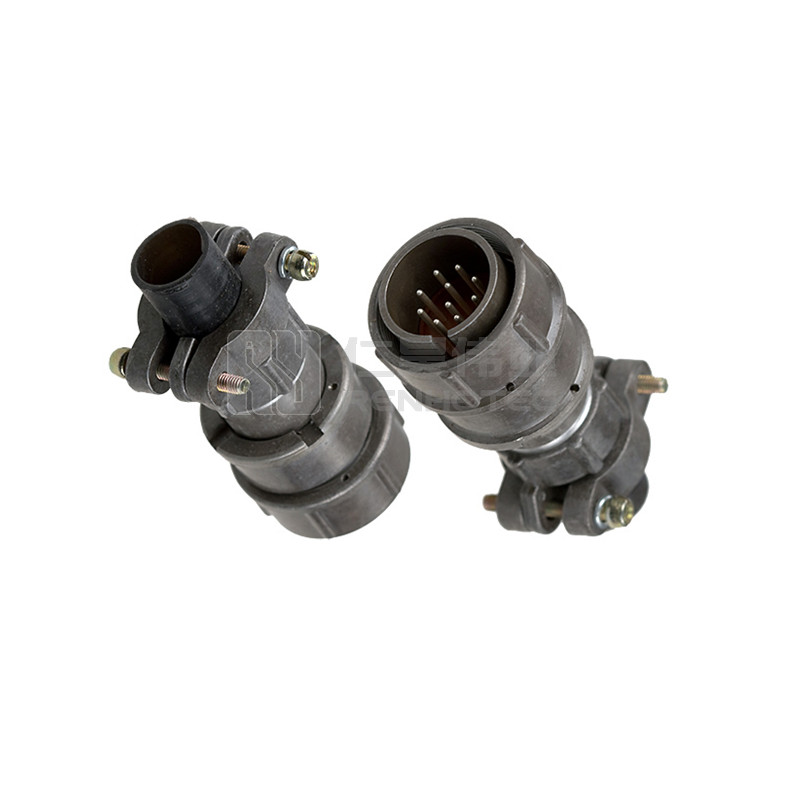

2PM-22 Series 10Pin Male Straight Cable Plug Unshielded -2РМТ22КПН10Ш1В1В

Q: How much would be 2PM 4 pin base connector ? Could I try samples and how long lead time ?

Price : Yes, for 2PM14-4Pin connectors, price: 11 RMB – 15RMB. If you have good quantity, contact us for negoniation. Samples : We always support samples before mass order for our customers. Lead Time : For sample: 7-10 days after payment received For mass order: Usually 2-3 weeks after payment received(It depends on the actural model number)

Q: What is the material of your 2PM?

Shell Material : Aluminum alloy (die-cast aluminum, surface oxidation treatment) Contact Material : Copper with silver/gold plated Insulater : Bakelite/PBT #image_1271782758 { width: 60%; }

Q: What is the difference between 2PM shielded and non-shielded type?

Let me tell you the difference with 2 pictures. #image_1250425039 { width: 60%; }

High-quality 10-pin male straight cable plug for secure connections – Высококачественный 10-контактный мужской прямой кабельный разъем для надежных соединений.

Get a Quote Talk To Us

About Russian Standard 2PM Series Connectors

2PM series circular electrical connectors mainly adopt Russian connector technology. It is widely used for electrical connection and signal transmission between electrical equipment. Its unique structure can make up for the shortcomings of many other similar connectors, making it more convenient and scientific to use. The cable plug and panel socket are threaded connection. The panel socket has a glass sintered sealed socket (M) and a glass sintered sealed wall socket (C), which can simultaneously meet the use requirements in special environments such as vacuum, sealing, and high temperature. At the same time, it can be matched and interchanged with original parts of Russian 2PMT and 2РМДТ series.

How to Choose

2PM14

2PM18

2PM22

2PM24

2PM27

2PM30

Dimensions

Shell Size	14	18	22	24	27	30	33	36	39	42	45
A	17	20	23	26	29	31	32	35	37	40	43
B	24	27	30	33	36	38	40	43	46	49	52
C (LH)Thread	M14*1.0	M18*1.0	M22*1.0	M24*1.0	M27*1.0	M30*1.0	M33*1.0	M38*1.0	M39*1.0	M42*1.0	M45*1.0
D (RH)Thread	M16*1.0	M20*1.0	M24*1.0	M27*1.5	M30*1.5	M33*1.5	M36*1.5	M39*1.5	M39*1.5	M45*1.5	M48*1.5

For connectors with ø1.0 and ø1.5mm contacts dimension L=26.00 max.

For connectors with ø2.0 and ø3mm contacts dimension L=28.00 max.

Shell Size	14	18	22	24	27	30	33	36	39	42	45
A Max	22	25	29	32	35	39	42	45	48	51	54
B (Min) Cable Entry Dia	6.5	10.50	14.50	16.50	18.50	20.50	23.00	23.00	24.50	30.50	30.50
C (RH)Thread	M16*1.0	M20*1.0	M24*1.0	M27*1.5	M30*1.5	M33*1.5	M36*1.5	M39*1.5	M39*1.5	M45*1.5	M48*1.5
L Max	53.50	53.50	56	62.50	62.50	62.50	57.50	67.50	67.50	67.50	67.50
H Max	37.5	41	47.5	50	53.5	57.5	50.5	63.5	56.5	69.5	72.5

Shell Size	14	18	22	24	27	30	33	36	39	42	45
A Max	22	25	29	32	35	39	47	45	48	51	54
B (Min) Cable Entry Dia	6.5	10.50	14.50	16.50	18.50	20.50	23.00	23.00	24.50	30.50	30.50
C (RH)Thread	M16*1.0	M20*1.0	M24*1.0	M27*1.5	M30*1.5	M33*1.5	M36*1.5	M39*1.5	M39*1.5	M45*1.5	M48*1.5
L Max	51.5	58	62	64	67	71	71	71	74	81	88
H Max	37.5	41	47.5	50	53.5	57.5	50.5	63.5	56.5	69.5	72.5

Connector Type	Plug
Shell Size	2PM 22
Orientation	Straight
Number of Positions	10 Pin
Combination No.	1
Contact Size	Φ1.0
Shell Material	Aluminum Alloy (die-cast aluminum, surface oxidation treatment)
Contact Finish	Silver/Gold
Fastening Type	Threaded
Rated Current	5A
Rated Voltage	≤700V (AC)
Operating Temperature	-60℃ – +200℃
Insulation Resistance	Normal ≥1000MΩ Moistheat ≥20MΩ
Contact Resistance	0.8-5MΩ

What is 2PM connector?

2PM can be matched and interchanged with the original parts of the Russian 2PMT and 2РМДТ series, that is to say, it is the version of the Russian 2PMT and 2РМДТ series in China.

How much would be 2PM 4 pin base connector ? Could I try samples and how long lead time ?

Price:
Yes, for 2PM14-4Pin connectors, price: 11 RMB - 15RMB.
If you have good quantity, contact us for negoniation.
Samples:
We always support samples before mass order for our customers.
Lead Time:
For sample: 7-10 days after payment received
For mass order: Usually 2-3 weeks after payment received(It depends on the actural model number)

Would you provide and send me quotation for 2РМДТ36Б20Ш6В1В?

Yes, of course. We could custom any models for 2PM connectors for you.
Please share how many pieces needed and we will give you a best price solution within 24 hours.

What is the material of your 2PM?

Shell Material: Aluminum alloy (die-cast aluminum, surface oxidation treatment)
Contact Material: Copper with silver/gold plated
Insulater: Bakelite/PBT

How much temperature can your 2PM withstand?

Operating temperature: -60℃ - +200℃

I wanted to buy connectors 2PM33-32. Do you have any in stock?

Of course, we have complete models of 2PM series, 2PM33-32 is our hot-selling model.
How many pieces do you need? Contact us and will check stock for you right now.

How could I pay to you?

We support TT/Paypal/Credit card and so on.
In addition, if you have agent in China, we also support your agent contact us to pay directly.

What is the difference between 2PM shielded and non-shielded type?

Let me tell you the difference with 2 pictures.

2PM Series Catalog - RenhotecDownload

2PM	14	K	4	Q	A	2
Shell Slze: 2PM14/18 22/24/27/30/33/36/39/42/45
K: Female J: Male
Number of contacts: 4/7/8/10/19/20/22/24/32...
Q: Straight cable plug, W: Angled cable plug, Z:Flange receptacle, M: Sealed Flange receptacle, C:Sealed Bulkhead receptacle
A: Shielded tail attachment, B: Unshielded tail attachment
1: Gold plated pin, 2: Silver plated pin
