Part Number :
| Russian | Chinese | English | Descriptive |
| СНЦ23-3/14В-1-В | zh23-3/14B-1-B | SNTs23-3/14V-1-V | ZH23 Series Shell Size 14 3 Pin Male Socket with Simple Tail Attachment |
| СНЦ23-3/14В-6А-В | zh23-3/14B-6a-B | SNTs23-3/14V-6A-V | ZH23 Series Shell Size 14 3 Pin Male Plug with Straight Tail Attachment (Key Position: A) |

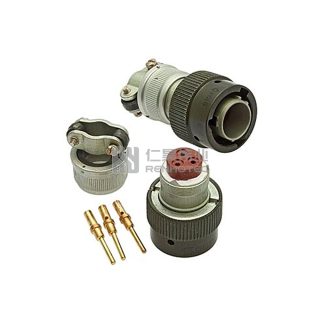

| СНЦ23-3/14В-6-В | zh23-3/14B-6-B | SNTs23-3/14V-6-V | ZH23 Series Shell Size 14 3 Pin Male Plug with Straight Tail Attachment |

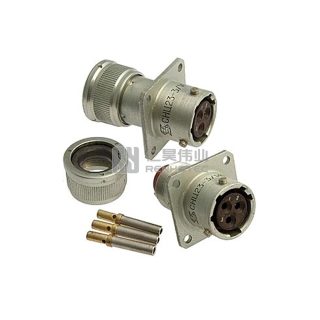

| СНЦ23-3/14Р-1А-В | zh23-3/14P-1a-B | SNTs23-3/14R-1А-V | ZH23 Series Shell Size 14 3 Pin Male Socket with Simple Tail Attachment (Key Position: A) |
| СНЦ23-3/14Р-1-В | zh23-3/14P-1-B | SNTs23-3/14R-1-V | ZH23 Series Shell Size 14 3 Pin Female Socket with Simple Tail Attachment |
| СНЦ23-4/14В-1Б-В | zh23-4/14B-1b-B | SNTs23-4/14V-1B-V | ZH23 Series Shell Size 14 4 Pin Male Socket with Simple Tail Attachment (Key Position: B) |
| СНЦ23-4/14В-1-В | zh23-4/14B-1-B | SNTs23-4/14V-1-V | ZH23 Series Shell Size 14 4 Pin Male Socket with Simple Tail Attachment |
| СНЦ23-4/14В-2-В | zh23-4/14B-2-B | SNTs23-4/14V-2-V | ZH23 Series Shell Size 14 4 Pin Male Socket with Straight Tail Attachment |
| СНЦ23-4/14В-6Б-В | zh23-4/14B-6b-B | SNTs23-4/14V-6B-V | ZH23 Series Shell Size 14 4 Pin Male Plug with Straight Tail Attachment (Key Position: B) |
| СНЦ23-4/14В-6-В | zh23-4/14B-6-B | SNTs23-4/14V-6-V | ZH23 Series Shell Size 14 4 Pin Male Plug with Straight Tail Attachment |
| СНЦ23-4/14В-8-В | zh23-4/14B-8-B | SNTs23-4/14V-8-V | ZH23 Series Shell Size 14 4 Pin Male Plug with Angled Tail Attachment |
| СНЦ23-4/14В-11-В | zh23-4/14B-11-B | SNTs23-4/14V-11-V | ZH23 Series Shell Size 14 4 Pin Male Plug with Simple Tail Attachment |
| СНЦ23-4/14В-13Б-В | zh23-4/14B-13b-B | SNTs23-4/14V-13B-V | ZH23 Series Shell Size 14 4 Pin Male Plug with Type 09 Thermoplastic Sleeve Type Tail Attachment (Key Position: B) |
| СНЦ23-4/14Р-1-В | zh23-4/14P-1-B | SNTs23-4/14R-1-V | ZH23 Series Shell Size 14 4 Pin Female Socket with Simple Tail Attachment |
| СНЦ23-4/14Р-2Б-В | zh23-4/14P-2b-B | SNTs23-4/14R-2B-V | ZH23 Series Shell Size 14 4 Pin Female Socket with Straight Tail Attachment (Key Position: B) |
| СНЦ23-4/14Р-8-В | zh23-4/14P-8-B | SNTs23-4/14R-8-V | ZH23 Series Shell Size 14 4 Pin Female Plug with Angled Tail Attachment |

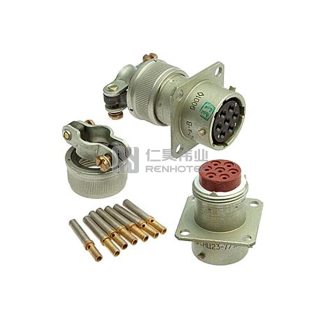

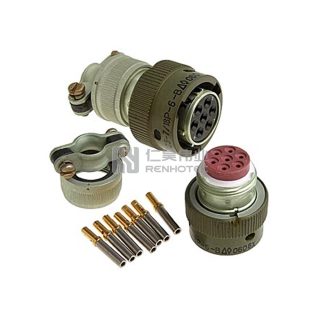

ZH23 series bayonet connectors have the characteristics of environmental resistance, five-button positioning, anti-insertion, and bayonet quick connection.
Used in low frequency AC and DC circuits. It can be matched and interchanged with the Russian connector СНЦ23 series.
Technical Performance
| Operating Voltage | Class | Operating Voltage(V) | Testing voltage(V) | ||||||
| A | 700 | 2100 | |||||||
| B | 500 | 1850 | |||||||
| C | 400 | 1600 | |||||||
| Contact Current | Φ1.0 | Φ1.5 | Φ2.0 | ||||||
| 11A | 20A | 35A | |||||||
| Contact Resistance | Φ1.0 | Φ1.5 | Φ2.0 | ||||||
| ≤7.4 mΩ | ≤2.5 mΩ | ≤1.6 mΩ | |||||||
Connector Type
Socket with Simple
Tail Attachment
Socket with Clamp Cable Tail Attachment
Socket with Angled Clamp Cable Tail Attachment
Plug with Simple
Tail Attachment
Plug with Clamp Cable Tail Attachment
