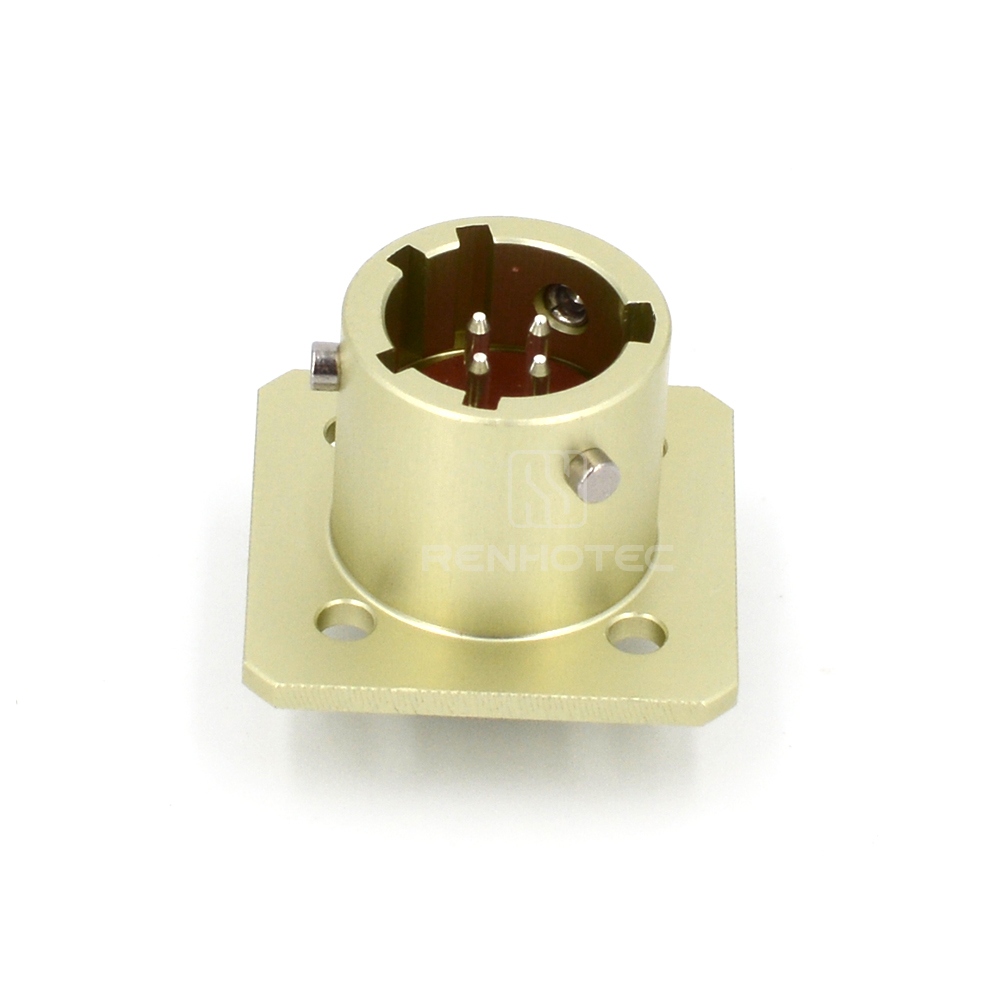

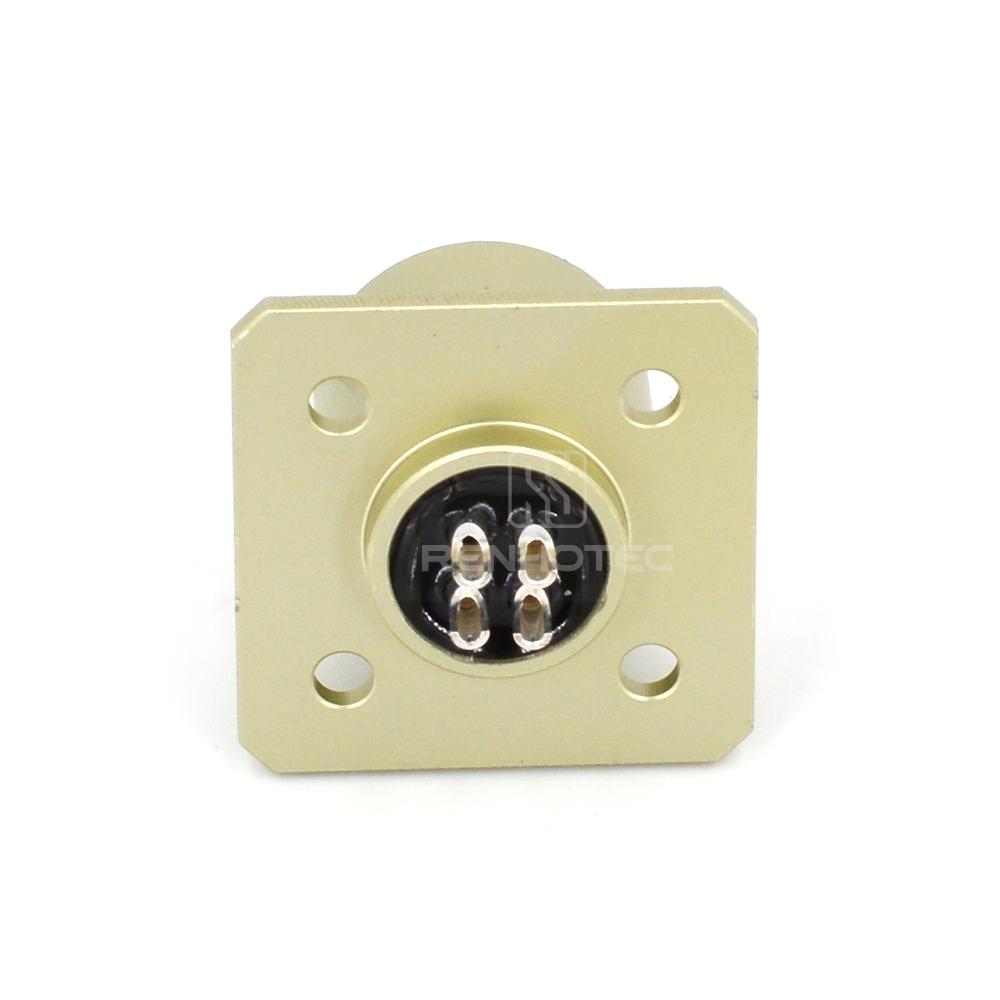

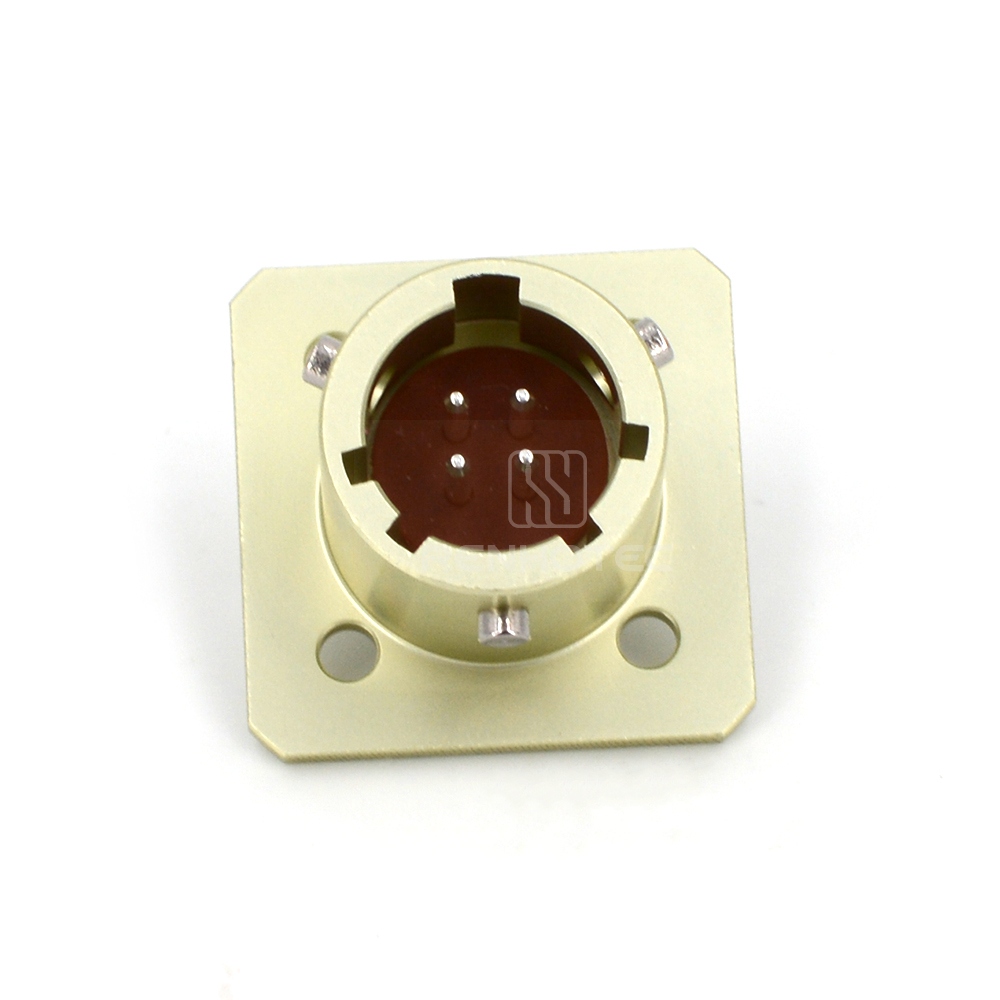

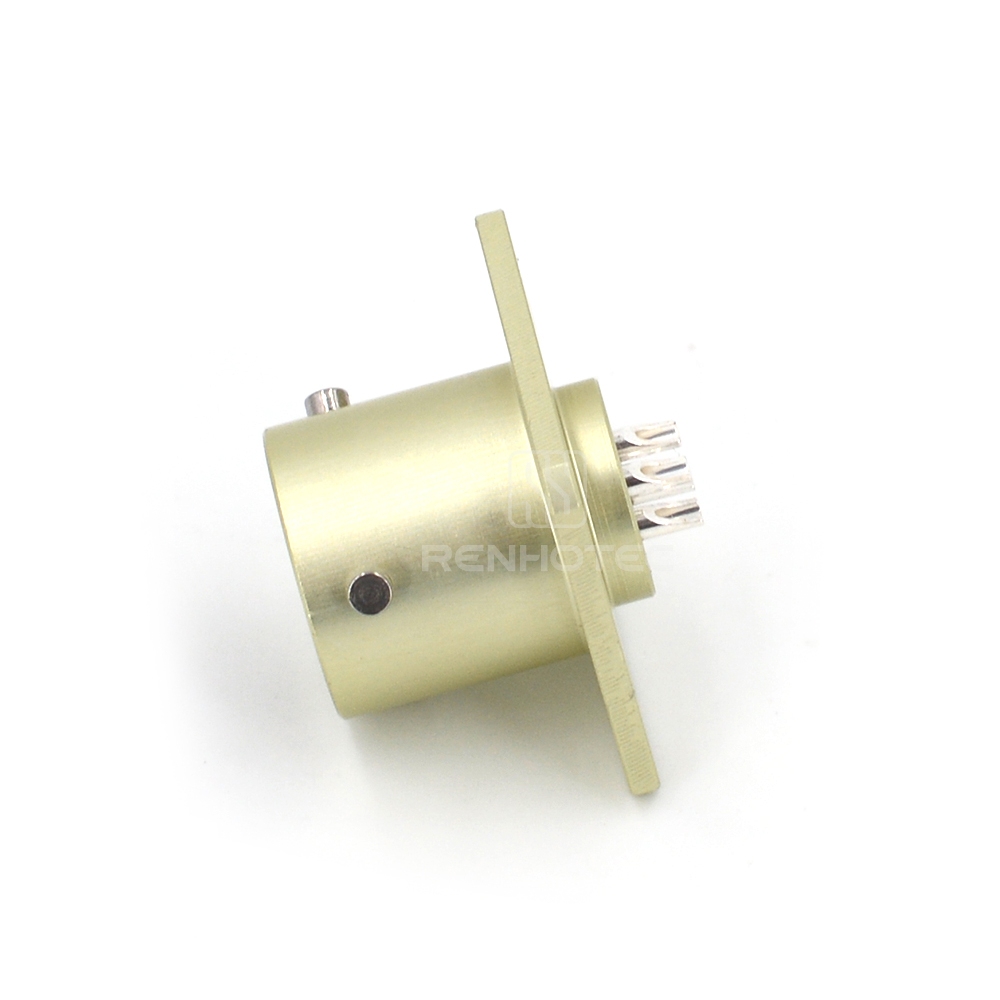

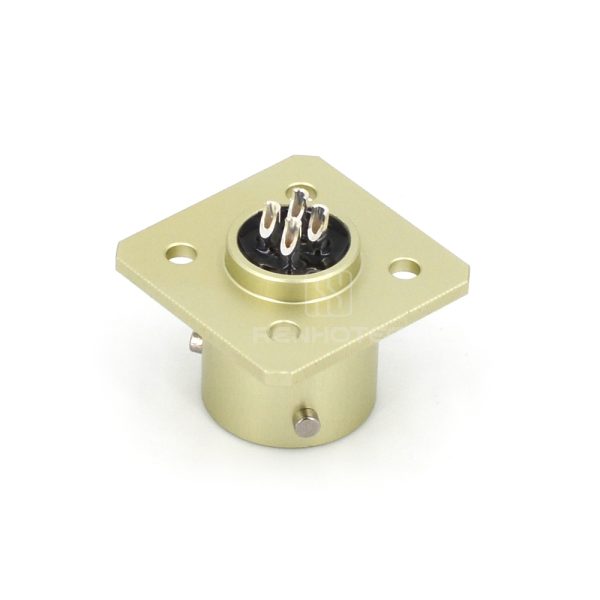

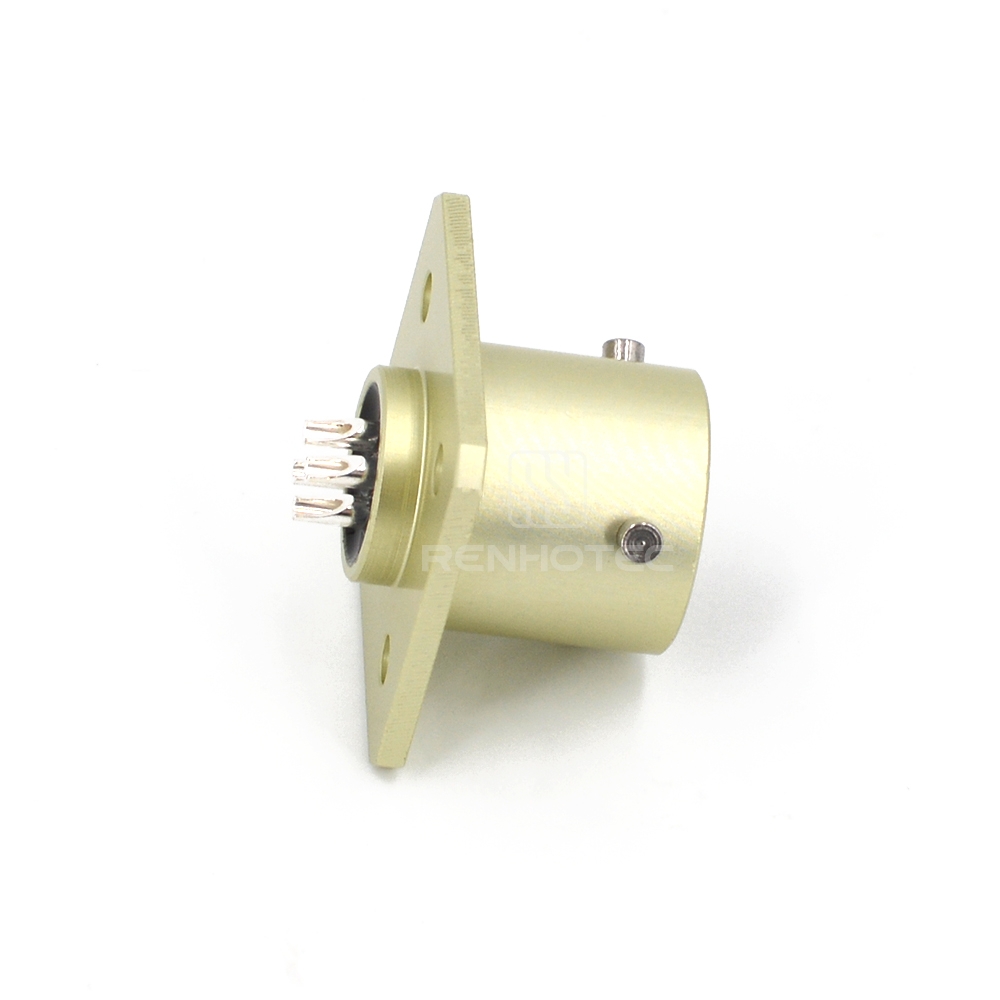

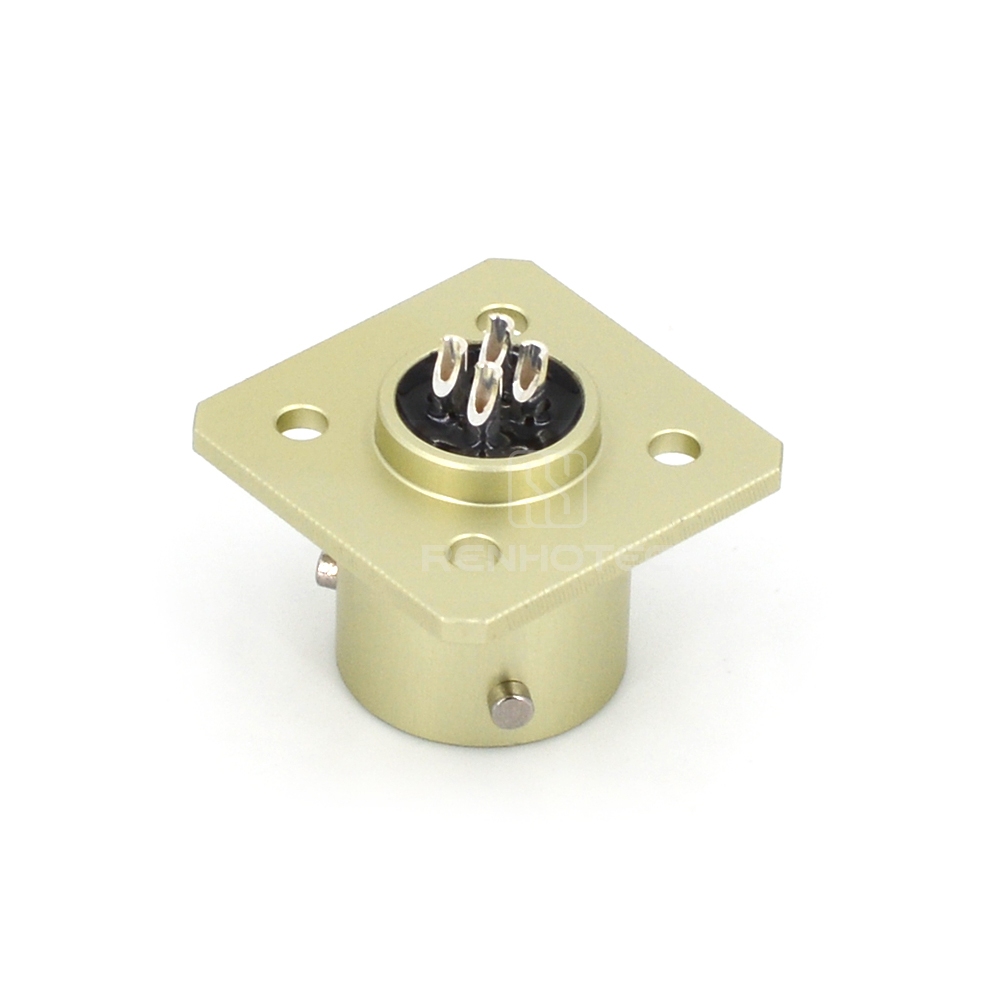

ОНЦ-БС-1(2) Series Connector Shell Size 10 4 Pin Male Socket-ОНЦ-БС-1-4/10-B1-1-B

OHS Series Bayonet Ultra-Small Connectors

OHS series bayonet ultra-small connectors mainly adopt Russian connector technology. This type of connector is widely used in DC and AC circuits of various electrical, radio and control instruments. It consists of plugs and sockets, with multi-level key positions for installation. The coupling mode of the connector is bayonet type. The socket has no tail attachment and the plug has a straight plastic tail attachment. At the same time, it can be matched and interchanged with the original parts of the Russian ОНЦ-БС-1(2) series.

Appearance and Installation Dimensions

Shell Size	Size in mm
	D	d	A	B	b
10	10	2.2	11.8	20	1.4
12	12	2.2	13.2	21	1.4
14	14	2.2	15	24	1.4
18	18	2.2	18	27	1.4
22	22	2.7	21.5	31	1.8
27	27	3.2	26	36	2

Shell Size	Size in mm
	D	d	d1	Lmax
10	20	M10*0.75	4.5	30
12	21	M12*0.75	6	31
14	24	M14*0.75	7	32
18	27	M18*0.75	9.2	33
22	31	M22*0.75	11	34
27	36	M27*0.75	13	36

Shell Size	10	12	14	18
Contacts	4	7	10	19
Pin-out Arrangements
Shell Size	22		27
Contacts	32		50
Pin-out Arrangements

Technical Performance
