Русский| Part Number | Number of Pins | Products |
|---|---|---|
| RHT-605-4080-03 | 3 Pin | M8 T Type Splitter Connector, Male to 2 Female 3 Pin |
| RHT-605-4080-04 | 4 Pin | M8 T Type Splitter Connector, Male to 2 Female 4 Pin |
| RHT-605-4080-05 | 5 Pin | M8 T Type Splitter Connector, Male to 2 Female 5 Pin |
| RHT-605-4080-06 | 6 Pin | M8 T Type Splitter Connector, Male to 2 Female 6 Pin |
| RHT-605-4080-08 | 8 Pin | M8 T Type Splitter Connector, Male to 2 Female 8 Pin |

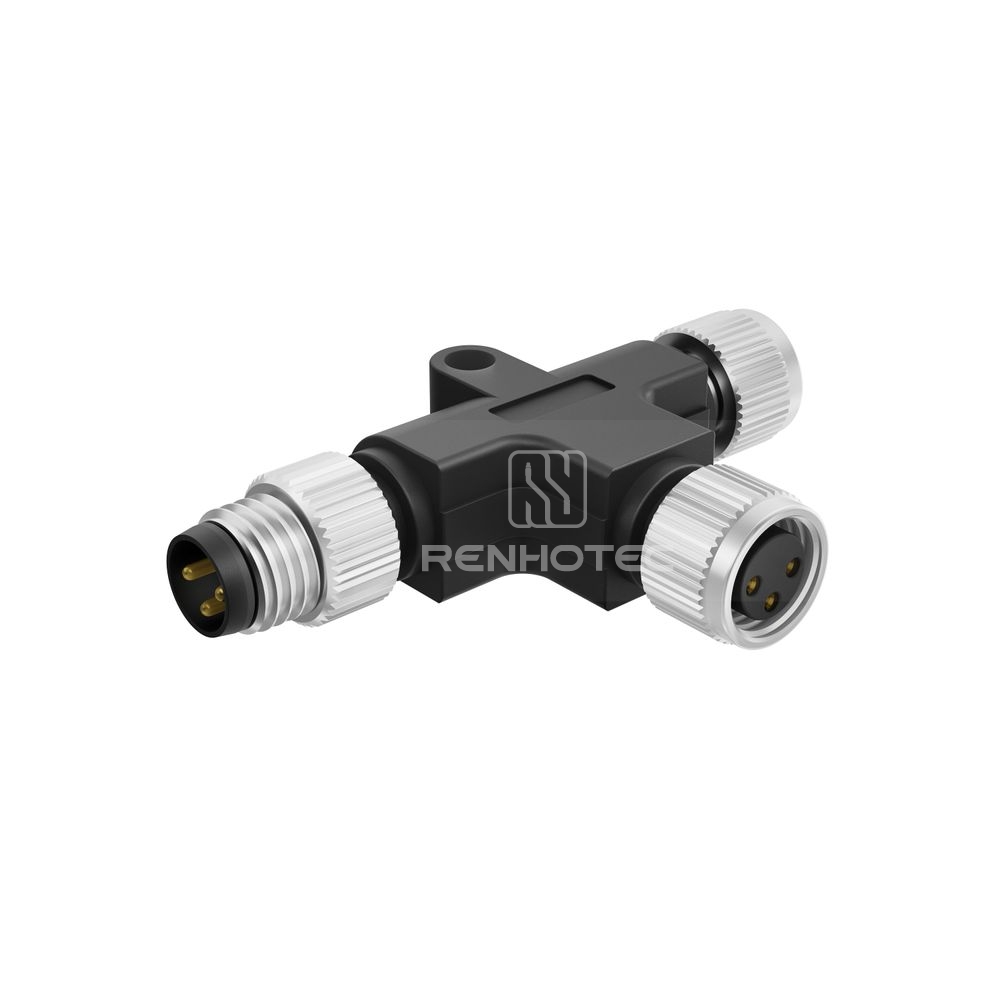

M8 T Type Splitter Connector, Male to 2 Female
- Compliant with IEC 61076 standard.
- Protection ratings: IP65 (mated), IP67 (mated).
- 360° EMC-shielded version available.
- Pin configurations: 3, 4, 5, 6, or 8 positions.
- Cable length, material, and color can be customized.
| Number of Positions | |
|---|---|
| Coding | A, B |
| Body Material | PVC |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Resistance | ≤5MΩ |
| Insulation Material | PA66+GF |
| Insulation Resistance | ≥100MΩ |
| Mechanical and Working Life | ≥500 |
| Ingress Protection | IP67(Mated) |
| Rated Current | 1.5A, 3A |
| Rated Voltage | 50V AC/60V DC, 30V |
| Screw Nut Material | Brass, Nickel Flash |
| Seal | Black, NBR |
| Shielding | Unshielded |
| Operating Temperature | -25℃ ~ +80℃ |
