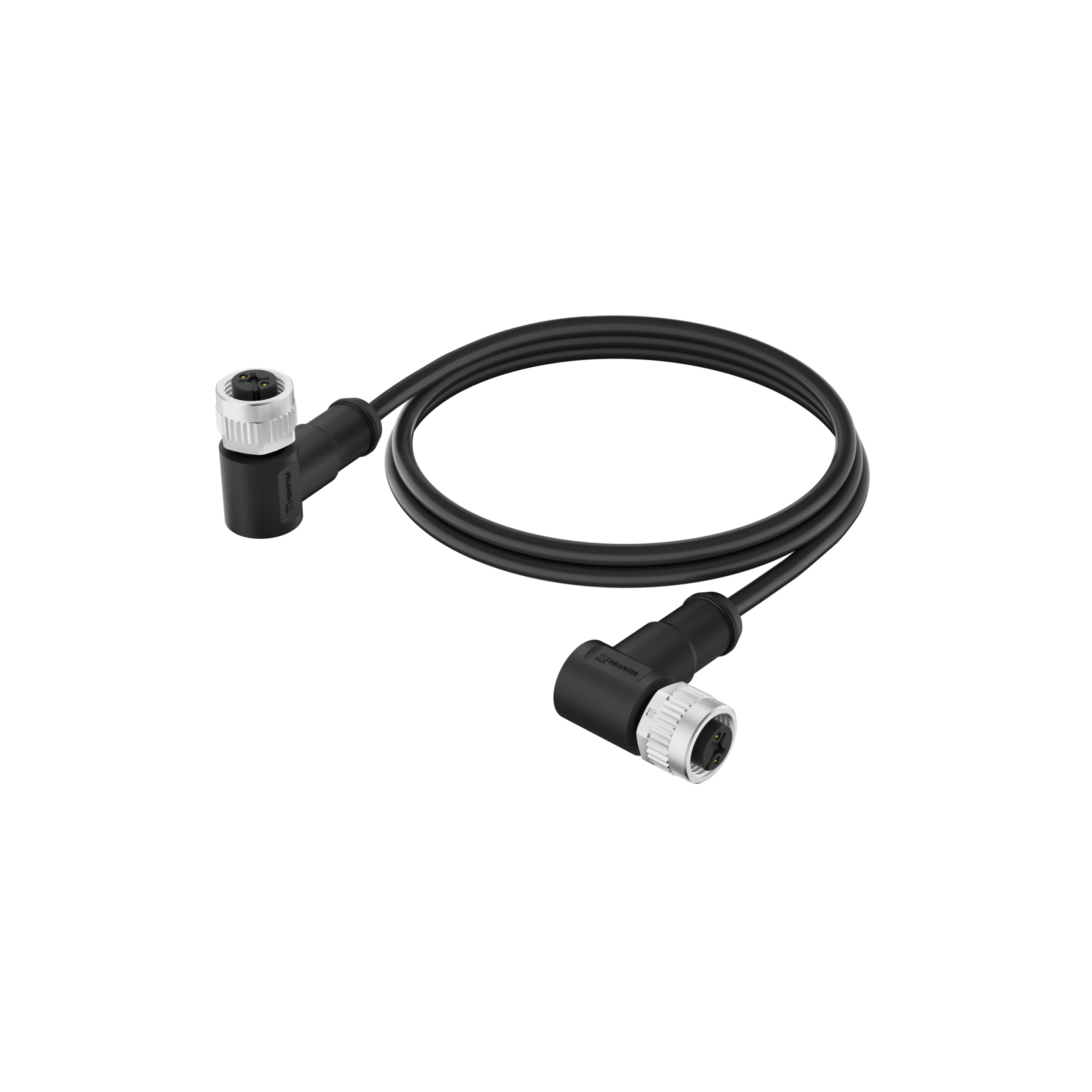

M12 Right Angled Female to Female Molded Cable Assembly, IP67

M12 Right Angled Female to Female Molded Cable Assembly, IP67

Categories: , ,
Get a Quote
Contact Type

Female
Orientation

Screw Nut Material

Nickel Plated, Zinc Alloy
Contact Finish

Gold
Contact Material

Brass
Contact Termination

Solder Cup
Insulation Material

PA66+GF
Overmolding Material

PVC/TPU
Cable Material

PVC/PUR/Customized
Cable Colour

Black/Customized
Wire Gauge

22AWG/0.34mm²
Seal

FKM
Shielding

Unshielded/Shielded
Protection Rating

IP67(Mated)
Rated Current

4A
Rated Voltage

250V
Contact Resistance

≤5MΩ
Insulation Resistance

≥100MΩ
Mating Cycles

≥500
Temperature range

-25℃ ~ +80℃
