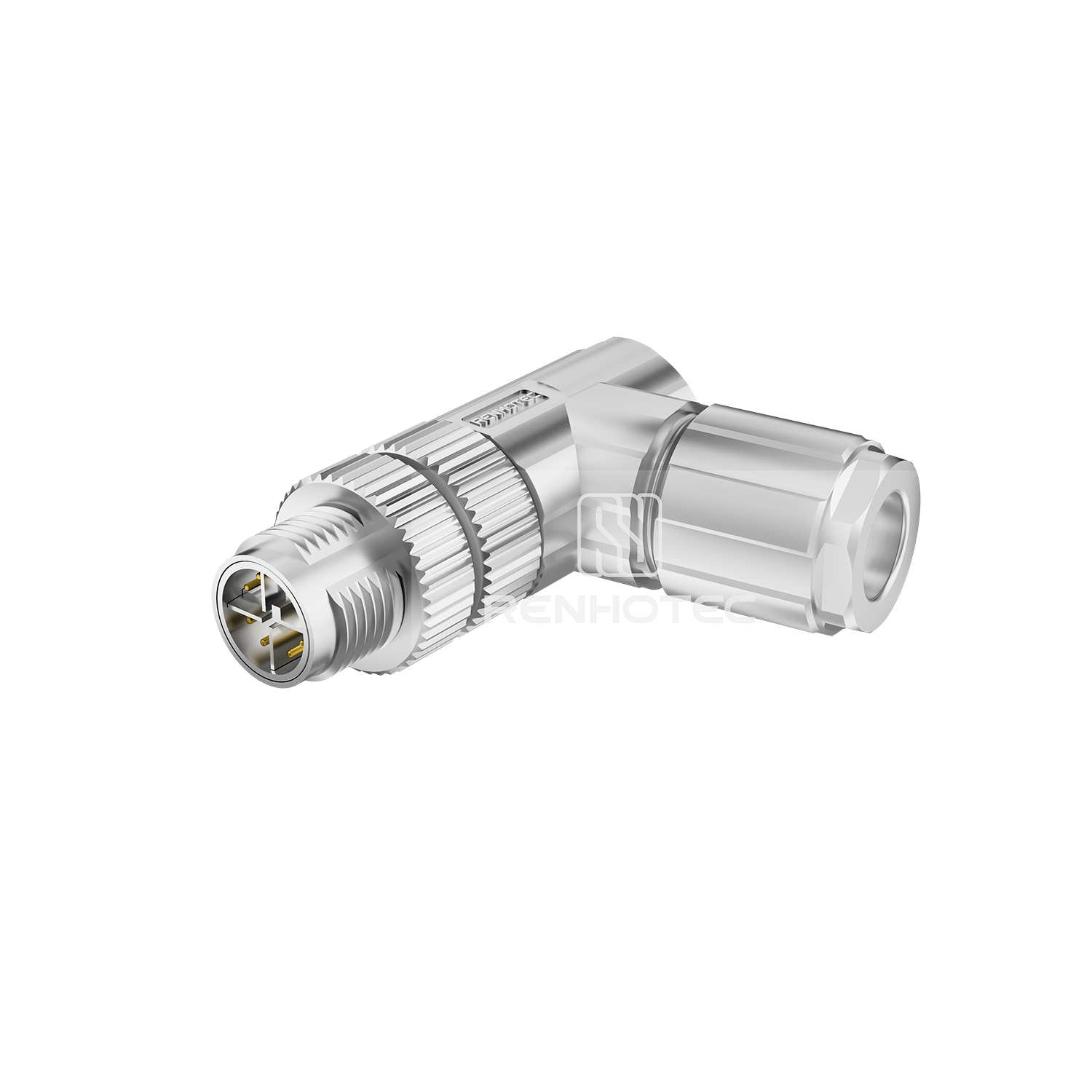

M12 Field Assembly Connector, Crimp, Angled

M12 Field Assembly Connector, Crimp, Angled

SKU: RHT-634-3275-8X Categories: , ,
Get a Quote
Key

X
Number of Positions

Contact Type

Male
Orientation

Body Material

Nickel Plated, ZInc Alloy
Screw Nut Material

Nickel Plated, Zinc Alloy
Contact Finish

Gold
Contact Material

Phosphor
Contact Termination

Crimp
Insulation Material

PA66+GF
Wire Gauge

24AWG/0.25mm2
Seal

Silica gel
Shielding

Shielded
Protection Rating

IP67(Mated)
Rated Current

0.5A
Rated Voltage

60V AC/DC
Contact Resistance

≤5MΩ
Insulation Resistance

≥100MΩ
Mating Cycles

≥500
Temperature range

-25℃ ~ +80℃
