Threaded PC50ZJ 50 Pin Male Flange Socket Solder Cups

SKU: PC50ZJ Category:

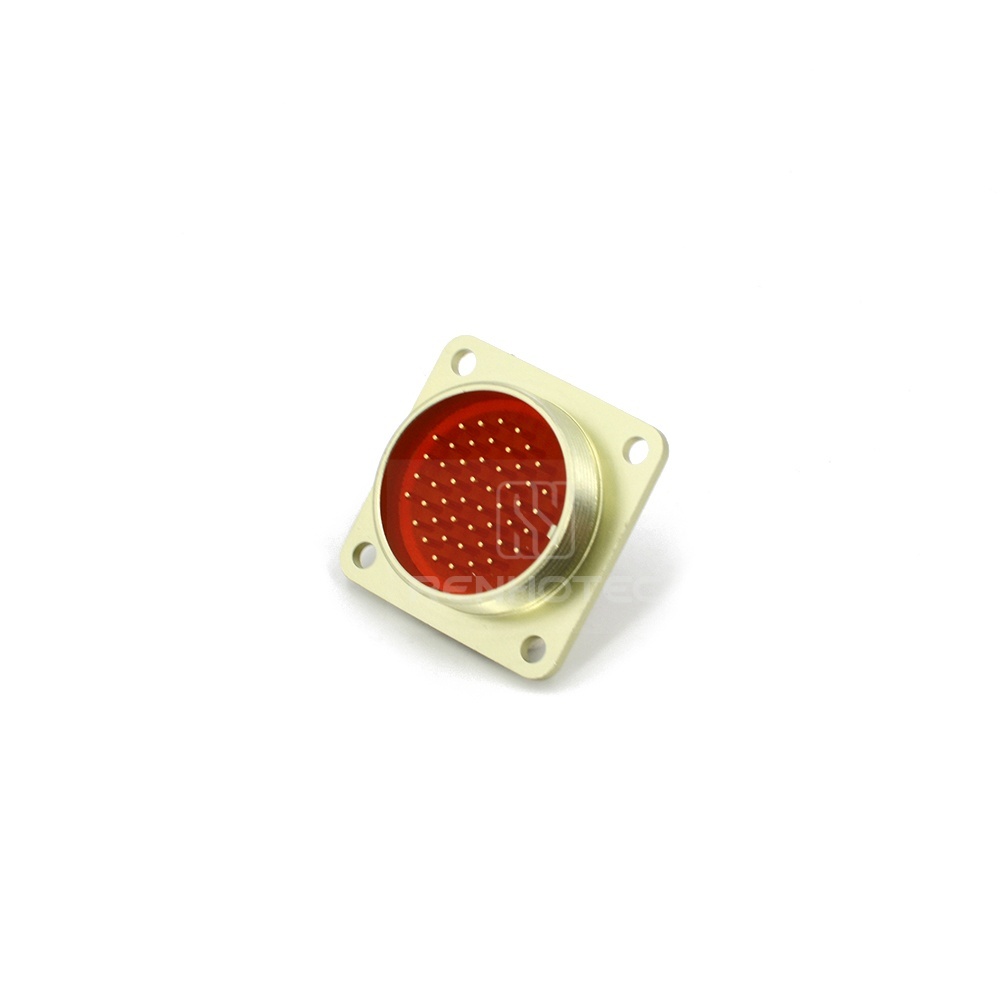

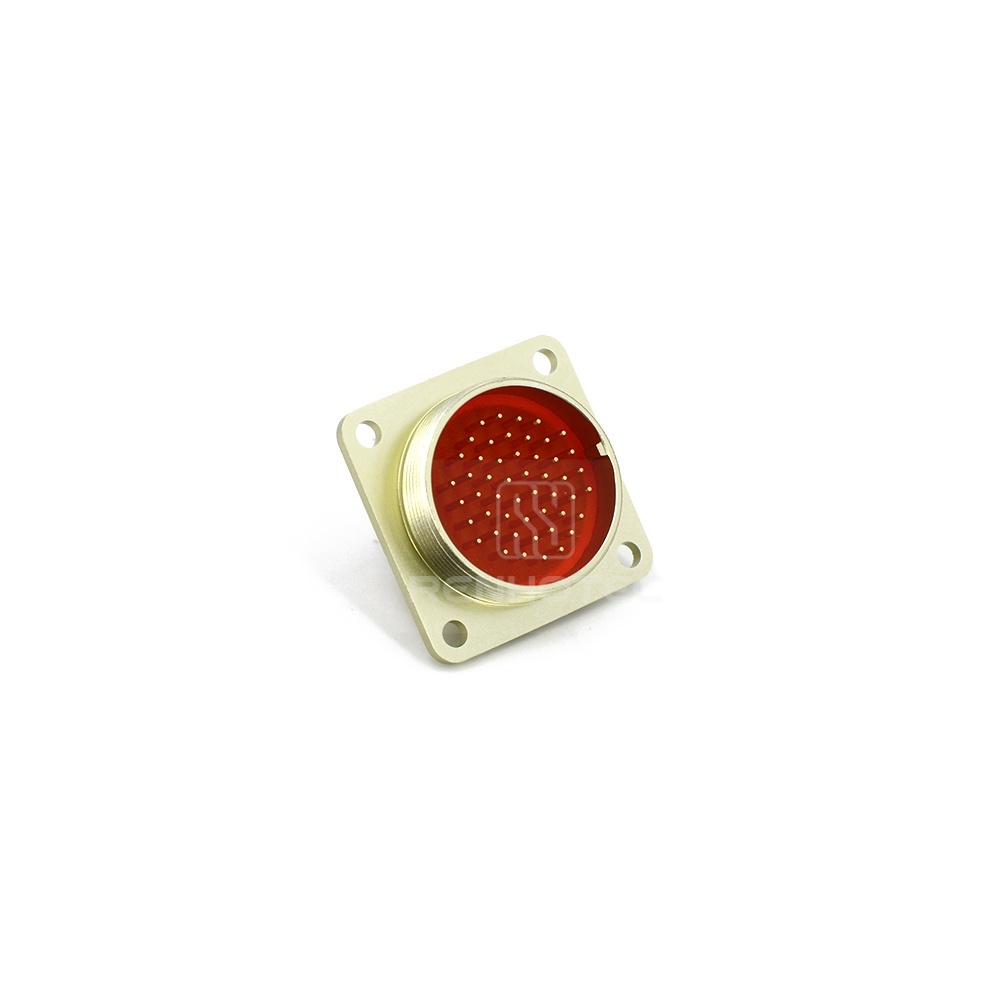

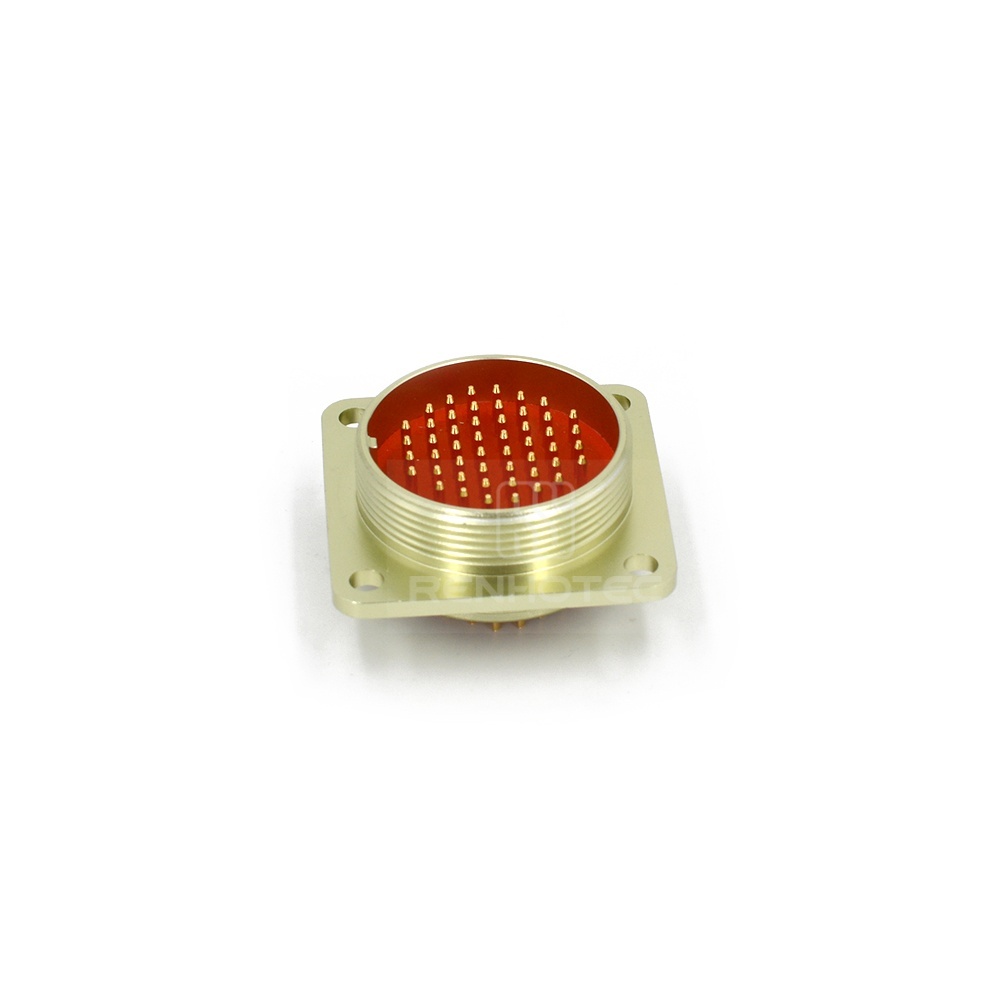

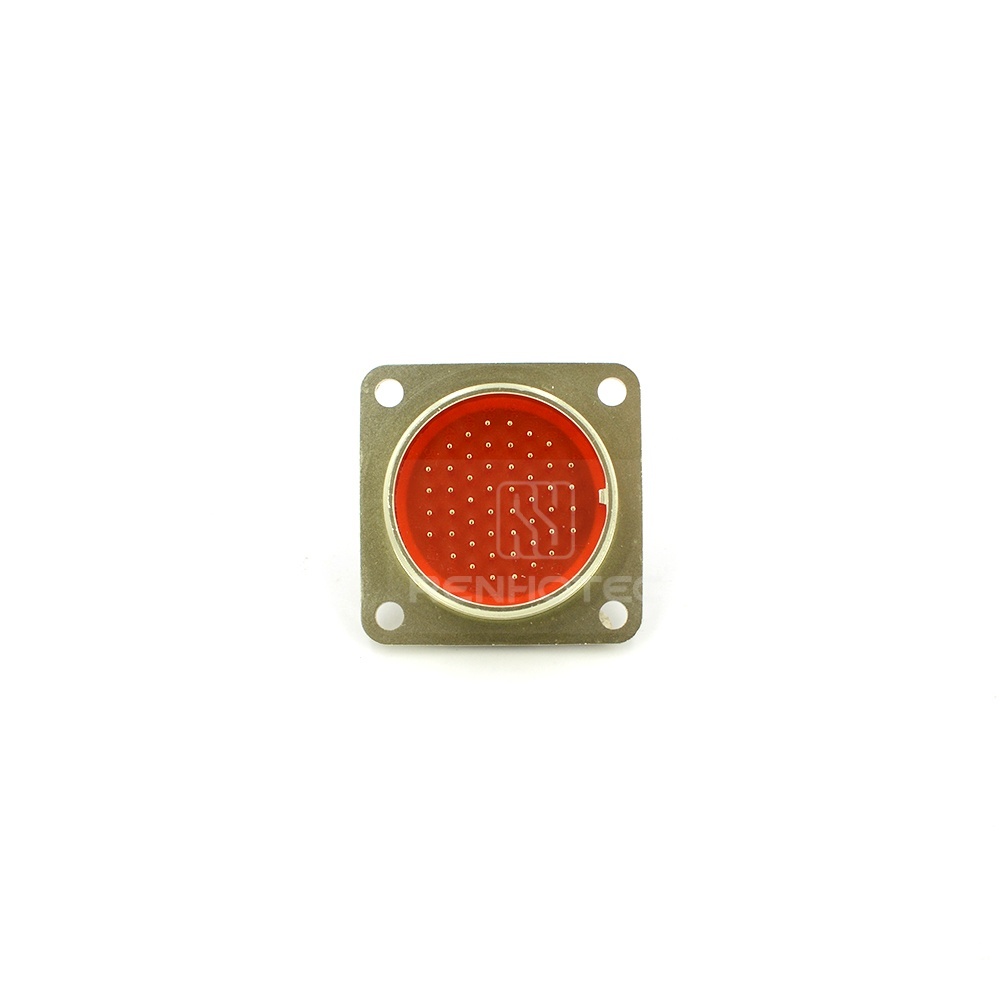

The Threaded PC50ZJ 50 Pin Male Flange Socket Solder Cups, SKU PC50ZJ, is designed for reliable and secure electrical connections. It features a male flange socket with solder cups, ensuring durability and ease of installation in various applications.

Get a Quote

Part Number :

PC4TK Threaded 4 Pin Female Straight Plug Solder Cups
PC4ZJ Threaded 4 Pin Male Flange Socket Solder Cups
PC4ZPJ Threaded 4 Pin Male Straight Butt Joint Plug Solder Cups
PC4P Threaded Casing
PC7TK Threaded 7 Pin Female Straight Plug Solder Cups
PC7ZJ Threaded 7 Pin Male Flange Socket Solder Cups
PC7ZPJ Threaded 7 Pin Male Straight Butt Joint Plug Solder Cups
PC10TK Threaded 10 Pin Female Straight Plug Solder Cups
PC10ZJ Threaded 10 Pin Male Flange Socket Solder Cups
PC10ZPJ Threaded 10 Pin Male Straight Butt Joint Plug Solder Cups
PC19TK Threaded 19 Pin Female Straight Plug Solder Cups
PC19ZJ Threaded 19 Pin Male Flange Socket Solder Cups
PC19ZPJ Threaded 19 Pin Male Straight Butt Joint Plug Solder Cups
PC32TK Threaded 32 Pin Female Straight Plug Solder Cups
PC32ZJ Threaded 32 Pin Male Flange Socket Solder Cups
PC32ZPJ Threaded 32 Pin Male Straight Butt Joint Plug Solder Cups
PC50TK Threaded 50 Pin Female Straight Plug Solder Cups
PC50ZJ Threaded 50 Pin Male Flange Socket Solder Cups
PC50ZPJ Threaded 50 Pin Male Straight Butt Joint Plug Solder Cups


PC series small circular electrical connectors are small in size, with metal aluminum shell, light in weight, threaded connection, reliable electrical connection and easy to use. Currently there are 4, 7, 10, 19, 32, 50 cores, which can interchanged with Russian PC-4, 7, 10, 19, 32, 50 core products. Widely used in electrical circuit connection on radio and electrical equipments and instruments. There are two installation methods: flange type and cable type.

Plug

Socket

Butt Joint Plug

Casing

Needle Layout

Product Specification

Female Cable Plug

Part Number A B C L
PC-4T 8 14 6 33.4
PC-7T 10 16 8 35
PC-10T 12 18 9 37.8
PC-19T 15.5 22 11 40.6
PC-32T 20.3 26.3 15 41.5
PC50T 25 31 17 42.2


Male Receptacle

Part Number A B C D E M N
PC-4Z 16.5 12 2.2 10 1.4 M10*0.75 M10*0.75
PC-7Z 18 13.2 2.2 12 1.4 M12*0.75 M12*0.75
PC-10Z 20 15 2.2 14 1.4 M14*0.75 M14*0.75
PC-19Z 25 18.5 2.2 18 1.5 M18*0.75 M18*0.75
PC-32Z 28 21.5 2.2 22 1.8 M22*0.75 M22*0.75
PC50Z 33 26 2.2 27 1.9 M27*1 M27*0.75


Butt Joint Plug

Part Number A B C D G M E F L
PC-4ZP 16.5 13 6 2.2 10 M10*0.75 1.4 7 34
PC-7ZP 18 13.2 8 2.2 12 M12*0.75 1.4 7 36
PC-10ZP 20 15 9 2.2 14 M14*0.75 1.4 7 39
PC-19ZP 25 18.5 11 2.2 18 M18*0.75 1.5 7 41
PC-32ZP 28 21.5 15 2.2 22 M22*0.75 1.8 7 42.9
PC50ZP 33 26 17 2.2 27 M27*1 1.9 7 42.2


Applications

  • Railroad Equipment
  • Outdoor LED Lights
  • Industrial Machinery
  • Generator
  • Automotive Manufacturing
  • Sensors
  • Intelligent Manufacturing
  • Construction Equipment
  • Excavators
Connector Type

Receptacle
Orientation

Straight
Contact Type

Male
Number of Positions

50 Pin
Fastening Type

Threaded
Mounting Type

Cable Type
Mounting Feature

Flange
Contact Termination Style

Solder Cup
Suitable Cable

22 – 28AWG
Shell Material

Aluminum Alloy
Shell Finish

Gold Oxide
Insulator Material

PBT
Contact Material

Copper
Color

Golden Yellow/Light Yellow/Yellow Green
Ingress Protection

IP66
Rated Current

5A
Rated Voltage

200V
Operating Temperature

-40℃ – +105℃
PC - 4 T K
Pin: 4, 7, 10, 19, 32, 50
T-Plug, Z-Socket, ZP-Butt Joint Plug, P-Casing
K-Female, J-Male
