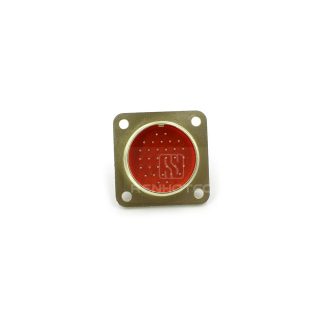

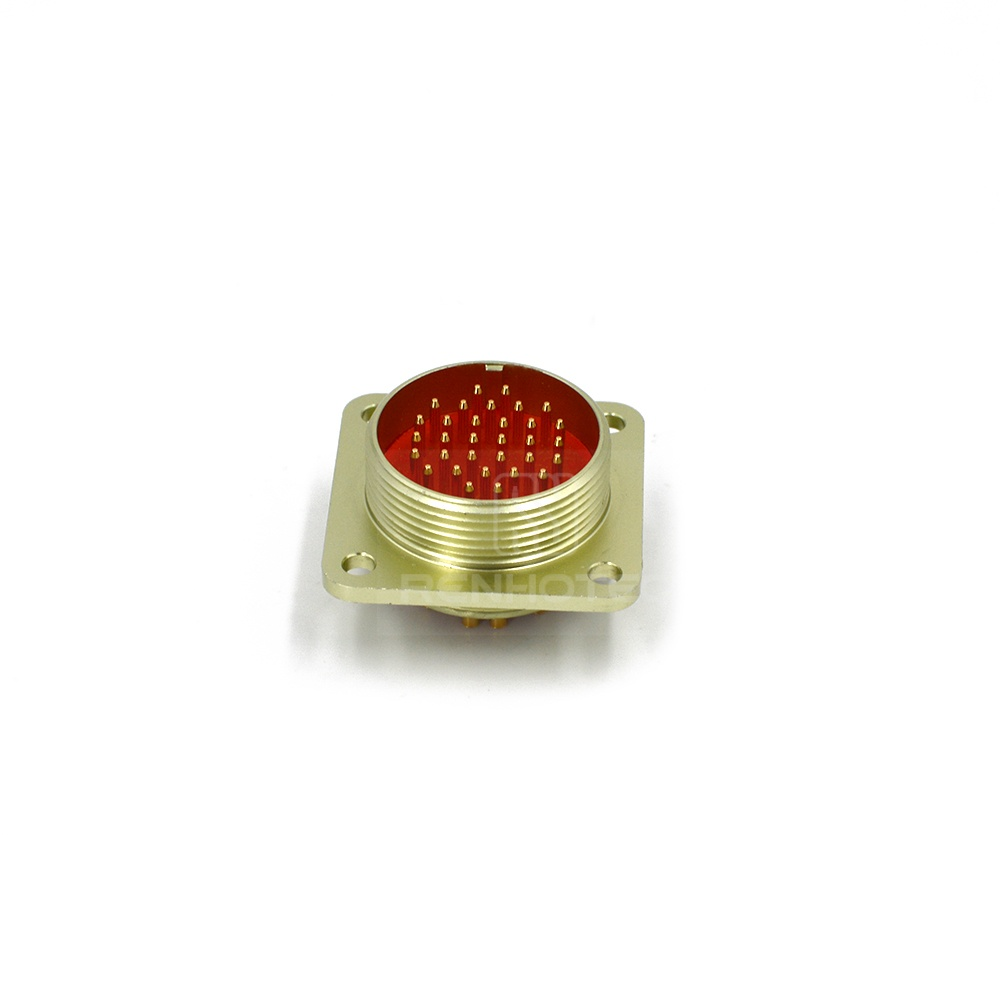

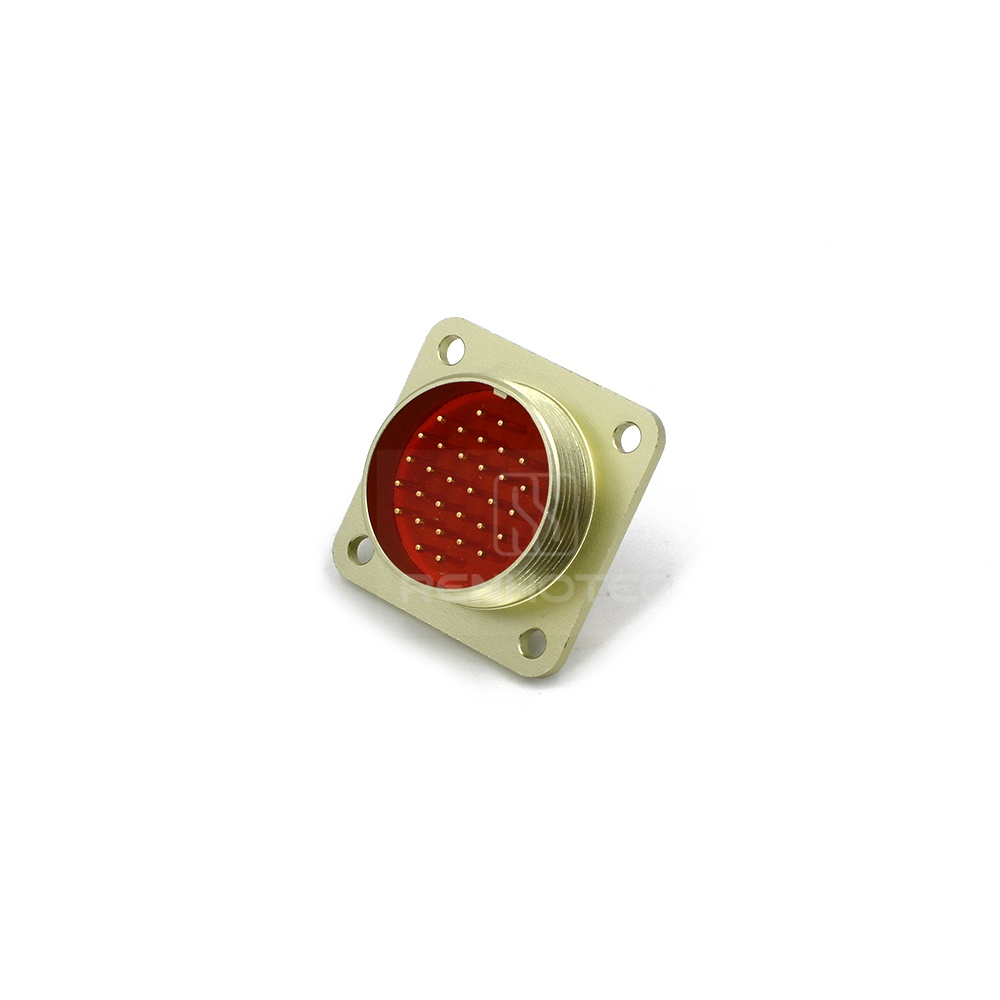

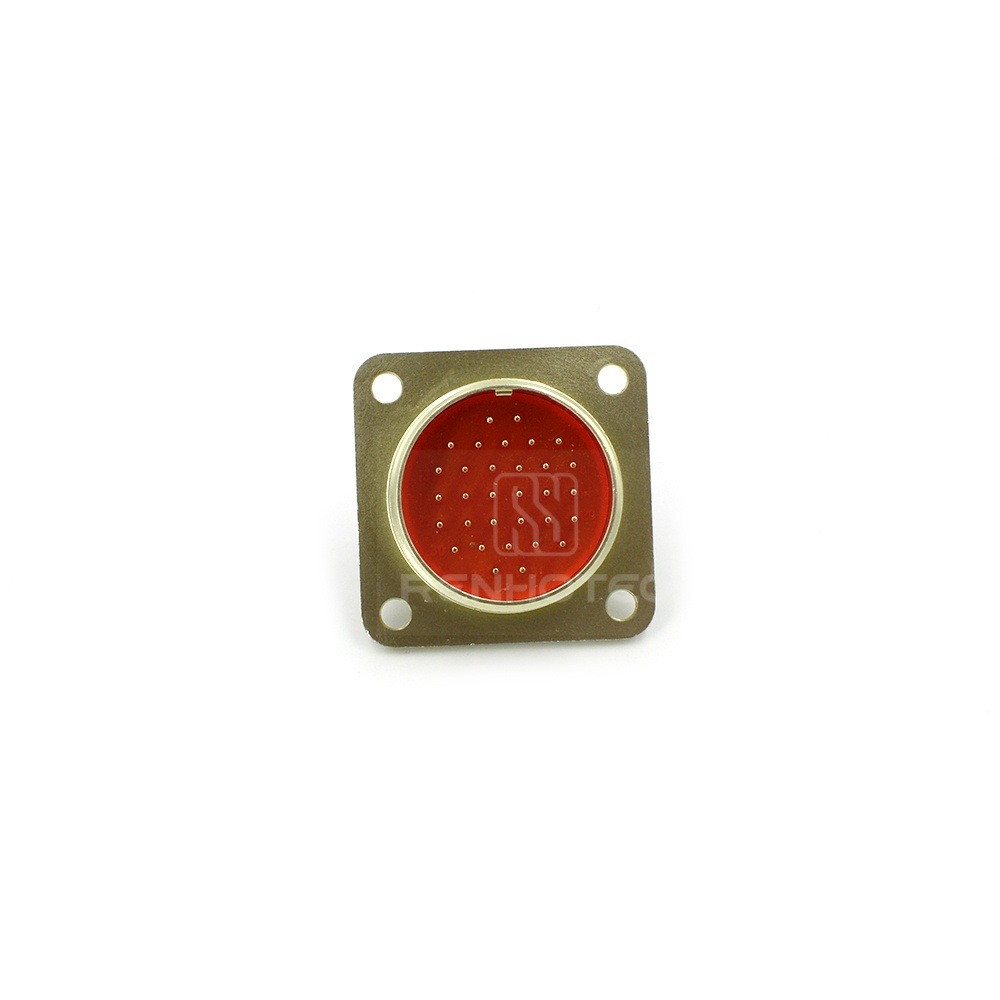

Threaded PC32ZJ 32 Pin Male Flange Socket Solder Cups

Part Number :

PC series small circular electrical connectors are small in size, with metal aluminum shell, light in weight, threaded connection, reliable electrical connection and easy to use. Currently there are 4, 7, 10, 19, 32, 50 cores, which can interchanged with Russian PC-4, 7, 10, 19, 32, 50 core products. Widely used in electrical circuit connection on radio and electrical equipments and instruments. There are two installation methods: flange type and cable type.

Plug

Socket

Butt Joint Plug

Casing

Needle Layout

Product Specification

Female Cable Plug

Part Number	A	B	C	L
PC-4T	8	14	6	33.4
PC-7T	10	16	8	35
PC-10T	12	18	9	37.8
PC-19T	15.5	22	11	40.6
PC-32T	20.3	26.3	15	41.5
PC50T	25	31	17	42.2

Male Receptacle

Part Number	A	B	C	D	E	M	N
PC-4Z	16.5	12	2.2	10	1.4	M10*0.75	M10*0.75
PC-7Z	18	13.2	2.2	12	1.4	M12*0.75	M12*0.75
PC-10Z	20	15	2.2	14	1.4	M14*0.75	M14*0.75
PC-19Z	25	18.5	2.2	18	1.5	M18*0.75	M18*0.75
PC-32Z	28	21.5	2.2	22	1.8	M22*0.75	M22*0.75
PC50Z	33	26	2.2	27	1.9	M27*1	M27*0.75

Butt Joint Plug

Part Number	A	B	C	D	G	M	E	F	L
PC-4ZP	16.5	13	6	2.2	10	M10*0.75	1.4	7	34
PC-7ZP	18	13.2	8	2.2	12	M12*0.75	1.4	7	36
PC-10ZP	20	15	9	2.2	14	M14*0.75	1.4	7	39
PC-19ZP	25	18.5	11	2.2	18	M18*0.75	1.5	7	41
PC-32ZP	28	21.5	15	2.2	22	M22*0.75	1.8	7	42.9
PC50ZP	33	26	17	2.2	27	M27*1	1.9	7	42.2
