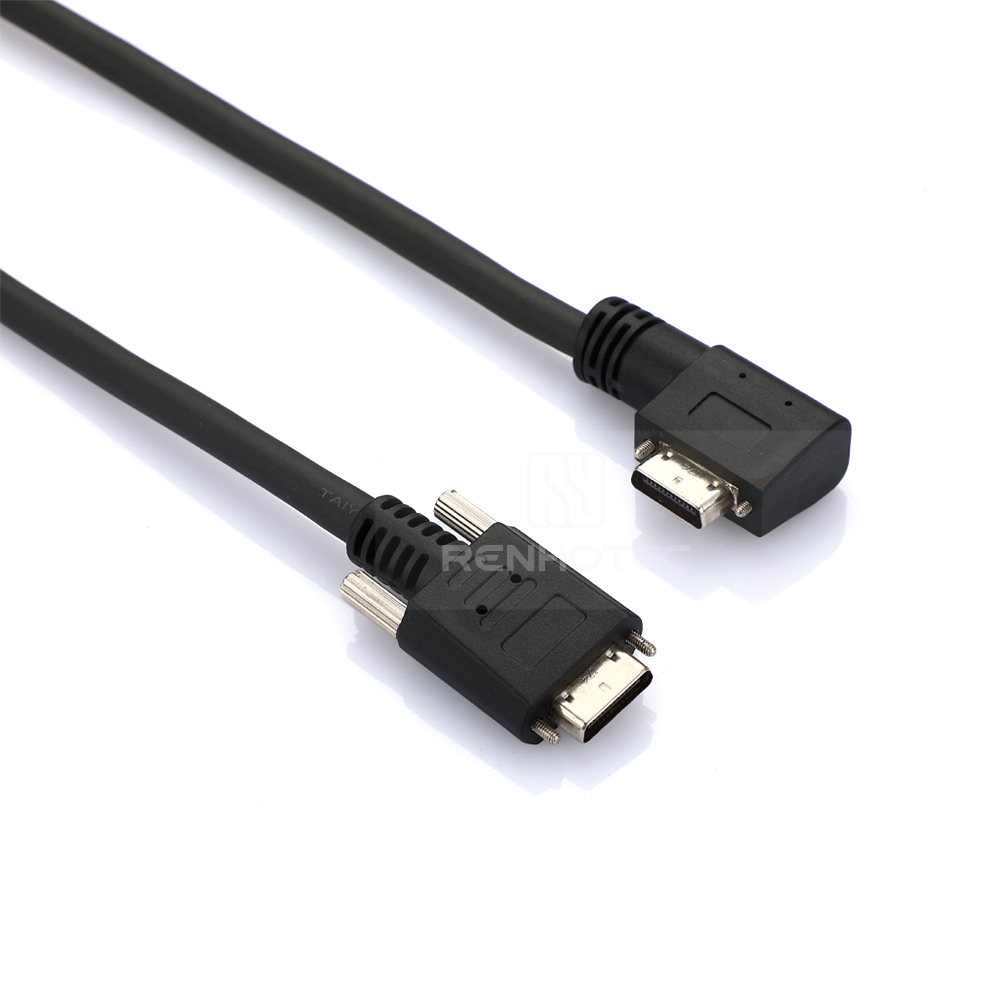

SDR Plug to SDR Right Angle Plug Camera Link Cable Assemblies with Screw Lock for Industrial Machine Vision - Image 4

SDR Plug to SDR Right Angle Plug Camera Link Cable Assemblies with Screw Lock for Industrial Machine Vision

SKU: I01-I01-10004-100 Categories: ,
  • Supports high-speed data transfer and is capable of transferring large amounts of image data.
  • With anti-interference and anti-jamming ability, it can work in industrial environment.
  • Suitable cable lengths and connector types can be selected practically to meet the requirements of their systems.
  • Compatible with cameras and image acquisition devices from different vendors, realizing interoperability between devices.
Get a Quote

Product Diagram

Compatibility Cameras List

Compatible Brand Compatible Camera Series Interface Type Typical Application
Baumer HXC / SXC Series Camera Link Base (SDR-26) Industrial automation
CIS VCC Series Camera Link Base Industrial imaging
JAI PMCL / CL Series Camera Link Base (Mini Camera Link) Machine vision systems
Sony XCL Series Camera Link Base Industrial inspection
ILLUNIS CMV Series Camera Link Base Scientific imaging
Allied Vision Goldeye CL Series Camera Link Base Thermal & scientific imaging
FLIR TAU2 / Boson Camera Link Systems Camera Link Base Thermal imaging systems
Imperx Tiger / Bobcat Series Camera Link Base High-speed image acquisition
Opto Engineering COE HR AS Series Camera Link Base Optical inspection systems
Teledyne DALSA AViiVA / ELiiXA+ / Genie Nano-CL / Linea / Piranha Series Camera Link Base Line scan & industrial inspection
Basler ace classic / beat / racer Series Camera Link Base Factory automation

Note: Compatibility may vary depending on camera pin assignment, PoCL support, and frame grabber configuration. Custom pinout and cable length services are available upon request.

Product Types

SDR Male

SDR Female

MDR Male

MDR Female

Application

  • Industrial imaging technology
  • Machine Vision System
  • Industrial cameras
  • Scan on pipeline processing
  • Product testing
  • Image recognition
  • Factory Automation System
Conversion Style

SDR to SDR
1st Connector Series

SDR Plug
1st Connector Number of Positions

26 Pin
1st Connector Orientation

Right Angle
2nd Connector Series

SDR Plug
2nd Connector Number of Positions

26 Pin
2nd Connector Orientation

Right Angle
Shielding

Shielded
Operating Temperature

-40℃ – +105℃
