HR25-7TP-8S Power I/O Cable High Soft Gray Dot Imaging Industrial Camera

SKU: I01-H01-10010-500 Categories: Power I/O Cables, Industrial Camera Cables

Braided from tinned copper, not easy to oxidize, longer service life. Tinned end for easy installation
The connector adopts foolproof interface design, which improves working efficiency and is not easy to make mistakes
Wrapped with special PVC material, oil and abrasion resistant, more suitable for use in industrial environments
Standard cables and drag chain cables are available, and the drag chain cables have passed more than 10 million times of drag chain test
UL compliant with flame retardant rating up to VW-1
RoHS 2.0 and CE compliant

Get a Quote Talk To Us

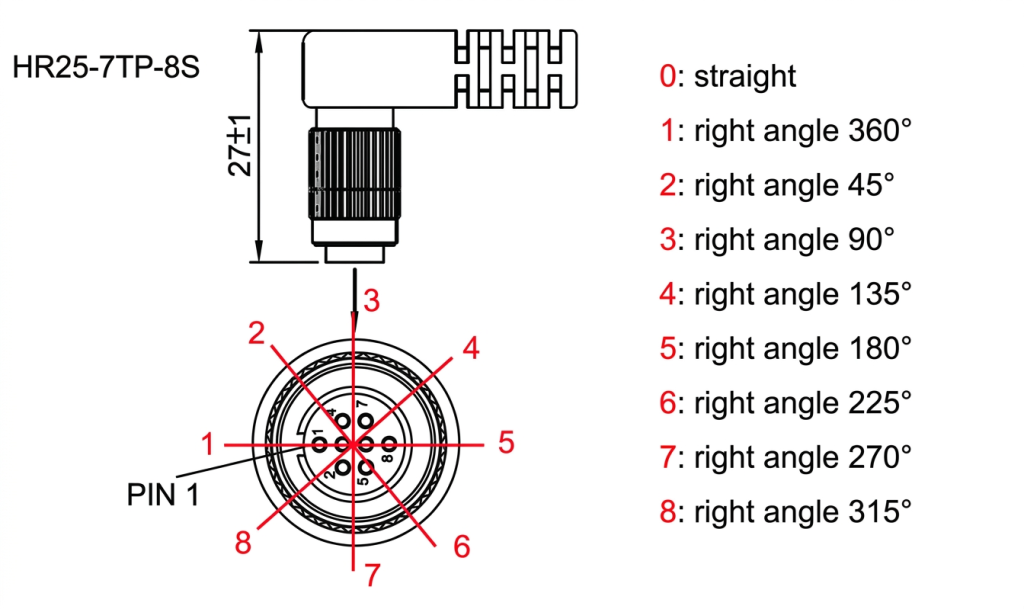

HR 8 Pin Connector Specifications

Product Features

A variety of connector types and cable sizes are available.

A variety of key directions are available, allowing you to install worry-free.

We can customize the product according to customer requirements. Depending on the application, you can use the harness with a power adapter. You can also connect the tail to terminals or customize it with M-Series I/O cables.

1st Connector Series	HRS Jack
1st Connector Number of Positions	8 Pin
1st Connector Orientation	Straight
Suitable Cable	26AWG
Cable Assembly Type	Individual
Operating Temperature	-55℃ – +85℃

Compatible with leading machine vision camera brands featuring HR 8-pin male I/O interfaces

Camera Brand	Compatible Series	Interface Type	Compatibility Notes
DAHENG Imaging	MER2 / ME2P / MARS / MERCURY2	GigE / USB3 Vision	HR 8-pin I/O models
Allied Vision	Mako G / Guppy / Manta	GigE / IEEE1394	HR HR25 8-pin
Basler	ace / racer / runner	GigE Vision	Selected HR I/O models
Teledyne FLIR	Blackfly / Flea / Grasshopper	GigE / USB3	Selected 8-pin GPIO versions
IDS Imaging	uEye GigE / USB3	GigE / USB3 Vision	HR-equipped models
HIKROBOT	MV-CE / MV-CS	GigE / USB3	Selected trigger I/O models
Baumer	LX / CX Series	GigE Vision	Selected models
JAI	GO Series	GigE / USB3	HR-compatible versions
