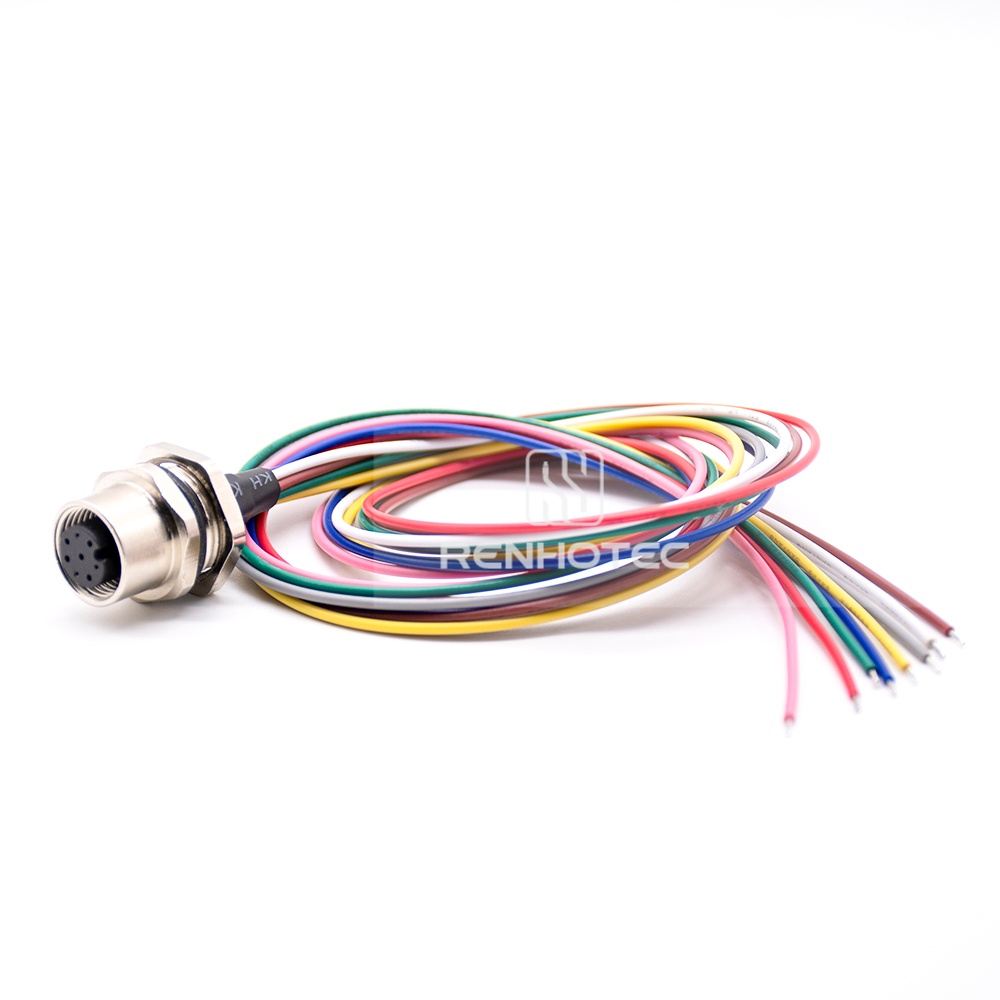

M12 Female Panel Mount Receptacle with Wires Rear Fastened Straight PG9

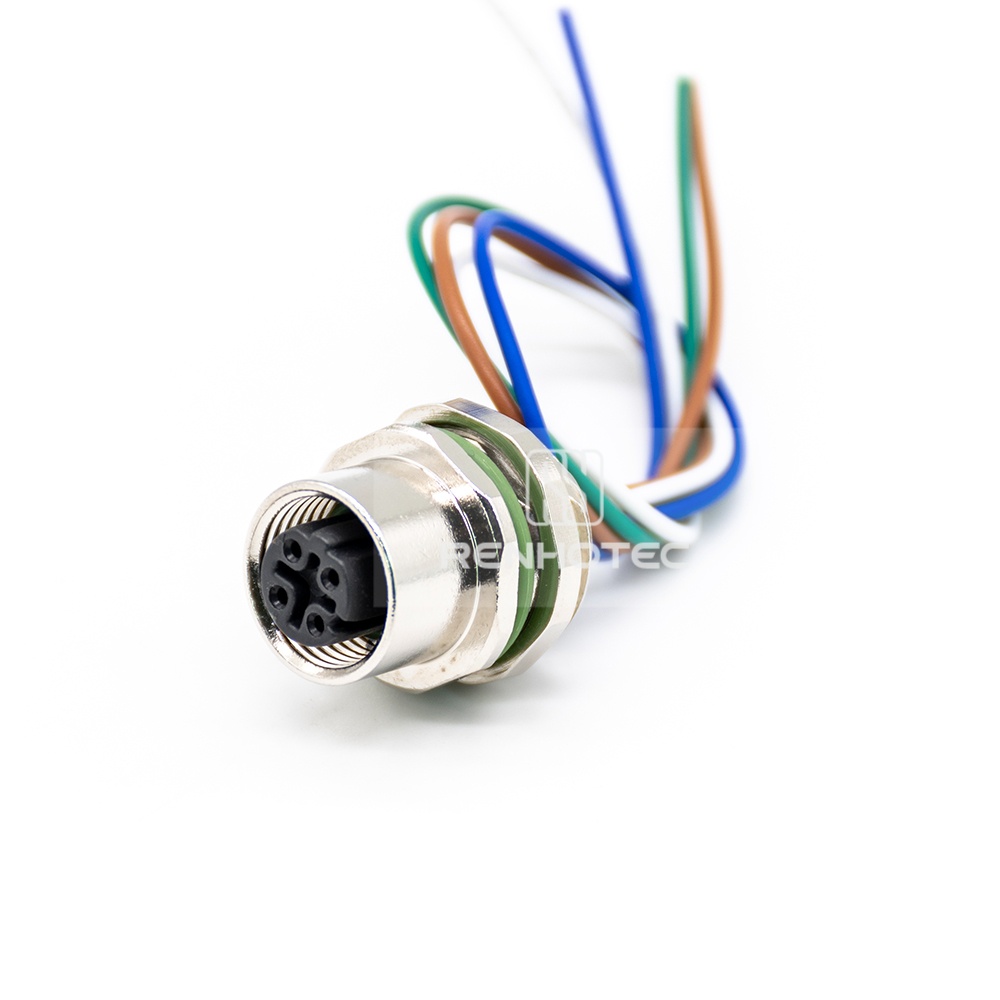

M12 Female Panel Mount Receptacle with Wires Rear Fastened Straight PG9 - Image 2

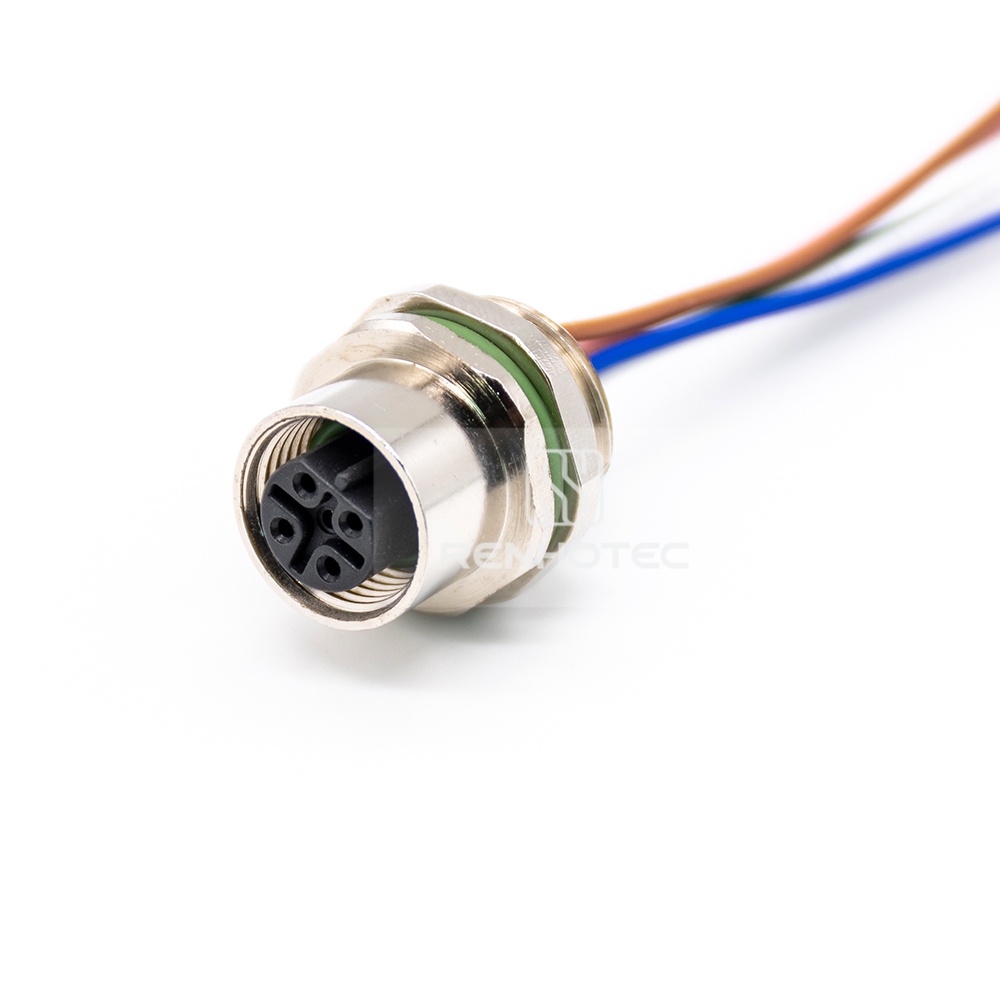

M12 Female Panel Mount Receptacle with Wires Rear Fastened Straight PG9 - Image 3

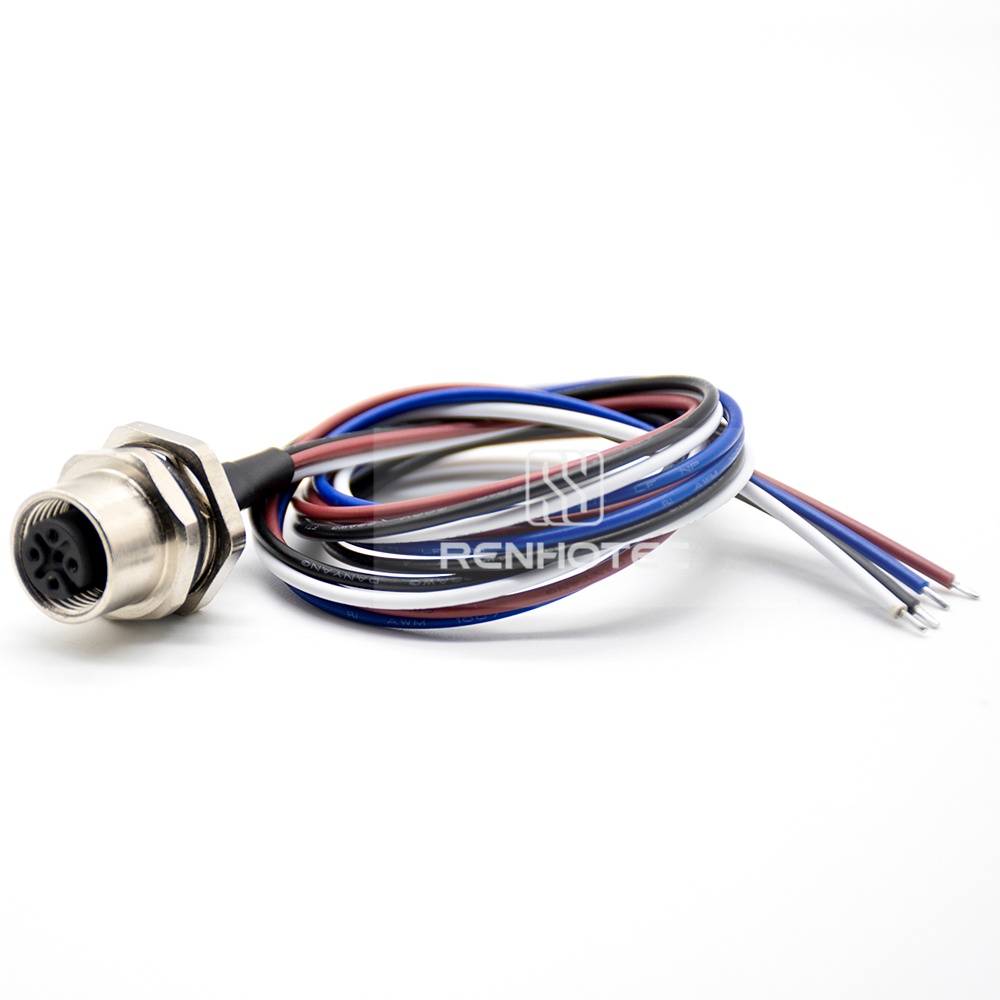

M12 Female Panel Mount Receptacle with Wires Rear Fastened Straight PG9 - Image 4

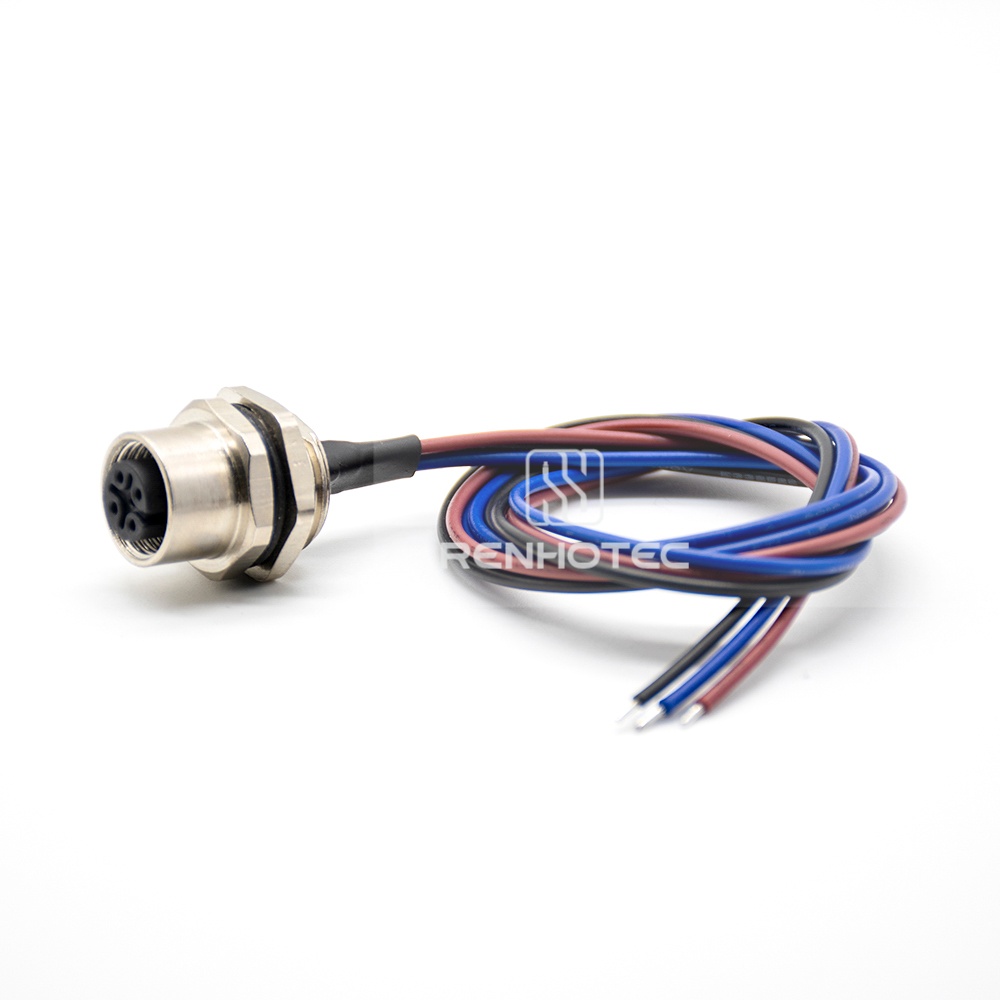

M12 Female Panel Mount Receptacle with Wires Rear Fastened Straight PG9 - Image 5

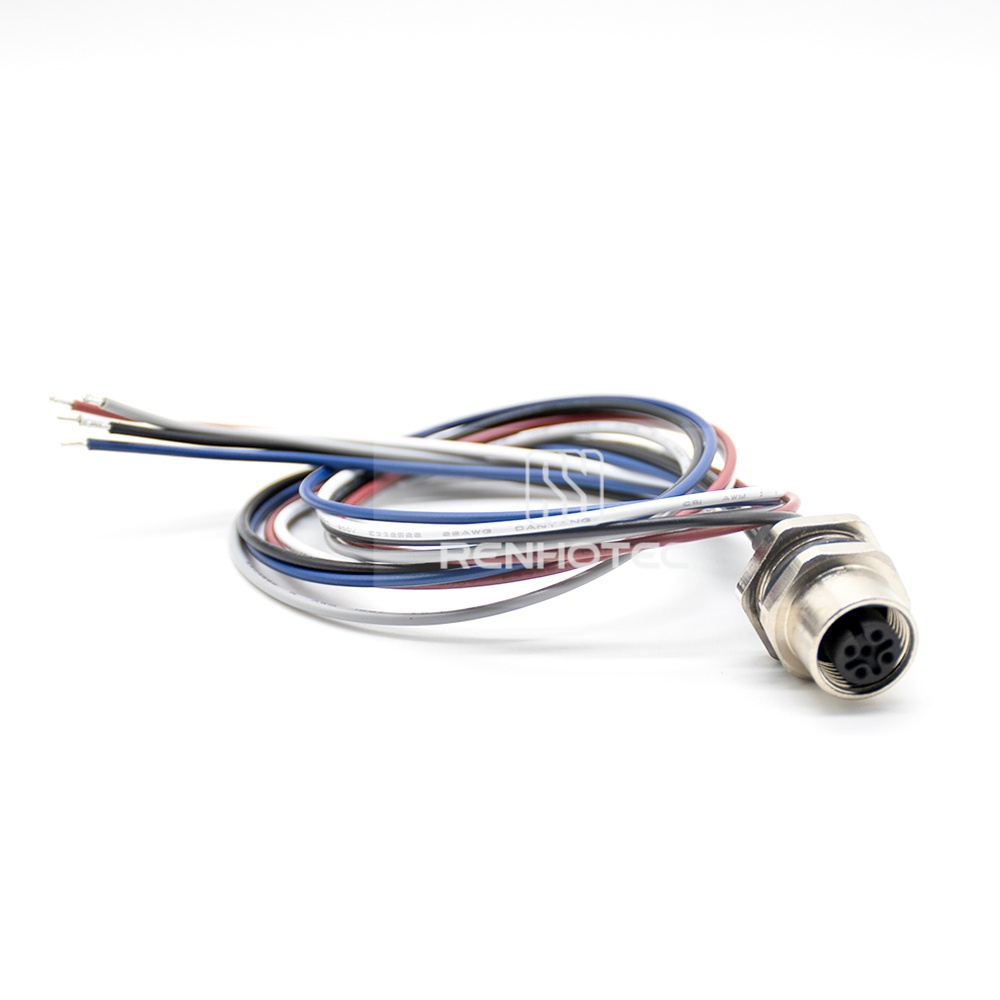

M12 Female Panel Mount Receptacle with Wires Rear Fastened Straight PG9 - Image 6

M12 Female Panel Mount Receptacle with Wires Rear Fastened Straight PG9

SKU: N/A Categories: M Series, M12, M12 Assembly Cables

Key

Number of Positions

Clear

Get a Quote Talk To Us

Attributes

Key	A, B, D
Number of Positions	12Pin, 2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin, 8 Pin, 17 Pin
Contact Type	Female
Orientation	Straight
Body Material	Brass, Nickel Plated
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Solder Cup
Insulation Material	PA66+GF
Panel Cut-out Dimensions	PG9
Wire Material	PVC
Seal	Black, NBR
Shielding	Unshielded
Protection Rating	IP67(Mated)
Contact Resistance	≤5MΩ
Insulation Resistance	≥100MΩ
Mating Cycles	≥500
Temperature range	-40℃ ~ +85℃
