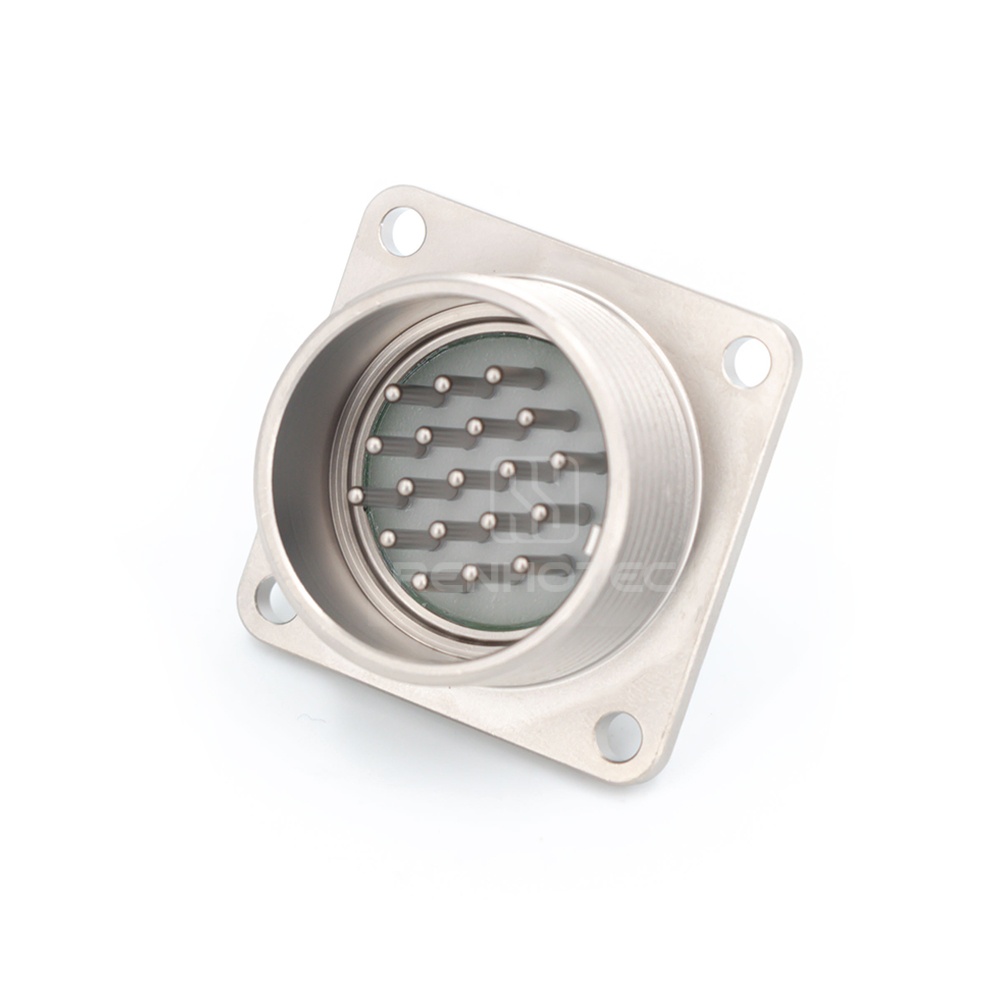

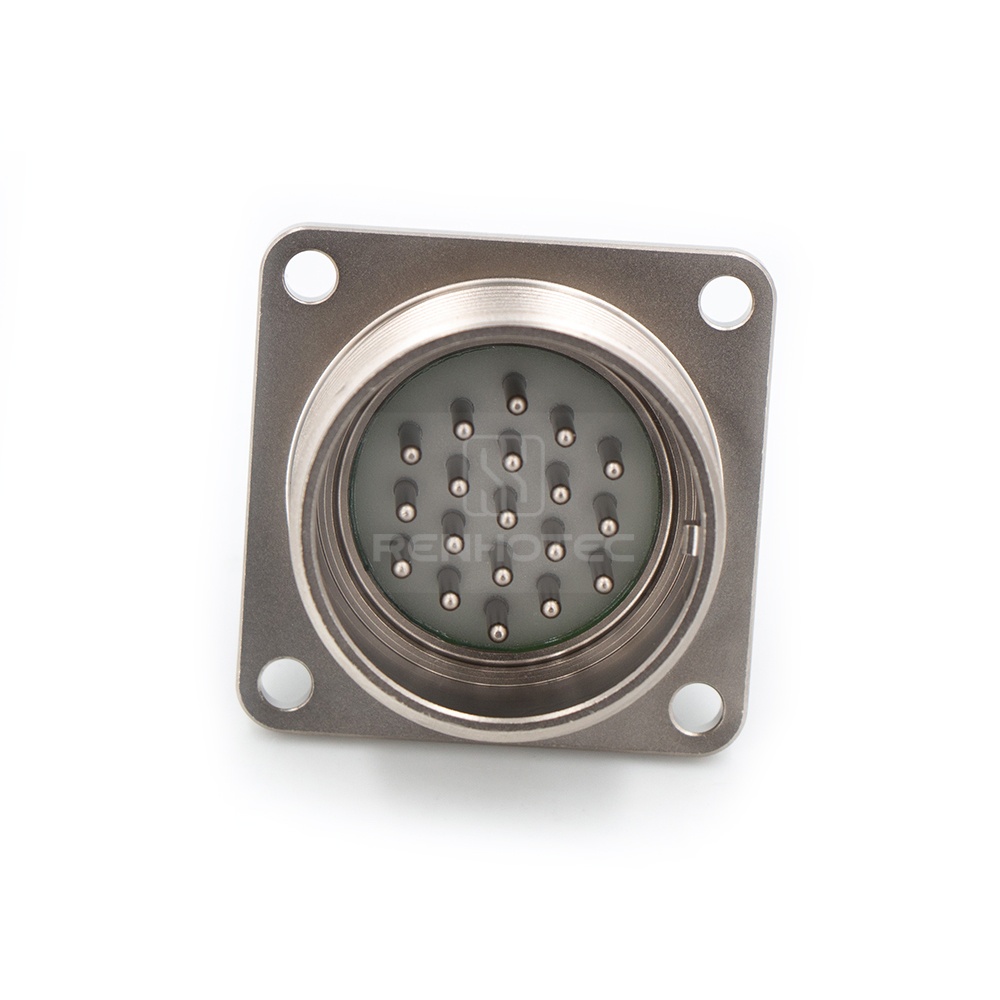

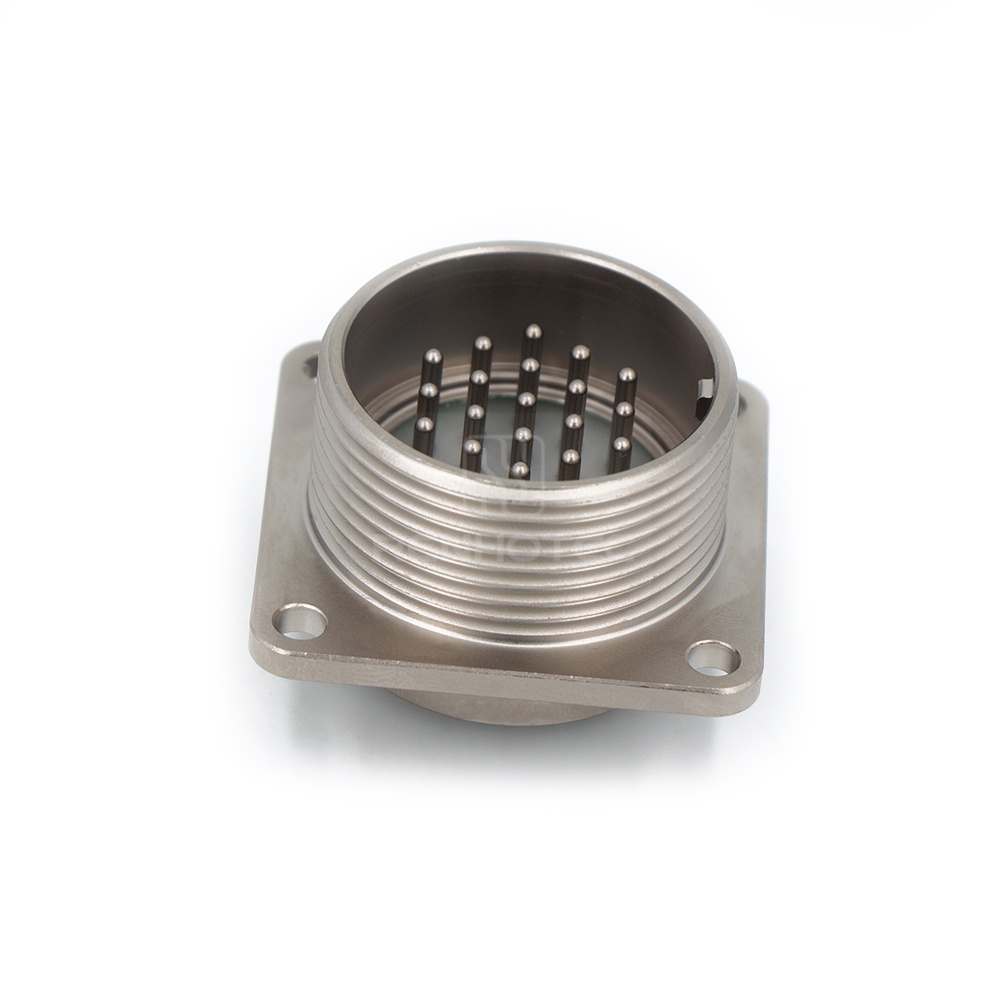

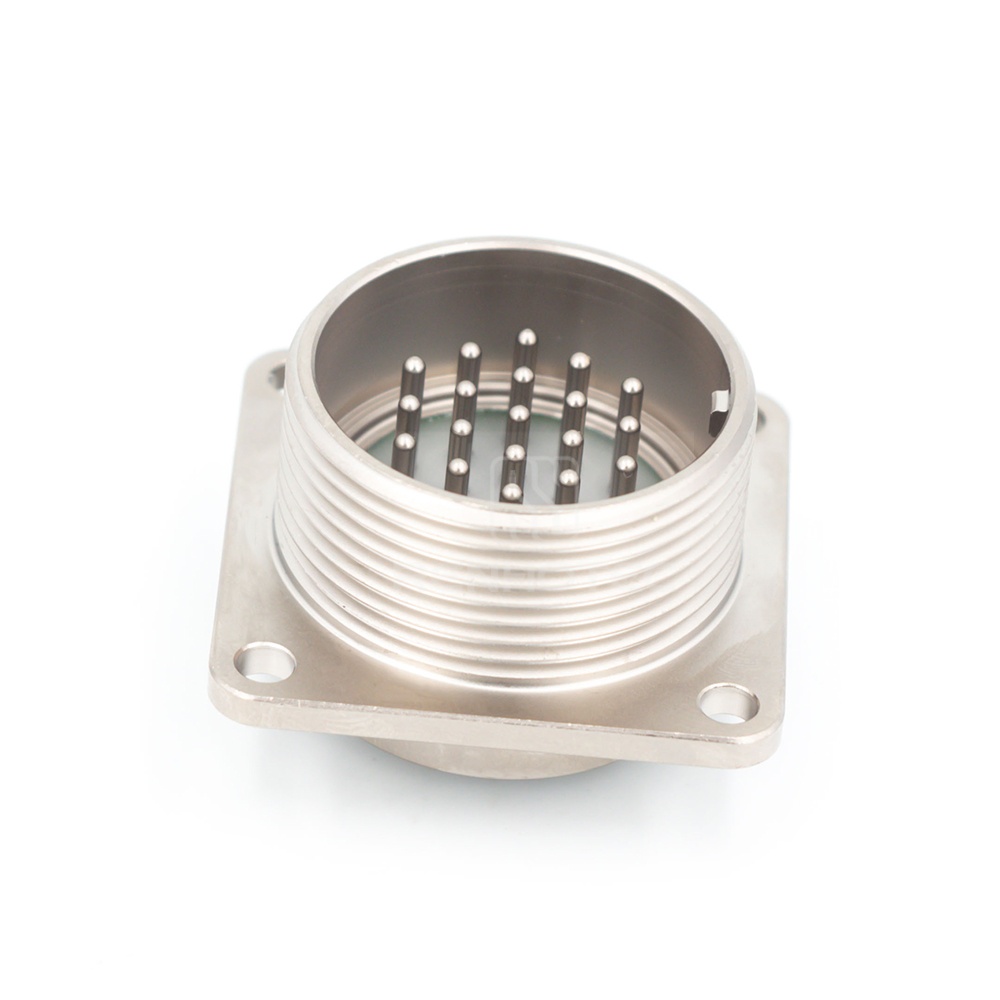

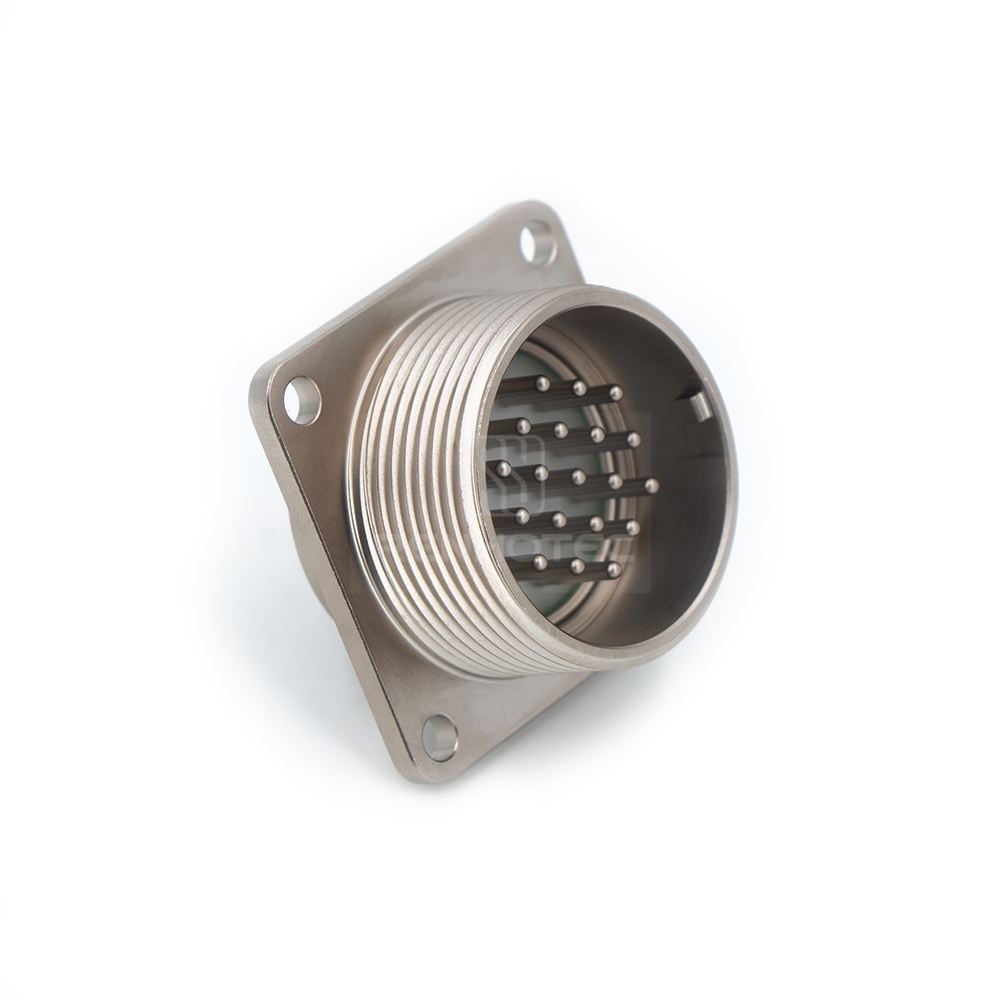

2РМГД27БПЭ19Ш5Е2 2PM Connector Shell Size 27 19 Pin Flange Male Socket, Sealed Type, With Shielded Straight Back Shell

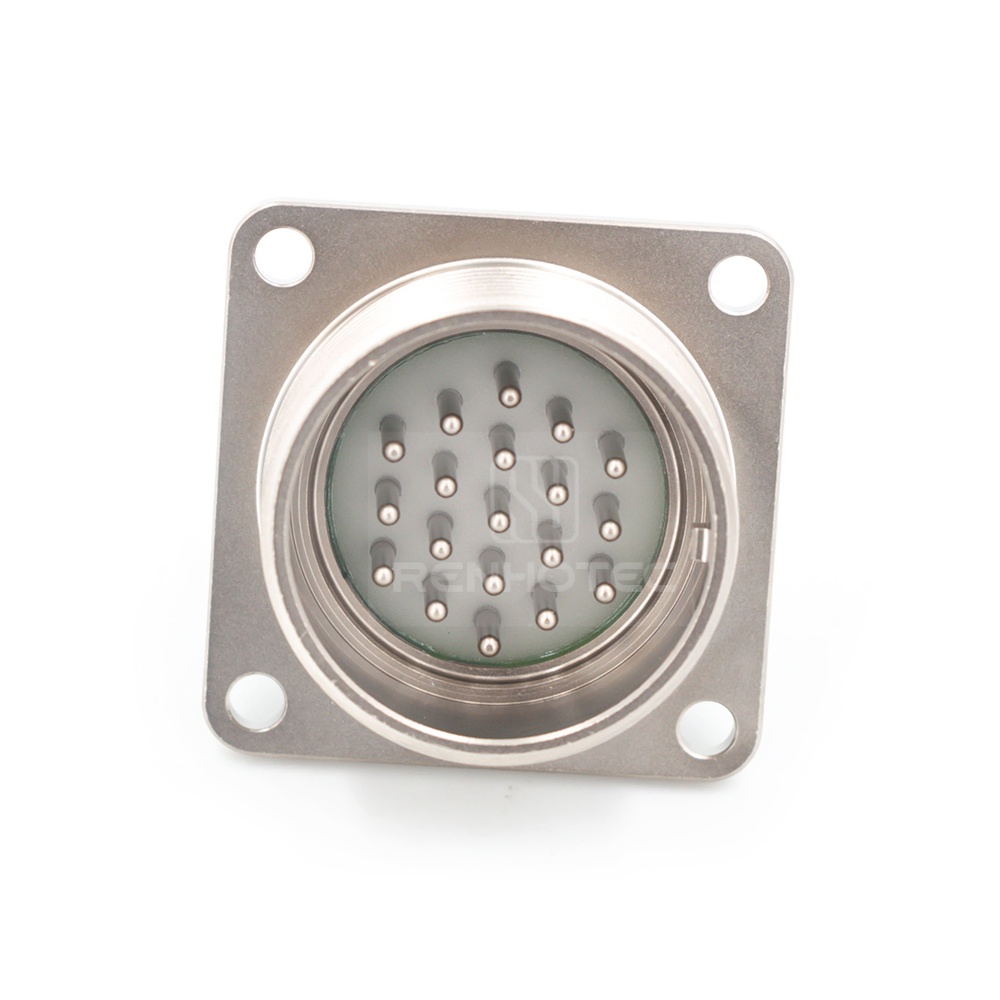

2РМГД27БПЭ19Ш5Е2 2PM Connector Shell Size 27 19 Pin Flange Male Socket, Sealed Type, With Shielded Straight Back Shell - Image 2

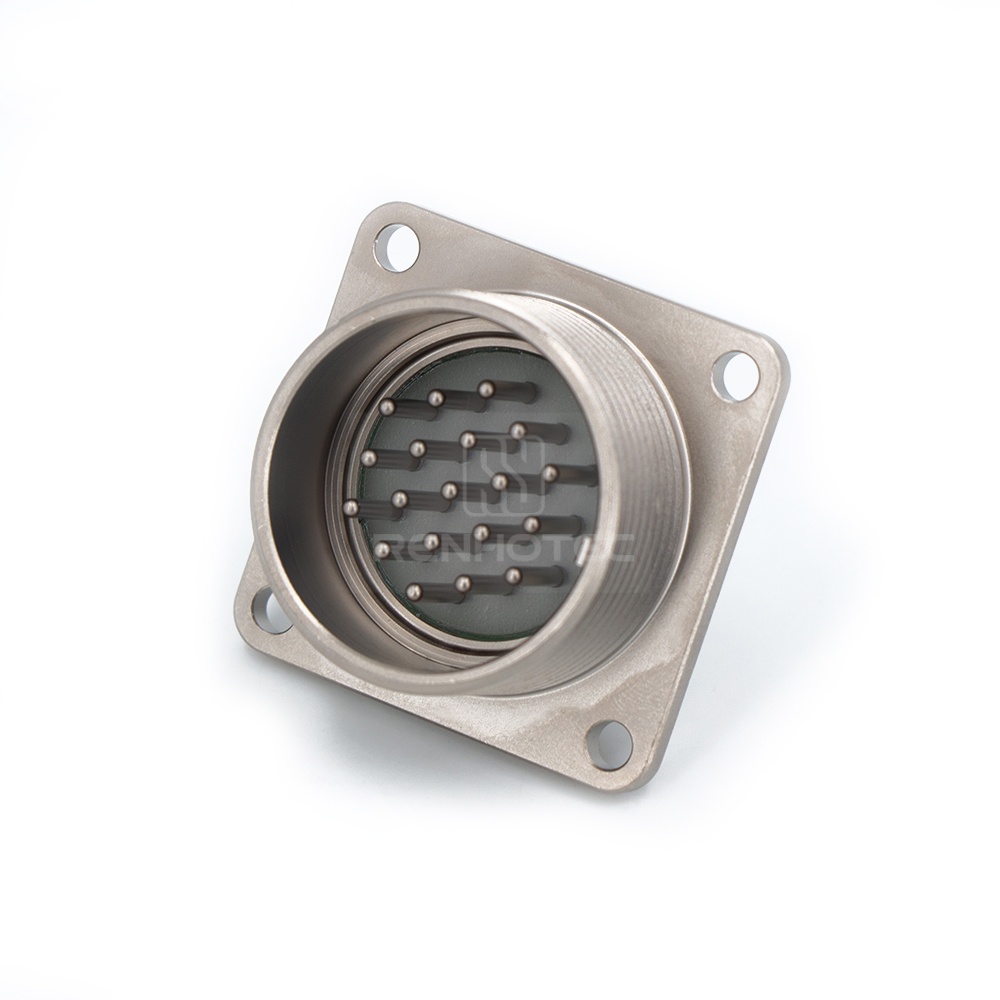

2РМГД27БПЭ19Ш5Е2 2PM Connector Shell Size 27 19 Pin Flange Male Socket, Sealed Type, With Shielded Straight Back Shell - Image 3

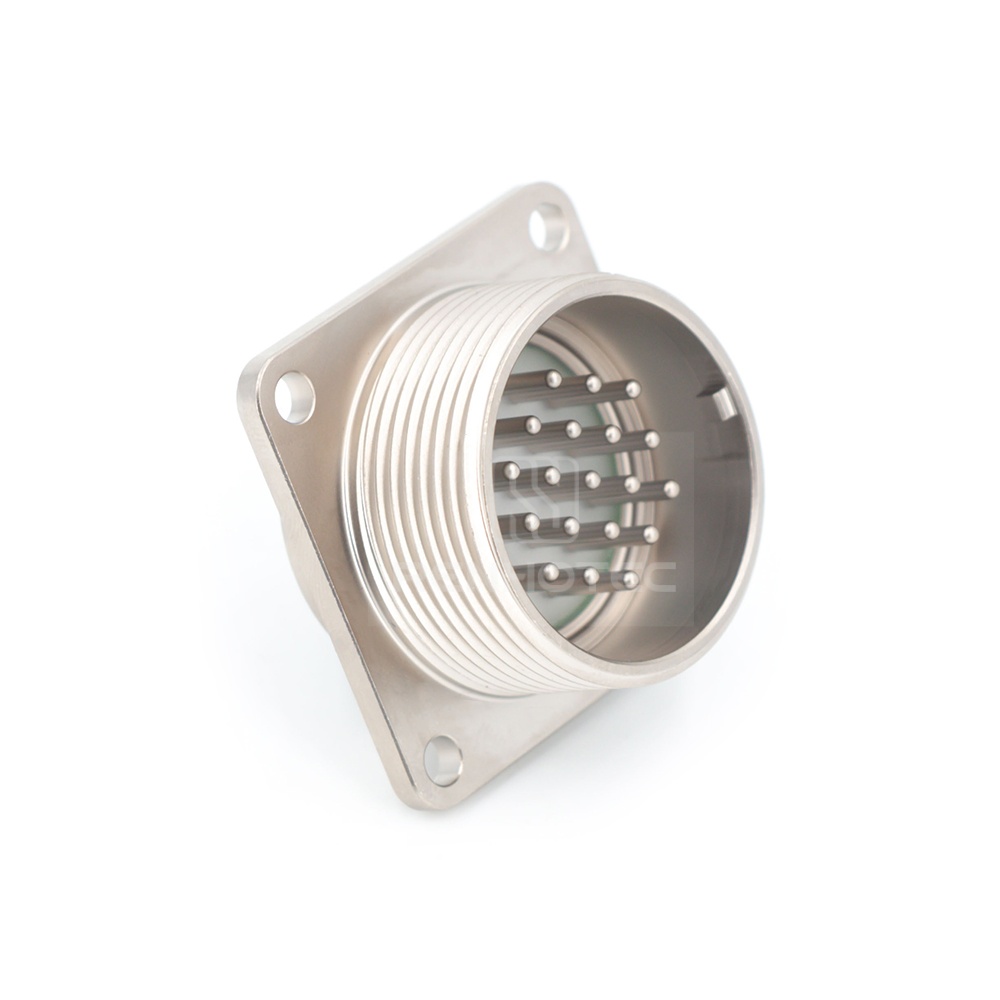

2РМГД27БПЭ19Ш5Е2 2PM Connector Shell Size 27 19 Pin Flange Male Socket, Sealed Type, With Shielded Straight Back Shell - Image 4

2РМГД27БПЭ19Ш5Е2 2PM Connector Shell Size 27 19 Pin Flange Male Socket, Sealed Type, With Shielded Straight Back Shell

SKU: 2PM27J19MA3 Categories: ,

• 2PM27J19MA3 connector shell size 27, 19-pin flange male socket for reliable industrial and transportation equipment connections.
• Features a sealed type design with shielded straight back shell, ensuring environmental protection and EMI/RFI interference resistance.
• Compliant with industry standards for secure signal and power transmission in demanding electrical applications.
• Its robust construction offers durable performance for control systems and machinery interfaces.

Get a Quote

2PM Series Circular Connectors, Sealed Type

2PM series circular electrical connectors are widely used for electrical connection and signal transmission between electrical equipment in railway system, trams and trolley bus etc. Its unique structure can make up for the shortcomings of many other similar connectors, making it more convenient and scientific to use. The cable plug and panel socket are threaded connection.

The panel socket has a glass sintered sealed socket (M) and a glass sintered sealed wall socket (C), which can simultaneously meet the use requirements in special environments such as vacuum, sealing, and high temperature. Now there are mainly 2PM14/18/22/24 /27/30/33/36 and other specifications, its special structure and performance have won the general recognition of the market.

Russian 2PM Series Sealed Type Circular Connector-2
Russian 2PM Series Sealed Type Circular Connector-1
Russian 2PM Series Sealed Type Circular Connector-3

Contact Layout Diagrams for 2PM

English P/N

2RMGD27BPE19Sh5E2
Original P/N

2РМГД27БПЭ19Ш5Е2
Connector Type

Orientation

Gender

Male
Shell Size

2PM 27
Number of Positions

Contact Termination

Solder
Fastening Type

Durability

500
Shell Material

Stainless Steel
Contact Material

Copper with nickel-plated
Insulation Material

Glass sintered
Rated Current

5-30A
Rated Voltage

≤700V
Operating Temperature

-60℃ – +200℃
2PM 22 K(J) 4 Z/M/C
Q/W		 A/B 1/2/3
Series
Shell Slze: 2PM14/18 22/24/27/30/33/36/39/42/45
K: Female J: Male
Number of Contacts
Z: Non-sealed standard 4-pin flange plug
M: Sealed 4-pin flange socket
C: Sealed Bulkhead receptacle
Q: Straight cable plug
W: Angled cable plug
A: Shielded tail attachment, B: Unshielded tail attachment
1: Gold plated pin, 2: Silver plated pin, 3: Nickel plated pins
