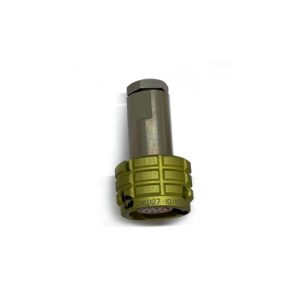

ZH127 Serial Connector Shell Size 10 10pin Female Plug with Straight Tail Attachment - СНЦ127-10/10РП126-1-В

ZH127 Serial Connector Shell Size 10 10pin Female Plug with Straight Tail Attachment – СНЦ127-10/10РП126-1-В

SKU: ZH127-10/10P12Q-1-B Categories: ,

Buy the ZH127 Serial Connector Shell Size 10 10pin Female Plug with Straight Tail Attachment – СНЦ127-10/10РП126-1-В for your electronic connections. This high-quality plug offers easy installation and reliable performance.

Get a Quote

Part Number :

Russian Chinese Description

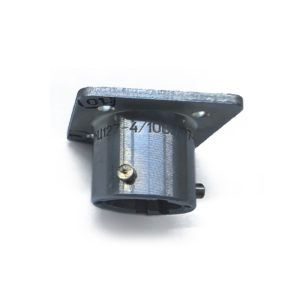

ZH127-4/10B12Z-1-B СНЦ127-4/10ВП127-1-В Zh127 Serial Connector Shell Size 10 4pin Male Flange Socket Solder
ZH127-4/10P12Q-1-B СНЦ127-4/10РП126-1-В Zh127 Serial Connector Shell Size 10 4pin Female Plug with Straight Tail Attachment
ZH127-10/10B12Z-1-B СНЦ127-10/10ВП127-1-В Zh127 Serial Connector Shell Size 10 10pin Male Flange Socket Solder
ZH127-10/10P12Q-1-B СНЦ127-10/10РП126-1-В Zh127 Serial Connector Shell Size 10 10pin Female Plug with Straight Tail Attachment

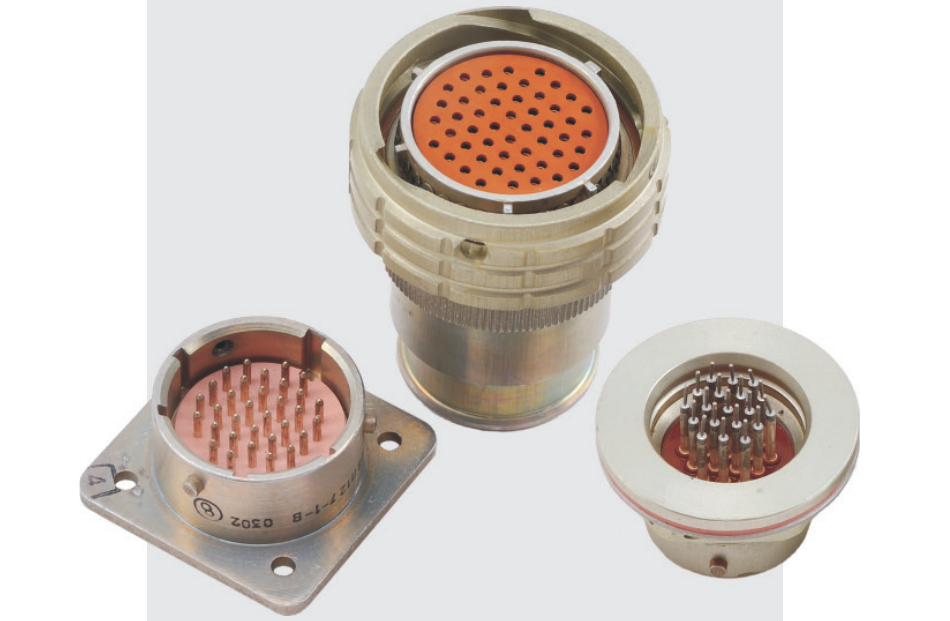

ZH127 series bayonet connectors mainly adopt Russian connector technology. It is engineered for reliable performance in both DC and AC circuits, supporting frequencies up to 3 MHz and voltages up to 700 V (amplitude). It consists of plugs and sockets, with multi-level key positions for installation. The coupling mode of the connector is bayonet type. The Socket without tail attachment and the Plug with metal tail attachment.This type of connectors are widely used in low-frequency electronic systems, including a large number of electrical equipment.

ZH127 are interchangeable & intermateable with connectors of OHS-BC, Ohs-BC, ONTs-BS, ONTs-BS, SNTs127, SNC127.

Electrical Performance

Connector Type

Plug with straight tail attachment

Socket Flange

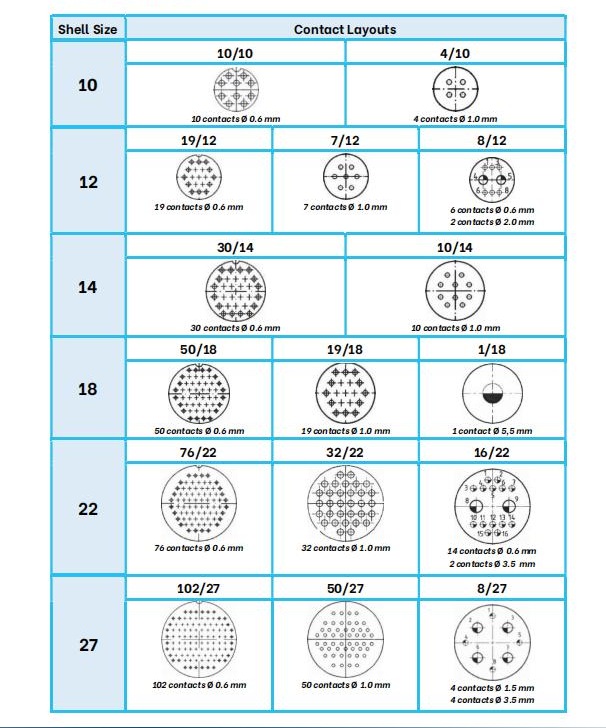

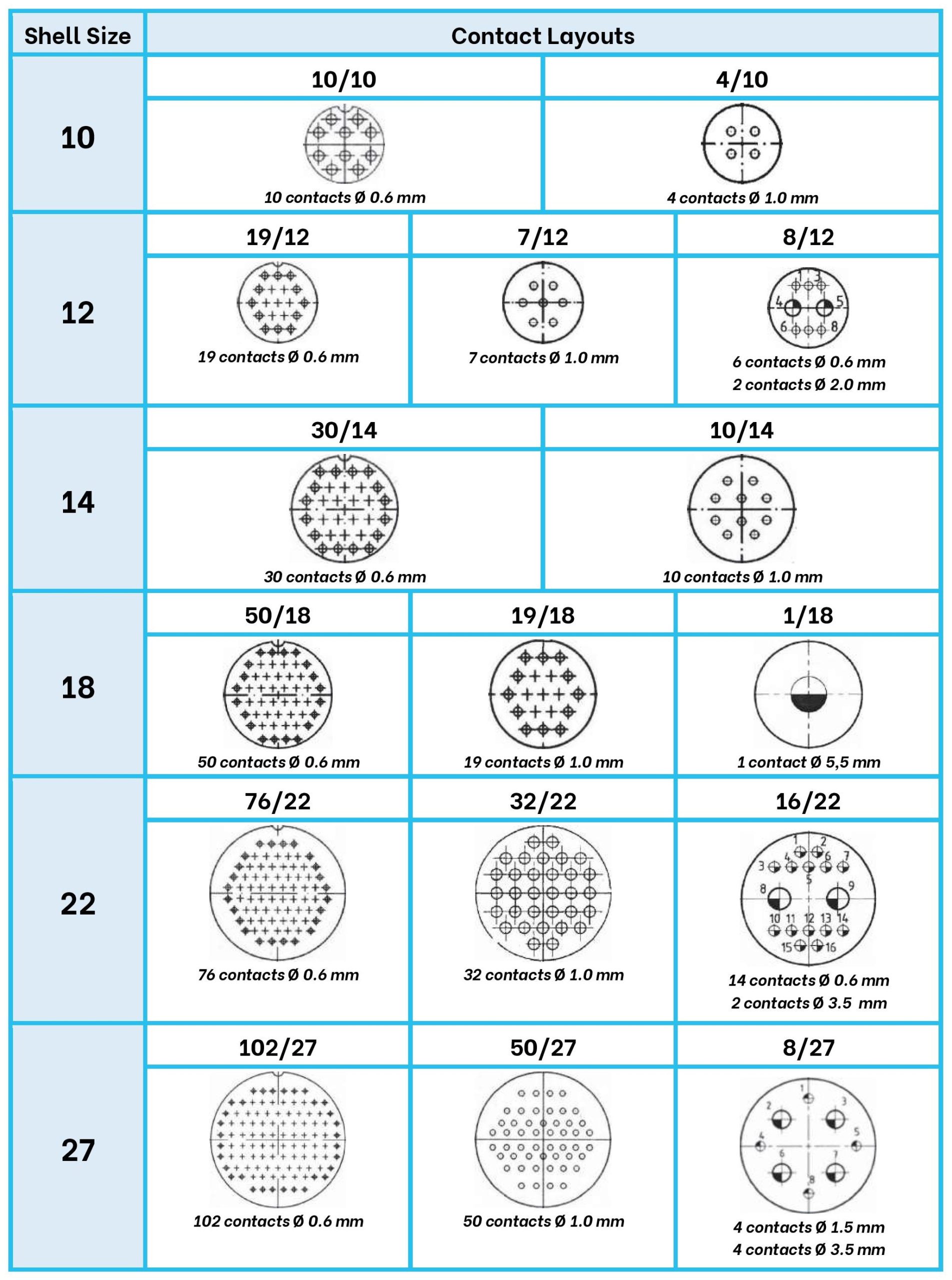

Contact Layouts

Connector Type

Contact Material

Gold/Silver plating
Contact Type

Female
Fastening Type

Mounting Type

Cable Mount
Insulating Materials

Insulation Impedance

≥5000MΩ
Mechanical and Working Life

500 Cycles
Number of Positions

Operating Temperature

-60 ℃ ～ +105 ℃
Orientation

Shell Material

Aluminum Alloy
Shell Size

10
Vibration

1-5000Hz 20g
Contact Dia.

Ø 0.6 mm
Operating Current

1.8A
Operating Voltage

150V
Contact Resistance

≤5MΩ
