Solenoid valves are the electromechanical switches that control the flow of air, water, oil or gas by turning an electrical signal into mechanical action — the backbone of automated fluid and pneumatic systems. Our solenoid valve connectors provide the vital electrical link between the valve coil and your control system. Engineered to EN175301-803 (DIN 43650) with integrated M8/M12 plug-and-play connectors and durable PA66 construction, they ensure a secure, standardized connection that keeps production lines running. Ideal for industrial automation, pneumatics, hydraulics, packaging and process control.
Product composition
Product Type
| Type A | Type B | Type C | |
|---|---|---|---|
| Contact spacing | 18 mm | 11 mm | 9.4 mm |
| Pin layout | 2+PE, 2+2PE, 3+PE | 2+PE, 2+2PE | 2+2PE |
| Body size | Large (standard) | Medium | Mini (compact) |
| Typical application | Most standard/larger solenoid valves; general industrial automation | Medium / smaller valves, space-limited control panels | Compact / low-profile valves, tight installations |
3-Step Selection Guide
Measure Spacing
Measure the distance between the centers of the two main coil pins.
Match Type

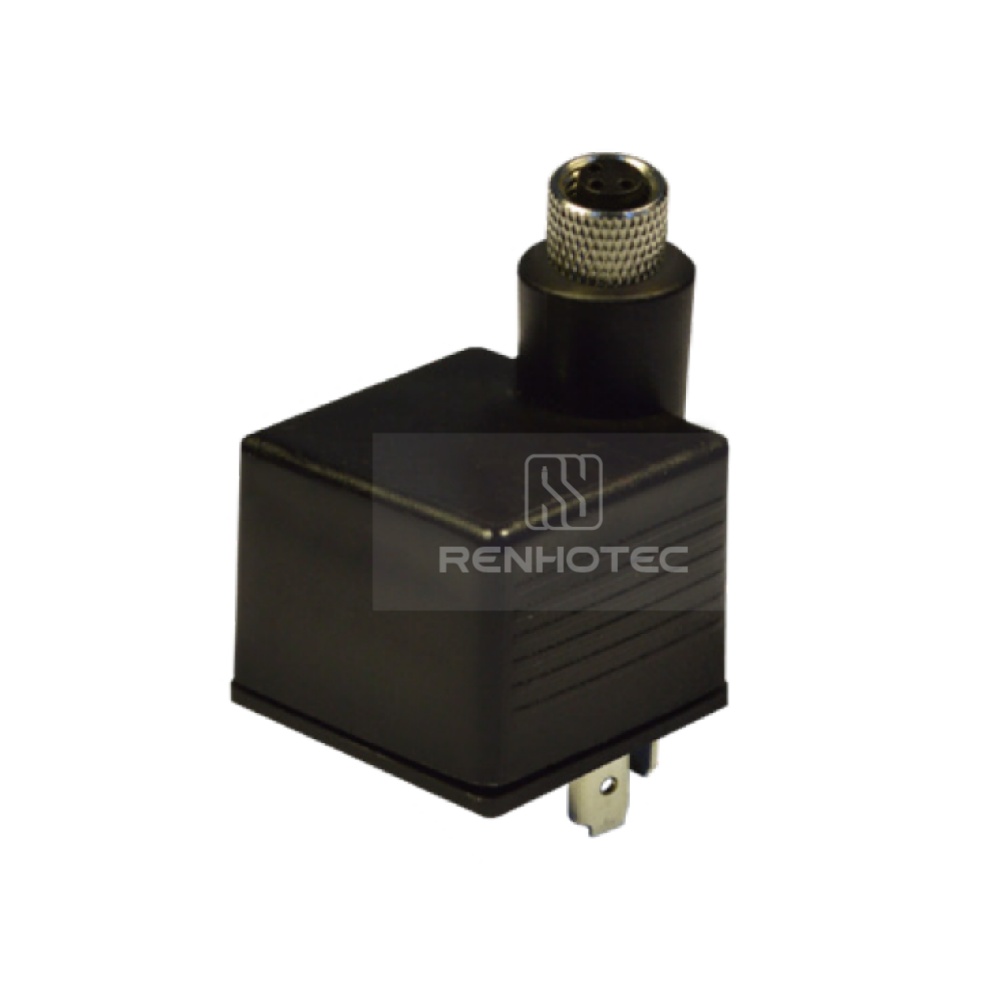

- ≈18 mm → Type A
- ≈11 mm → Type B
- ≈9.4 mm → Type C
Determine Pin Layout
- Single Coil: 2+PE
- Dual Coil / With Feedback: 3+PE (Type A only)
Application
Series M solenoid valve plugs deliver high-protection, quick-connect wiring for pneumatic and hydraulic coils. Typical applications:
- Industrial Automation Systems — Regulate gas/liquid flow, pressure and direction in production-line hydraulic and pneumatic circuits.
- Hydraulic Control Systems — Adjust direction, pressure and flow on machine tools, excavators, loaders and cranes.
- Pneumatic Control Systems — Manage gas parameters for cylinders, pneumatic motors and air valves in precise automation.
- Water-Treatment & Fluid Systems — Switch and adjust flow in sewage, water-supply, irrigation and industrial-cooling pipelines.
- Packaging & Printing Machinery — Power workstation solenoid valves for air-blowing, feeding and other actions; easy to disassemble for maintenance.
- HVAC & Industrial Fluid Equipment — Reliable power for refrigeration units, industrial boilers and chemical pipelines in humid, mildly corrosive environments.
