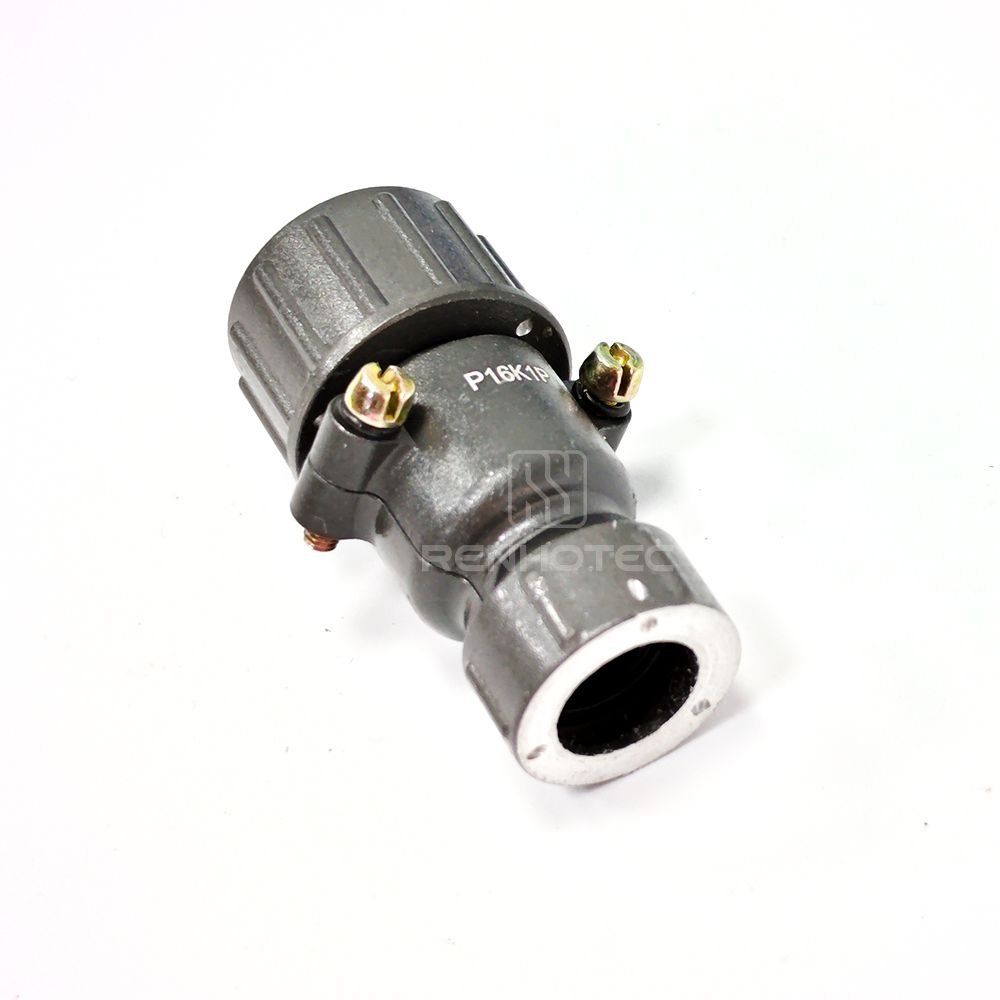

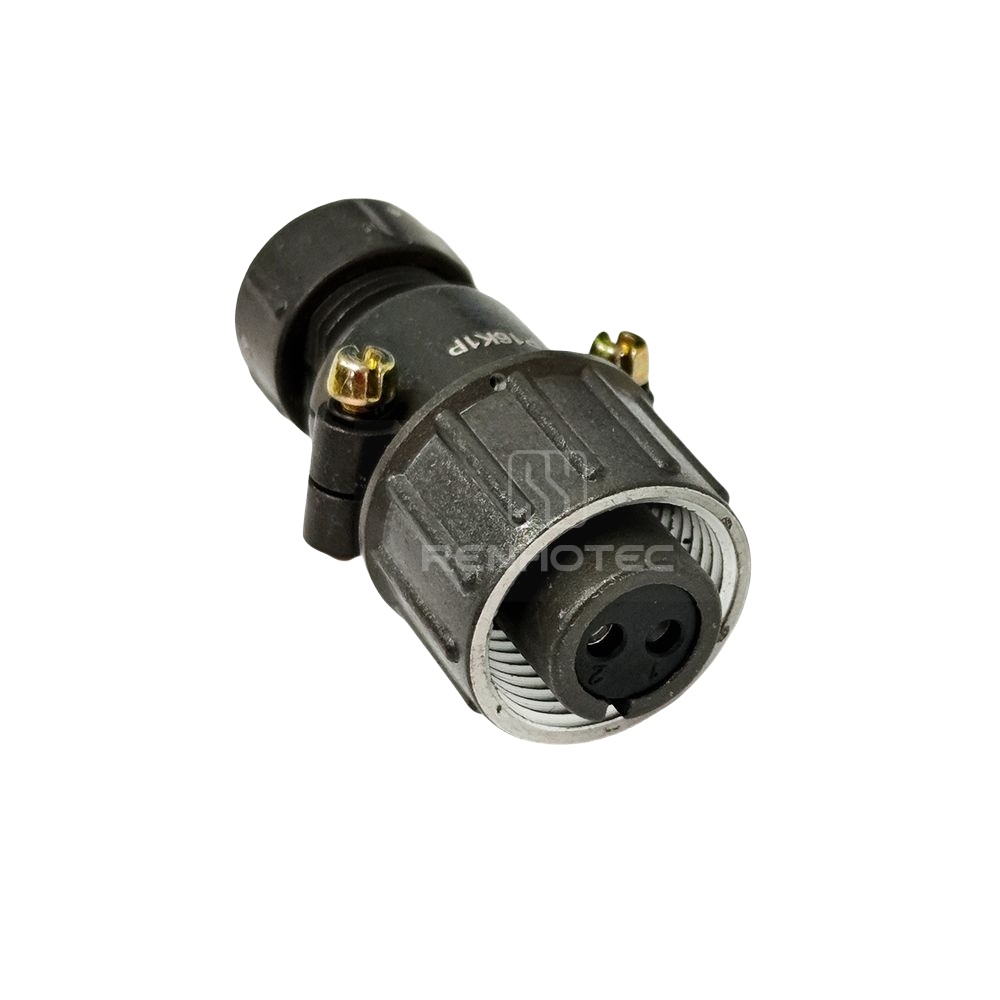

Circular Connector with Russian Standard P Type
The ШР-type circular connector complies with SJ/T10496-94 and includes 8 varieties with P16 and P60 screw thread types. It offers over 1,800 specifications, including straight, angled, shielded, unshielded, sealed, and unsealed versions.
Contact diameters are Φ1.5, Φ2.5, Φ3.5, and Φ5.5 mm, with options for gold or silver plating. It can be matched and interchanged with the original parts of the Russian ШР series.
Technical Parameters
| Connector: | P Series Circular Connector | ||||||||
| Shell Size: | 16,20,28,32,40,48,55 | ||||||||
| Contacts: | 2,3,4,5,6,7,8,9,10,12,14,15,16,20,26,30,35 | ||||||||
| Connection Method: | Thread Connection | ||||||||
| Terminal Method: | Solder | ||||||||
| Plating of Contacts: | Silver | ||||||||
| Insulator: | PBT or Bakelite | ||||||||
| Shell: | Aluminum Alloy Surface Anodizing Treatment | ||||||||
| Relative Humidity: | It can reach 95% at 40°C | ||||||||
| Ambient Temperature: | -55°C~+70°C | ||||||||
| Vibration: | 10 ˜ 200Hz, 95m/² | ||||||||
| Insulated Resistance: | Normal Temperature≥ 500mΩ; Wet Heat≥ 2mΩ | ||||||||
| Life Duration: | 500 Cycles | ||||||||
