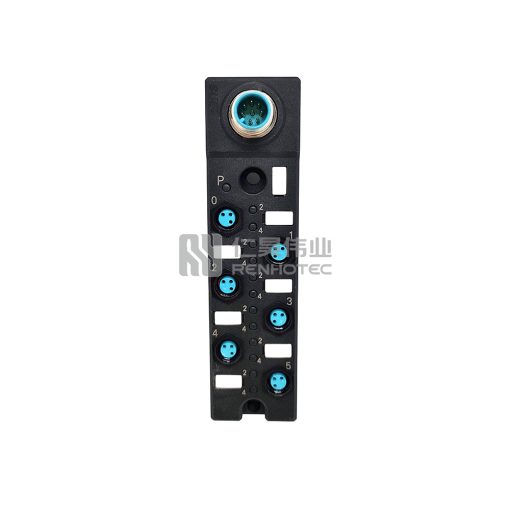

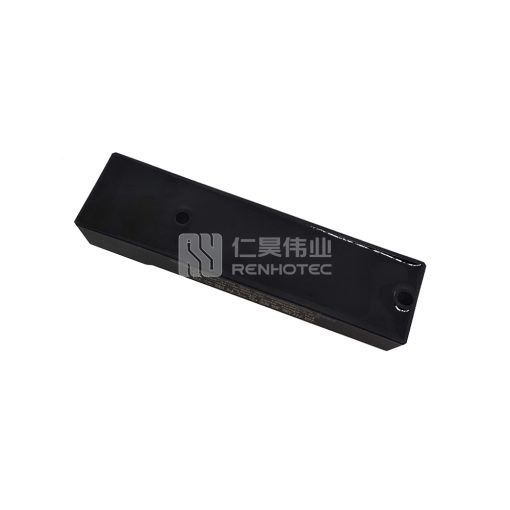

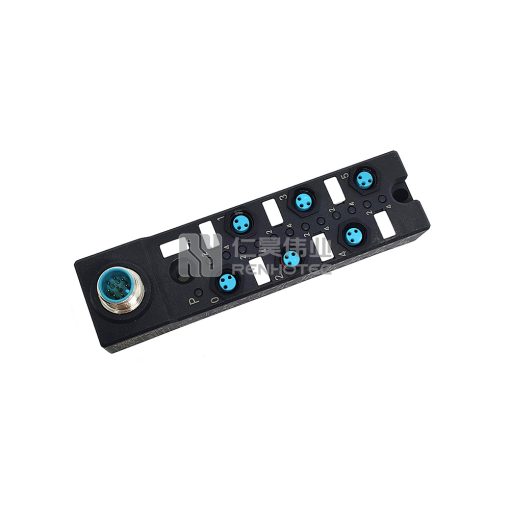

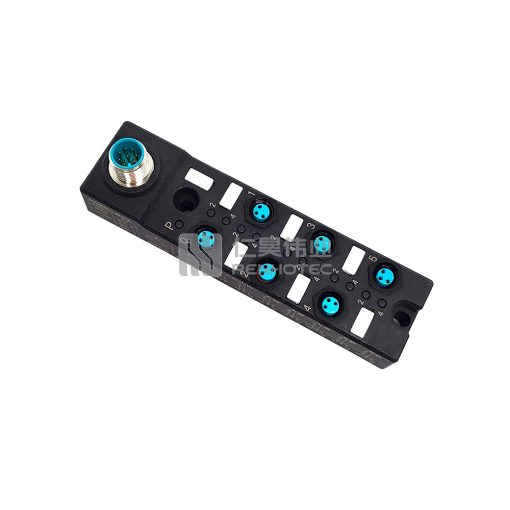

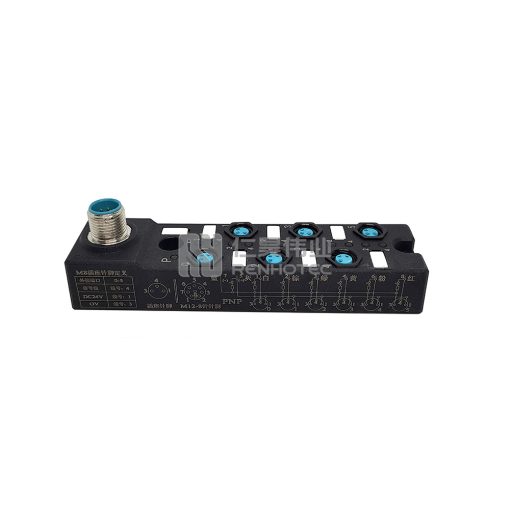

M8 Distribution Box 6-Port, Single Channel PNP, LED Indication, Narrow Body M12 Pre-Made Interface

Part Number :

These distribution boxes typically consist of a metal or plastic enclosure with multiple M8 ports. The number of ports can vary depending on the specific application requirements. Each port is designed to accommodate an M8 connector, which can be used to connect various devices such as sensors, actuators, switches, or other equipment.

M8 distribution boxes provide a centralized and organized solution for connecting multiple devices in an industrial environment. They help simplify wiring and reduce installation time by providing a single point of connection for multiple devices. Additionally, these distribution boxes often feature a compact and rugged design, making them suitable for use in harsh environments with high levels of vibration, moisture, or temperature variations.

Accessories Type

Connector Interface

PCB Interface

PCB Interface with Junction Box

Cableded

M8 Distribution Boxes Shell Size

Field Connection M12 Plug Connector

M8 Pin Definition:

M8 Single Channel		M8 Dual Channel
PIN 1:	+	PIN 1:	+
PIN 2:	/	PIN 2:	S2
PIN 3:	-	PIN 3:	-
PIN 4:	S1	PIN 4:	S1

Application

Commonly used in industrial automation, robotics, sensor networks, and fieldbus systems, M-Series distribution boxes feature multiple connector receptacles for connecting sensors, actuators, controllers, and other devices. In addition, the M-Series distribution boxes are water, dust and corrosion resistant, making them suitable for use in harsh environmental conditions.
