Part Number :
| M12-4C-1L-1.0-NPN-333GY |

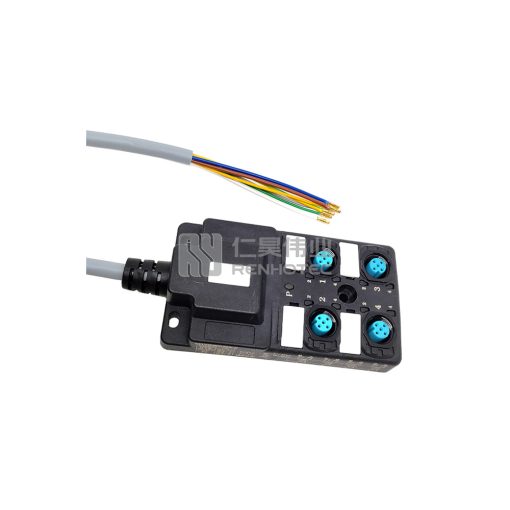

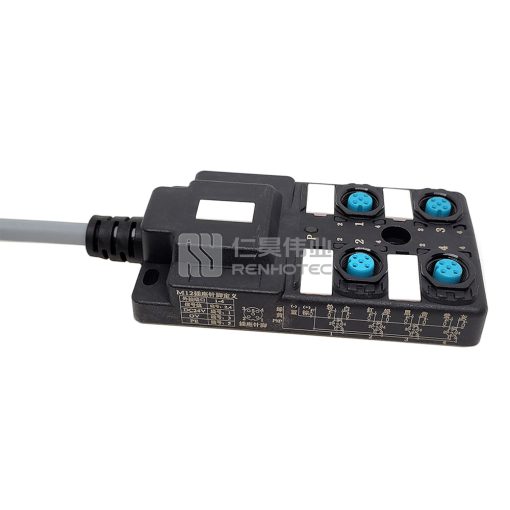

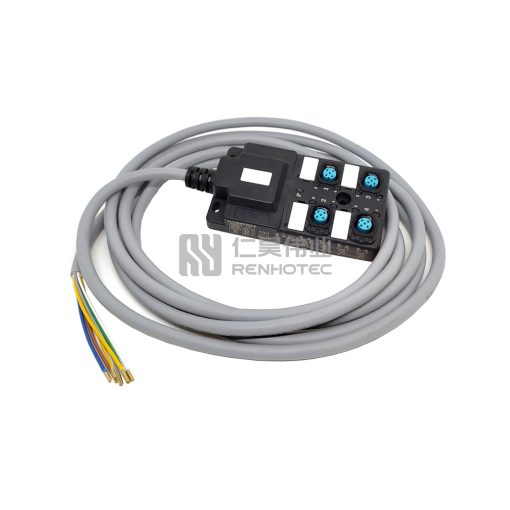

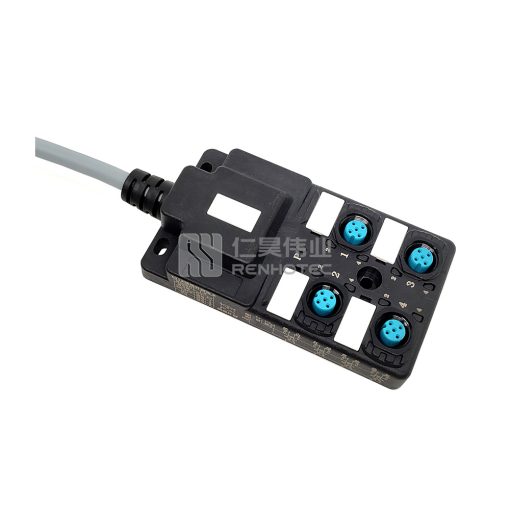

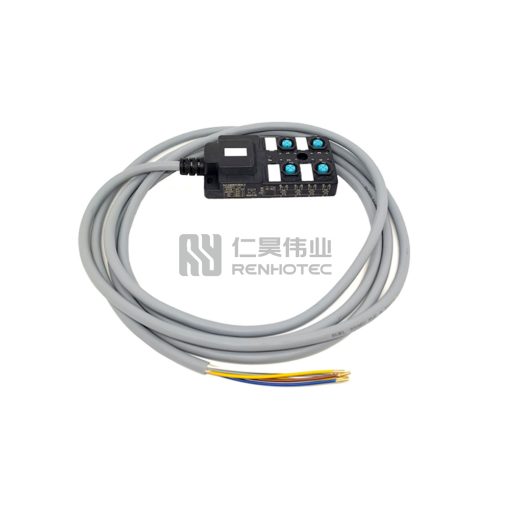

M12 Distribution Box 4-Port Single Channel NPN with PUR/PVC Cable |
| M12-4C-1L-1.0-NPN-334GY |
| M12-4C-1L-1.0-PNP-333GY |
M12 Distribution Box 4-Port Single Channel PNP with PUR/PVC Cable |
| M12-4C-1L-1.0-PNP-334GY |
| M12-4C-2L-1.0-NPN-362GY |
M12 Distribution Box 4-Port Dual Channel NPN with PUR/PVC Cable |
| M12-4C-2L-1.0-NPN-448GY |
| M12-4C-2L-1.0-PNP-362GY |
M12 Distribution Box 4-Port Dual Channel PNP with PUR/PVC Cable |
| M12-4C-2L-1.0-PNP-448GY |
These distribution boxes typically consist of a metal or plastic enclosure with multiple M12 ports. The number of ports can vary depending on the specific application requirements. Each port is designed to accommodate an M12 connector, which can be used to connect various devices such as sensors, actuators, switches, or other equipment.
M12 distribution boxes provide a centralized and organized solution for connecting multiple devices in an industrial environment. They help simplify wiring and reduce installation time by providing a single point of connection for multiple devices. Additionally, these distribution boxes often feature a compact and rugged design, making them suitable for use in harsh environments with high levels of vibration, moisture, or temperature variations.
Accessories Type
PCB Interface with Junction Box
M12 Distribution Boxes Shell Size
Wired M12 Distribution Box
| M12 Single Channel |
M12 Dual Channel |
| PIN 1: |
+ |
PIN 1: |
|
| PIN 2: |
- |
PIN 2: |
S2 |
| PIN 3: |
S1 |
PIN 3: |
- |
| PIN 4: |
PE |
PIN 4: |
S1 |
| PIN 5: |
- |
PIN 5: |
PE |
Wiring Diagram
Application
Commonly used in industrial automation, robotics, sensor networks, and fieldbus systems, M-Series distribution boxes feature multiple connector receptacles for connecting sensors, actuators, controllers, and other devices. In addition, the M-Series distribution boxes are water, dust and corrosion resistant, making them suitable for use in harsh environmental conditions.
