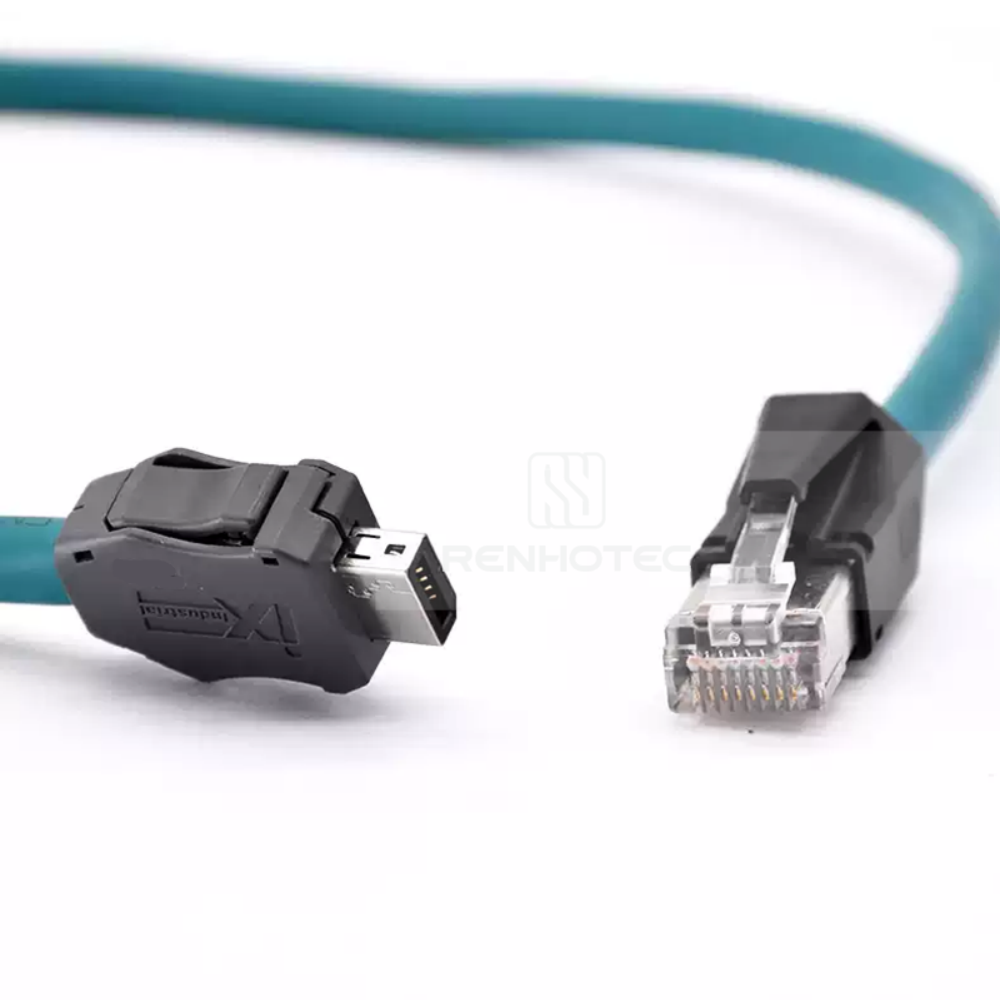

IX Industrial IX 10-Pin to RJ45 8-Pin Cat6A Ethernet Cable, IX40G-A-10S-CV (7.0) for PoE and Machine Vision
IX Industrial IX 10-Pin to RJ45 8-Pin Cat6A Ethernet Cable, IX40G-A-10S-CV (7.0) for PoE and Machine Vision - Image 2

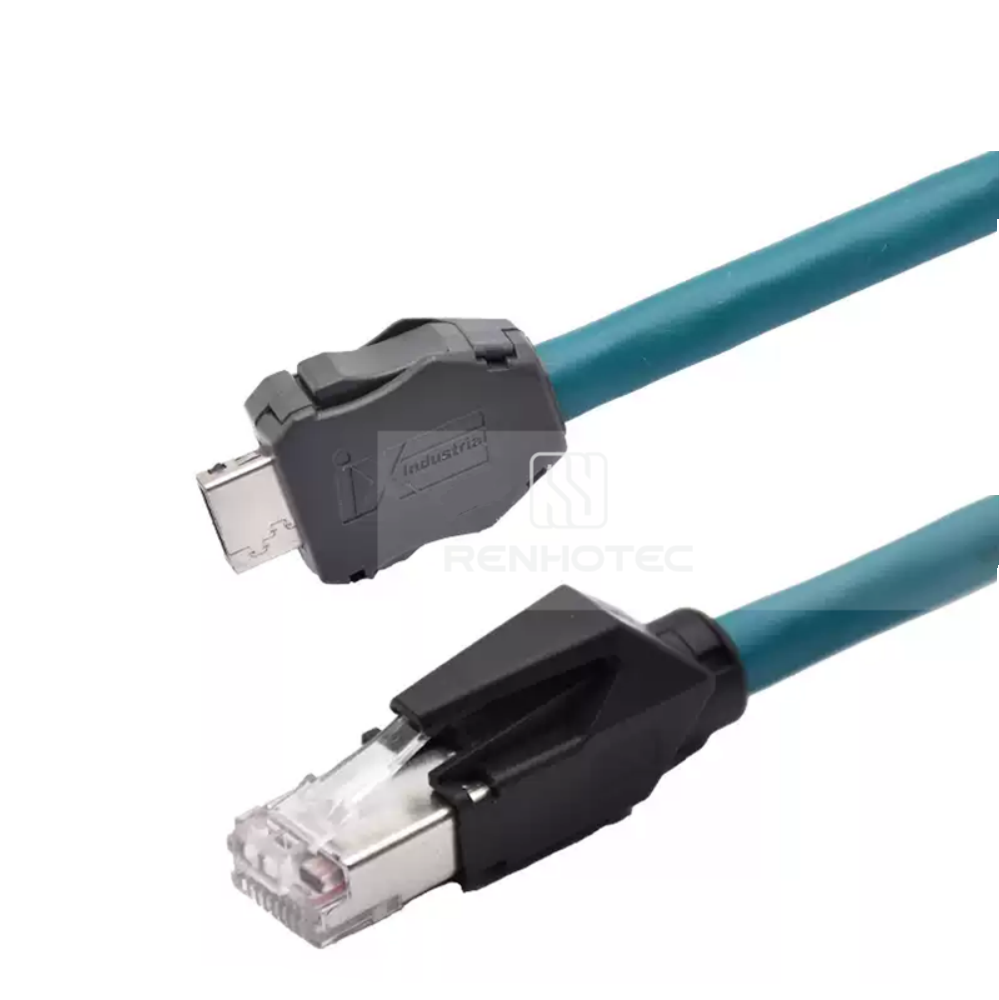

IX Industrial IX 10-Pin to RJ45 8-Pin Cat6A Ethernet Cable, IX40G-A-10S-CV (7.0) for PoE and Machine Vision

SKU: RHT-IX10P-RJ45 Category:
  • Engineered with HRS IX40G-A-10S-CV; fits Hirose, HARTING ix A-Key.
  • Cat6A S/FTP 26AWG, 10GBASE-T to 100m; PoE++ up to 90W supported.
  • A-Key plug is 75% smaller than RJ45, enables 10mm pitch port density.
  • IEC 61076-3-124 compliant; 5,000 mating cycles, 25N latch retention.
  • Double-shielded against EMI from servos, VFDs and welding equipment.
  • OEM lengths, TPU/PUR jacket, drag-chain rated; RoHS, samples on request.
Get a Quote

Compact IX Industrial cable assemblies for reliable Ethernet connectivity in space-constrained industrial equipment. Available in IX-to-RJ45 and IX-to-IX configurations for compatible devices and network interfaces.

  • Connector Options: IX 10-Pin to RJ45 8-Pin / IX 10-Pin to IX 10-Pin
  • Cable Type: Cat6A (confirm actual cable specification)
  • Cable Length: 0.5m/1m/3m/5m/10m/Custom
  • Applications: Machine Vision, Industrial Automation, Robotics

Product Features

Installation steps

Application

IX Industrial cable assemblies support compact Ethernet connectivity across a wide range of industrial and equipment applications.

  • Machine Vision: Industrial cameras and vision systems.
  • Factory Automation: Control systems and motion equipment.
  • Industrial Robotics: Compatible robotic and automation devices.
  • Test & Measurement: Ethernet-connected instruments and systems.

Machine Vision
industrial camera data port → IPC / vision switch

Factory Automation & Motion Control
Servo drive comms port → encoder / PLC master

Industrial Robotics
Robot base connector box → arm harness to J6 wrist

Medical Equipment
CT gantry detector interface → reconstruction host

Rail Transit
Door control unit (DCU) Ethernet port

ITS / Security & Surveillance
Pole-mount cabinet switch → PTZ camera / radar

IIoT & Test Measurement
DAQ chassis front-panel Ethernet port

Building Automation & Smart Cabinet
DDC controller port → building gateway

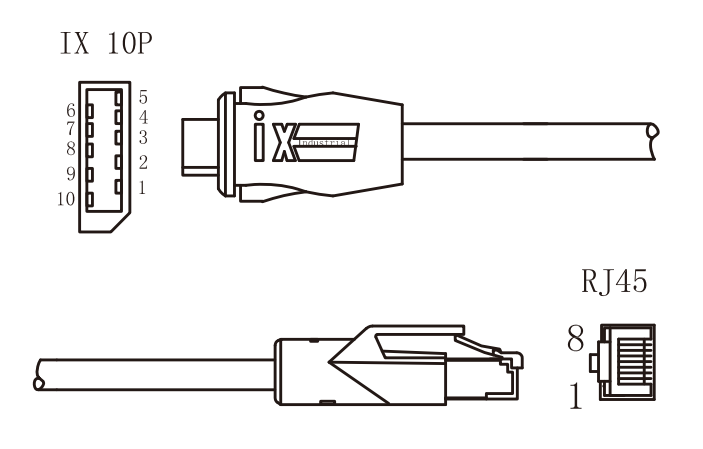

1st Connector Series

IX40G-A-10S-CV (7.0)
2nd Connector Series

RJ45 8 Pin
AWG

26AWG
Cable Outer Diameter

6.6±0.15mm
Insulation Material

FM-PE+SKIN
Jacket Material

Matt PVC, Nitrile PVC
Cable Color

Dark Green
Minimum Bending Radius

50mm
Transmission Speed

1 Gbps
Tensile Strength

50N
Max Operating Voltage

30V
Cable Resistance

≤148.94Ω/km
Durability

>3000 Mating Cycles
Contact Resistance

≤10mΩ
Contact Plating

Gold
Plug Insulation Material

PVC
Cable Length

0.5m/1m/3m/5m/10m/Custom
