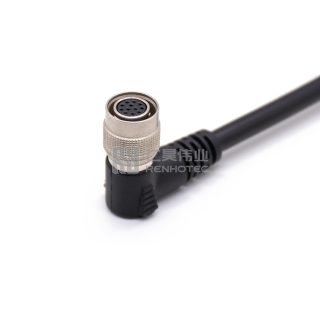

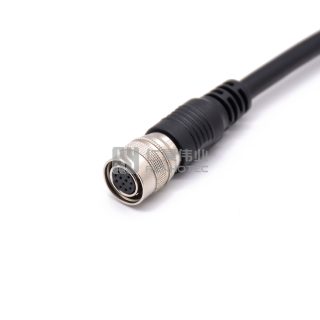

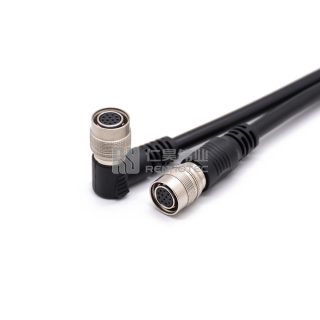

AVT Daheng PointGrey FLIR CCD Industrial Camera HR 12 pin Power I/O Trigger Cable

SKU: I01-H01-10003-100 Categories: Power I/O Cables, Industrial Camera Cables

Braided from tinned copper, not easy to oxidize, longer service life. Tinned end for easy installation
The connector adopts foolproof interface design, which improves working efficiency and is not easy to make mistakes
Wrapped with special PVC material, oil and abrasion resistant, more suitable for use in industrial environments
Standard cables and drag chain cables are available, and the drag chain cables have passed more than 10 million times of drag chain test
UL compliant with flame retardant rating up to VW-1
RoHS 2.0 and CE compliant

Get a Quote Talk To Us

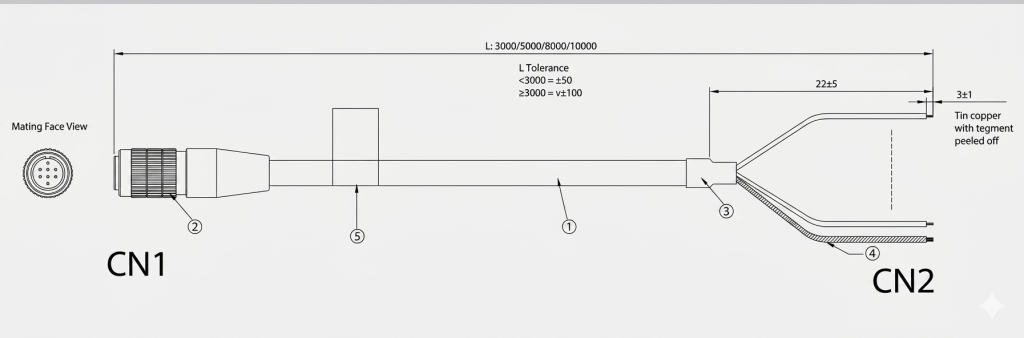

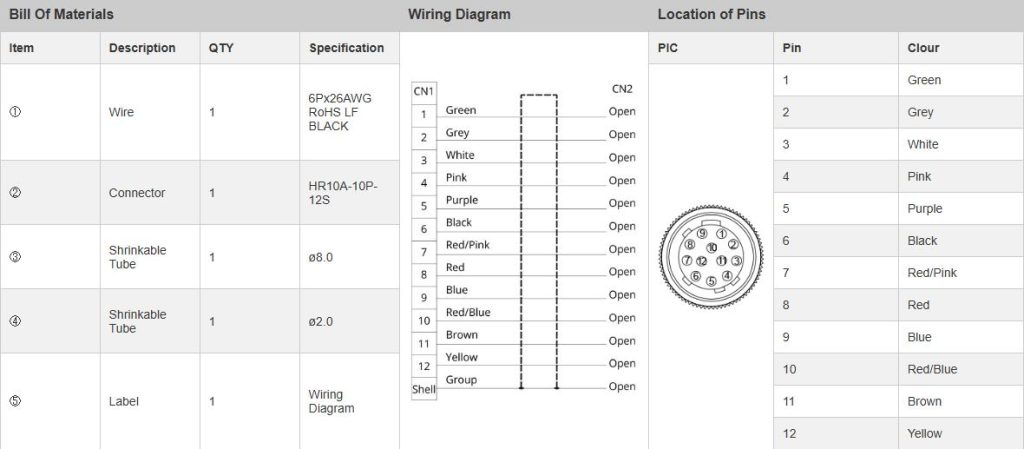

HR 12 Pin Connector Specifications

Product Features

A variety of connector types and cable sizes are available.

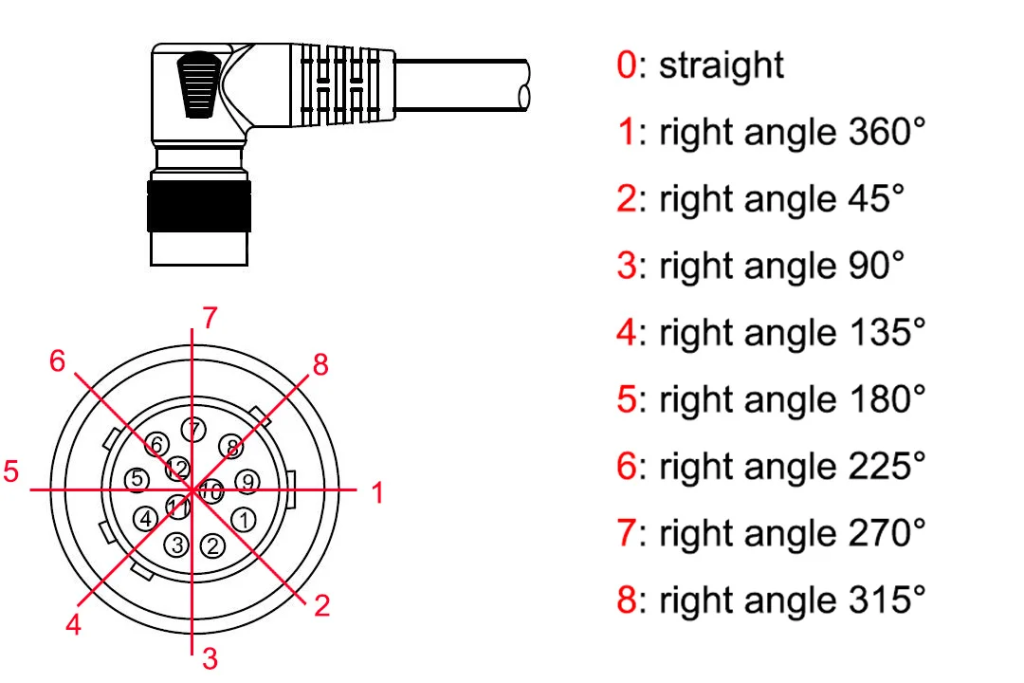

A variety of key directions are available, allowing you to install worry-free.

We can customize the product according to customer requirements. Depending on the application, you can use the harness with a power adapter. You can also connect the tail to terminals or customize it with M-Series I/O cables.

Conversion Style	HRS to HRS
1st Connector Series	HRS Jack
1st Connector Number of Positions	12 Pin
1st Connector Orientation	Straight
2nd Connector Series	HRS Jack
2nd Connector Number of Positions	12 Pin
2nd Connector Orientation	Right Angle
Suitable Cable	26AWG
Cable Assembly Type	Round
Operating Temperature	-55℃ – +85℃

Compatible with leading machine vision camera brands featuring HR 8-pin male I/O interfaces

Camera Brand	Compatible Series / Models	Interface Type	Compatibility Notes
Panasonic	GP-MF130 / GP-MF502 / GP-MF552 / GP-MF602 / GP-MF622 / GP-MF702	12-Pin Hirose	Direct compatibility
Sony	DXC-950 / DXC-990 / DXC-990P	12-Pin Hirose	Legacy CCD camera models
Hitachi	Ultra-Compact Analog Progressive Scan Series	12-Pin Hirose	Selected models
Basler	pilot / scout / aviator GigE	12-Pin I/O	Selected legacy models
Marshall Electronics	CV503 / CV505 / CV506 / CV565 / CV344 / CV345 / CV346 / CV380 / CV420	12-Pin Hirose	Selected models
JAI	CV / TM / AM Series	Hirose 12-Pin	Selected models
Toshiba Teli	CS / IK Series	Hirose 12-Pin	Selected models
Pulnix / JAI-Pulnix	Legacy CCD Series	Hirose 12-Pin	Selected models
Watec	Selected compact CCD models	Hirose 12-Pin	Selected models
