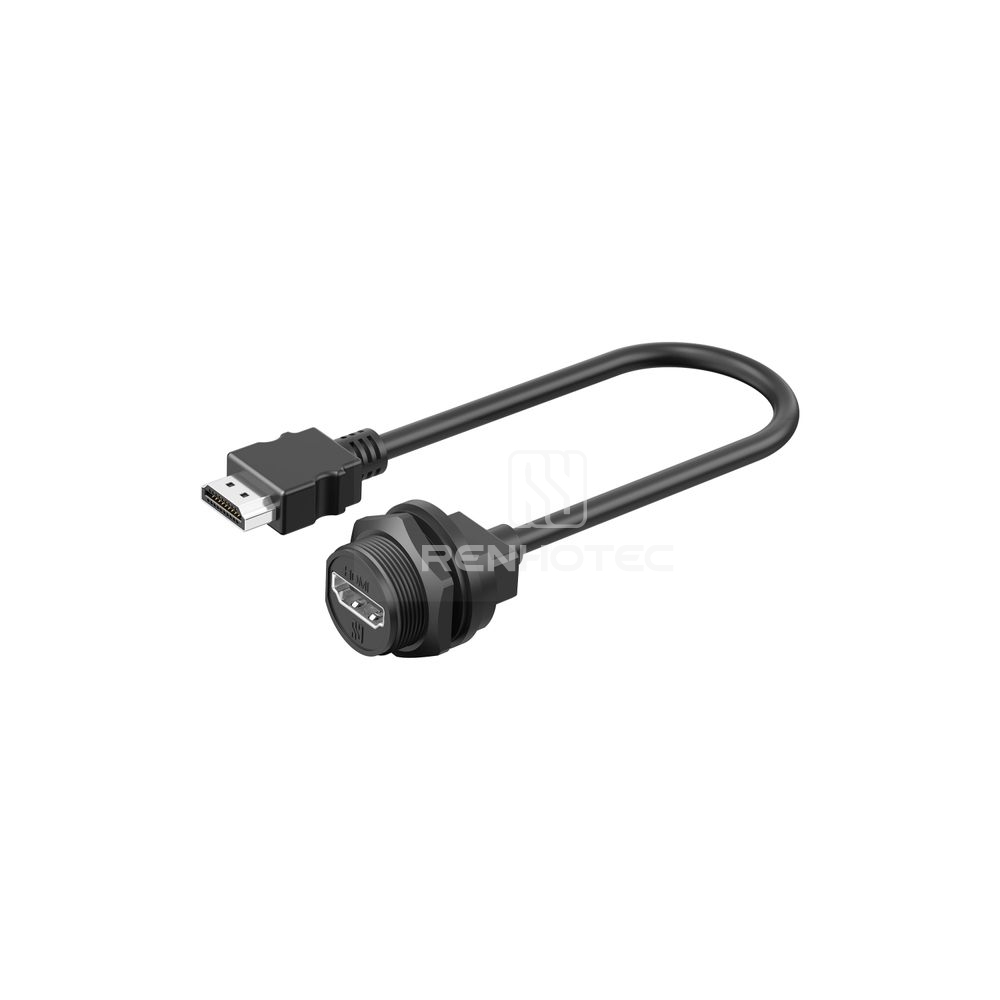

HDMI Female to Male Overmolded with Cable

Renhotec provides robust HDMI connector solutions tailored for security systems, IP cameras, and industrial AV setups exposed to harsh environments. ODS waterproof HDMI connectors are available in IP67/IP68 ratings, multiple cable lengths (0.5m–C10m), and configurations (straight/right-angle) to meet rapid signal transmission demands up to 18Gbps (4K@60Hz).

Products Feature

• Weatherproof Durability: Ideal for outdoor CCTV, marine surveillance, and mining site monitoring.
• High-Speed Compatibility: HDMI 2.1 certified, backward compatible with 1.4/2.0 devices, ensuring seamless connectivity for 4K security feeds and low-latency industrial displays.
• Custom Integration: Modify connector heads, locking mechanisms (screw/quick-latch), and EMI shielding to match IP CAM enclosures or NEMA-rated junction boxes.

Benefits

• Rapid Prototyping: In-house lab tests signal stability (48-hour immersion, -40°C~85°C thermal cycling) and plug-unplug durability (500+ cycles).
• Global Compliance: Meets IEC 11801, RoHS, and HDMI Forum standards.
• Bulk Order Support: 15-day lead time for OEM packaging and dedicated logistics for worldwide markets.

Technical Parameters

Electrical Performance	Contact Resistance: ≤20mΩ
	Insulation Resistance: ≥100mΩ at DC300V
	Durability: 500 cycles minimum
	Breakdown Voltage: ≥AC 300V / minute
	Corrosion: 48 hours sault pray contact
Environmental Performance	Temperature Range: -20°C+80°C
	IP Rating: IP67/68

Application Scenarios

1. Live broadcasting equipment for outdoor sporting events and music festivals requires waterproof connectors to withstand weather fluctuations.
2. High-definition image transmission in telemedicine vehicles or mobile clinics, ensuring reliable performance in humid or outdoor environments.
3. Surveillance cameras in agricultural automation systems, exposed to rainwater and dust.
4. Outdoor monitoring equipment in the oil and gas industry requires explosion-proof and waterproof capabilities.
5. Temporary emergency rescue and disaster response communication systems require rapid deployment in harsh environments.
6. Roadside surveillance in intelligent transportation systems is continuously exposed to outdoor conditions.
7. Outdoor interactive installations in amusement parks demand waterproofing and high-bandwidth transmission.
8. Military mobile command centers with stringent requirements for durability and signal stability.
9. Monitoring systems in cold chain logistics, operating in low-temperature, high-humidity environments.
10. Safety monitoring at construction sites requires dustproof and waterproof protection.
