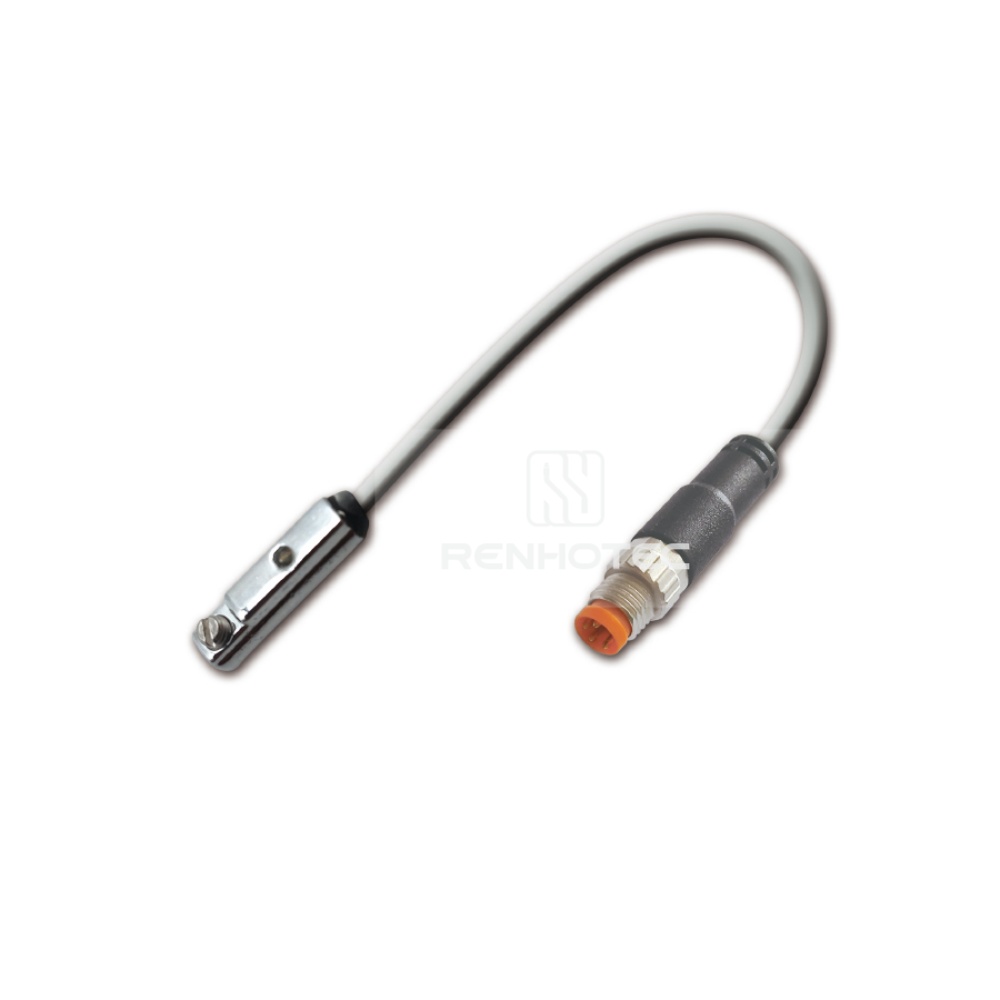

Magnetic switch is a high-sensitivity position detection component based on the principle of magnetic induction. It is mainly used to sense the real-time position of a cylinder piston and output electrical signals for precise automated control. The product is widely applied in pneumatic and hydraulic systems, automated production lines, and various industrial control scenarios. Featuring a compact design and fast response, it is an ideal solution for position feedback and process control in industrial automation.
How it works
- Magnet in piston — the moving trigger source
- Slot on profile tube — where the switch clips on
- Non-contact sensing — zero mechanical wear, long life
- Clean signal output — NPN/PNP to PLC or controller
Product Type
By Connector Type
- M8
- M12
By Wiring
- 2-wire
- 3-wire
By Output
- Normally Open
- Normally Open NPN
- Normally Open PNP
Product Application
M-series magnetic switch connectors deliver stable and reliable signal transmission, widely applied to industrial pneumatic position-detection scenarios. They provide accurate limit feedback for automated equipment and serve as vital signal-connection components in industrial automation control systems.
- Factory Automation
- Logistics Conveying & Warehousing
- Machine Tool, Rubber & Plastic Industry
- Light Industry, Textile & Printing
- Extended Safety Monitoring
