Industrial camera I/O cable main connector type: HR 6 Pin, HR 8Pin, HR 12Pin, M8, M12, with good noise resistance and bending characteristics as well as outstanding transmission performance and mobile durability.
Customizability: 1/3/5/8/10 meters (various lengths can be customized); customized bayonet fixing or screw fixing; elbow or straight connection is supportable; one-piece injection-molded cables or assembled cables for your choice; OEM customization.

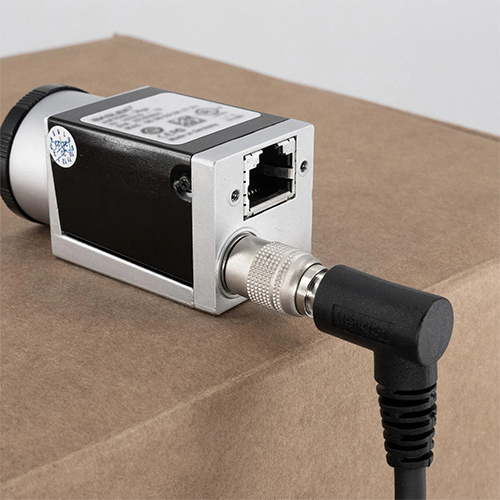

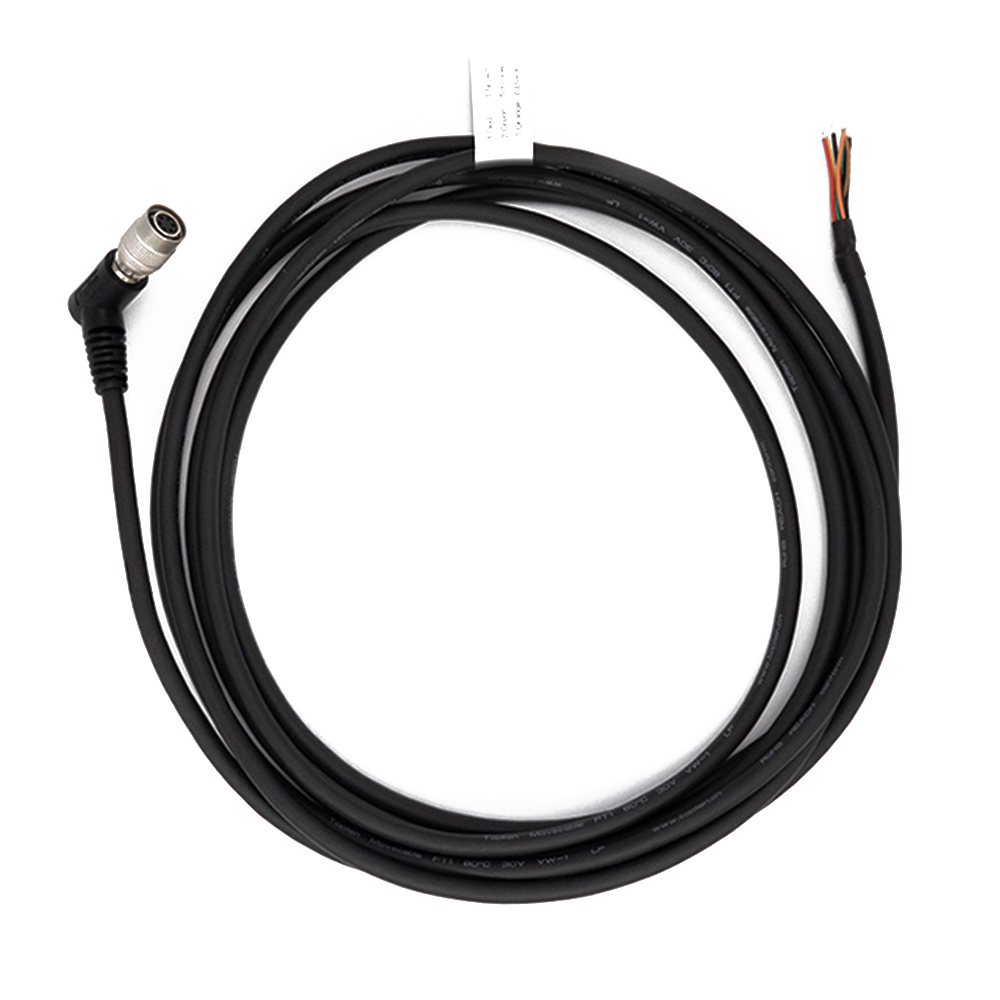

HR 6 Pin Cable
Connector：HR 6 Pin Plug / Jack

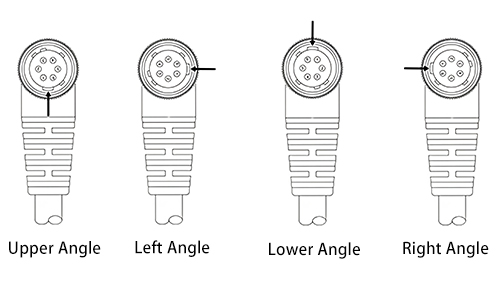

Orientation: Straight / Right Angle
Cable type: Single/Double Side
Working temperature: -25°C~+85°C
Rated current: 2A
Rated Voltage (AC): 100,150 V
Rated Voltage (DC): 140,200 V

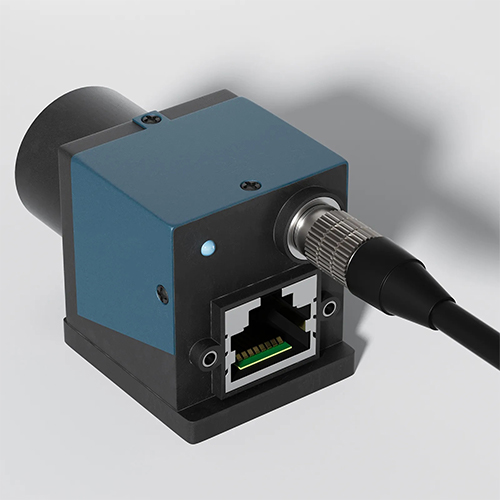

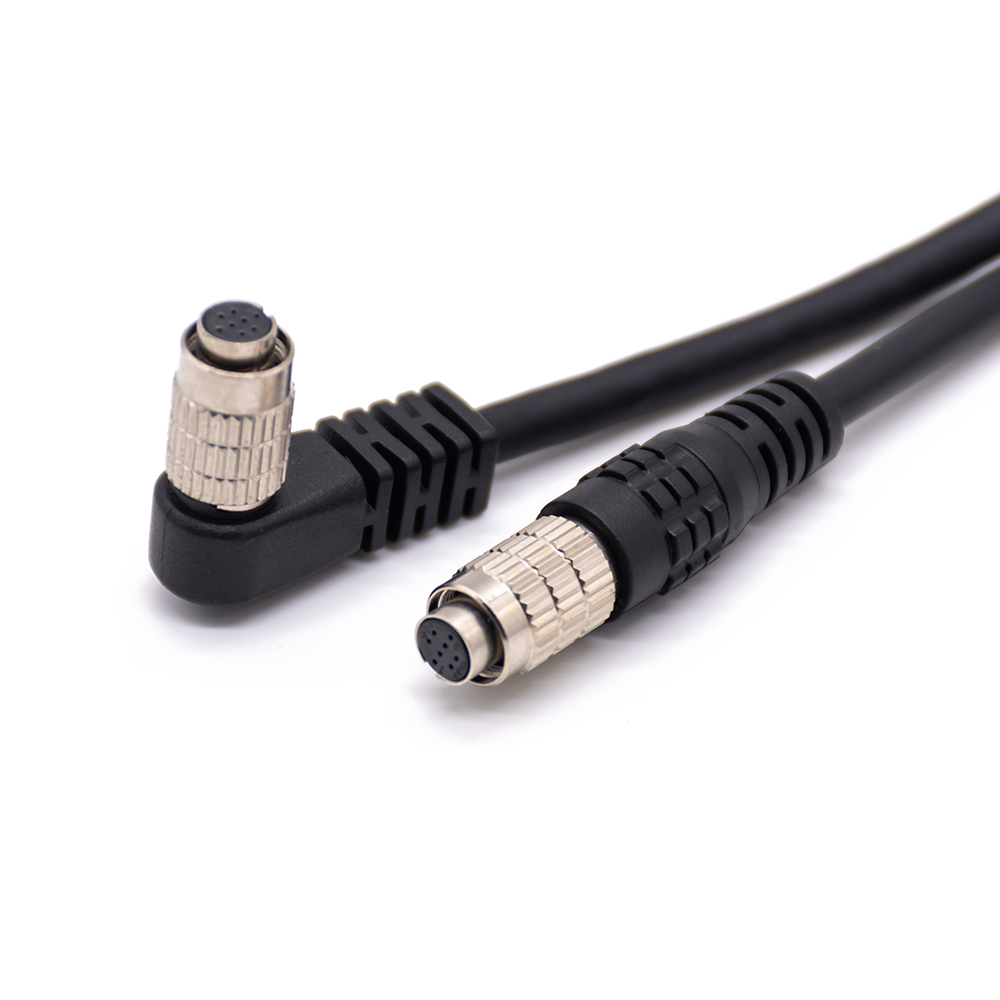

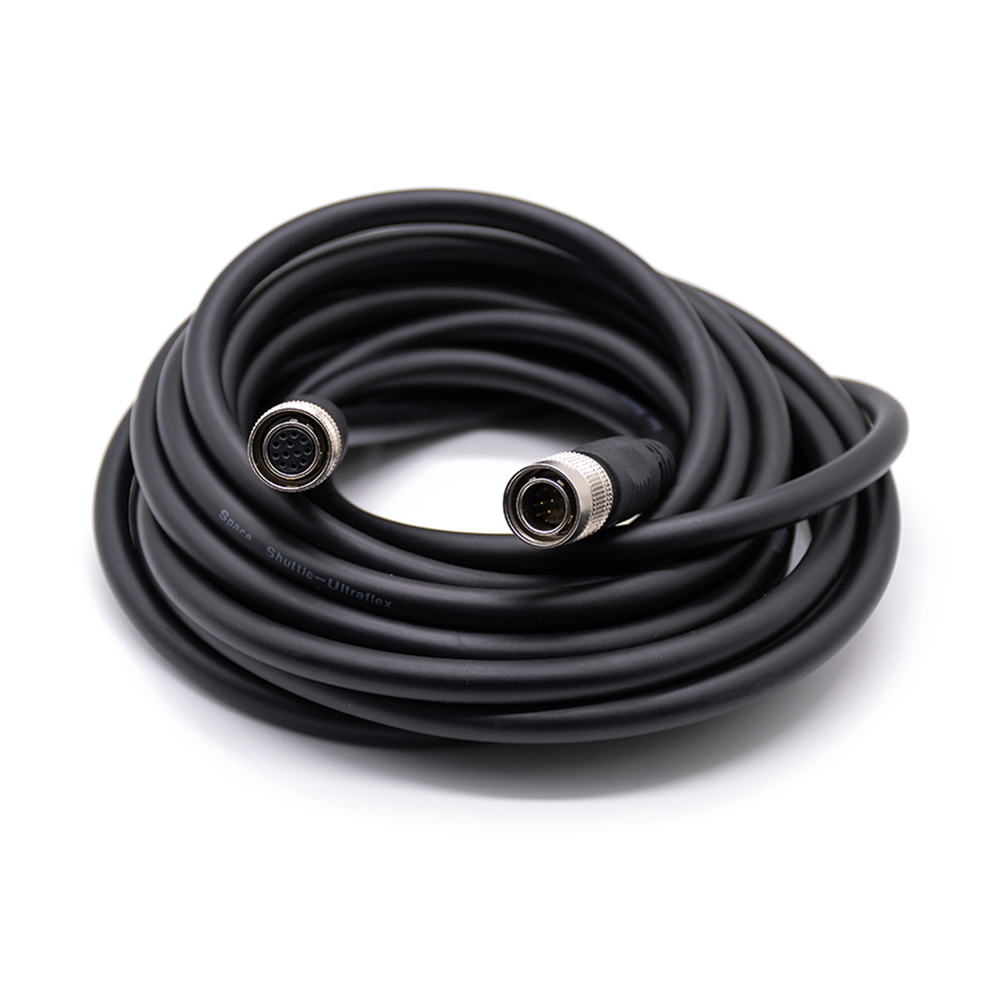

HR 8 Pin Cable
Connector：HR 8 Pin Plug / Jack
Orientation: Straight / Right Angle
Cable type: Single/Double Side
Working temperature: -25°C~+85°C
Rated current: 1A
Rated Voltage (AC): 30 V
Rated Voltage (DC): 42 V

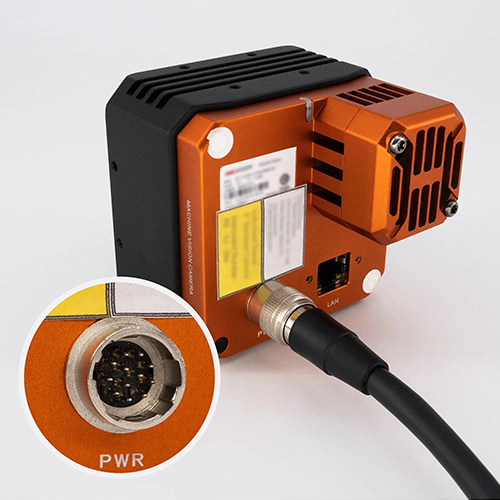

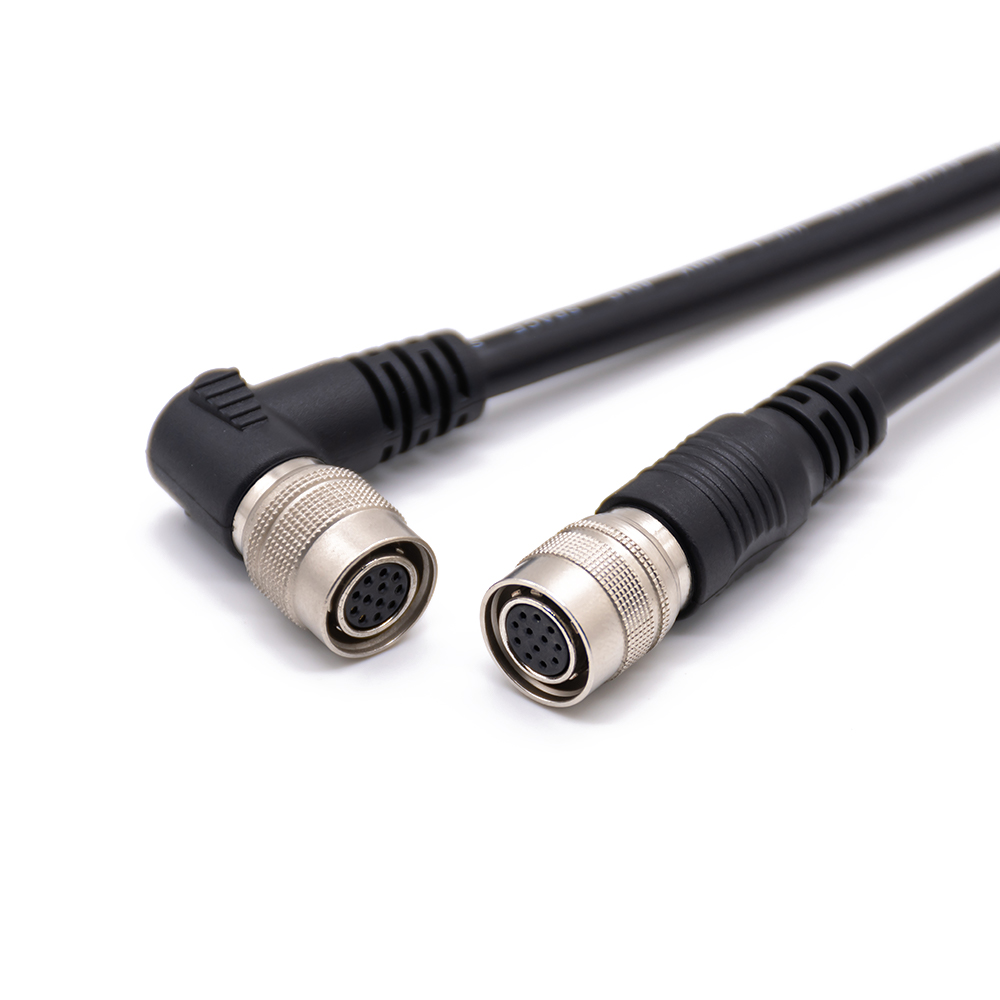

HR 12 Pin Cable
Connector：HR 12 Pin Plug / Jack
Orientation: Straight / Right Angle
Cable type: Single/Double Side
Working temperature: -25°C~+85°C
Rated current: 2A
Rated Voltage (AC): 100,150 V
Rated Voltage (DC): 140,200 V

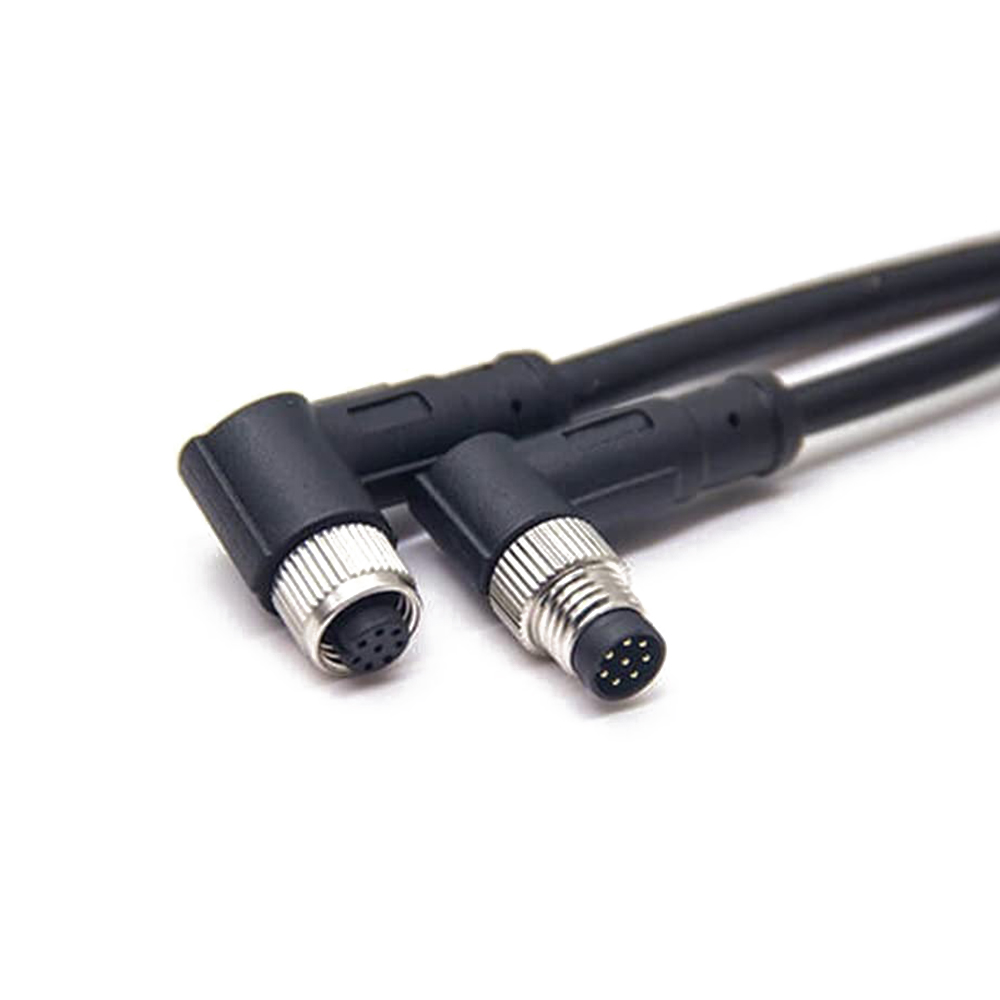

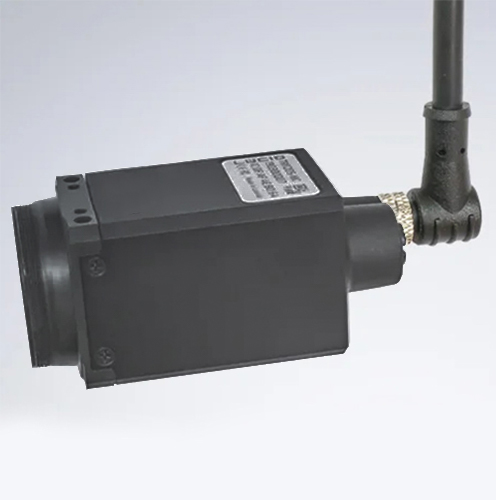

M8 Cable
Connector：M8 Plug / Jack
Orientation: Straight / Right Angle
Cable type: Single/Double Side
Working temperature: -20°C ~ 80°C
Rated current: 2,4 A
Working voltage: 30,60 V

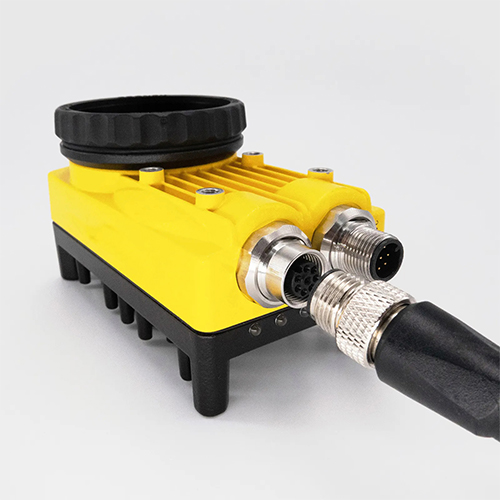

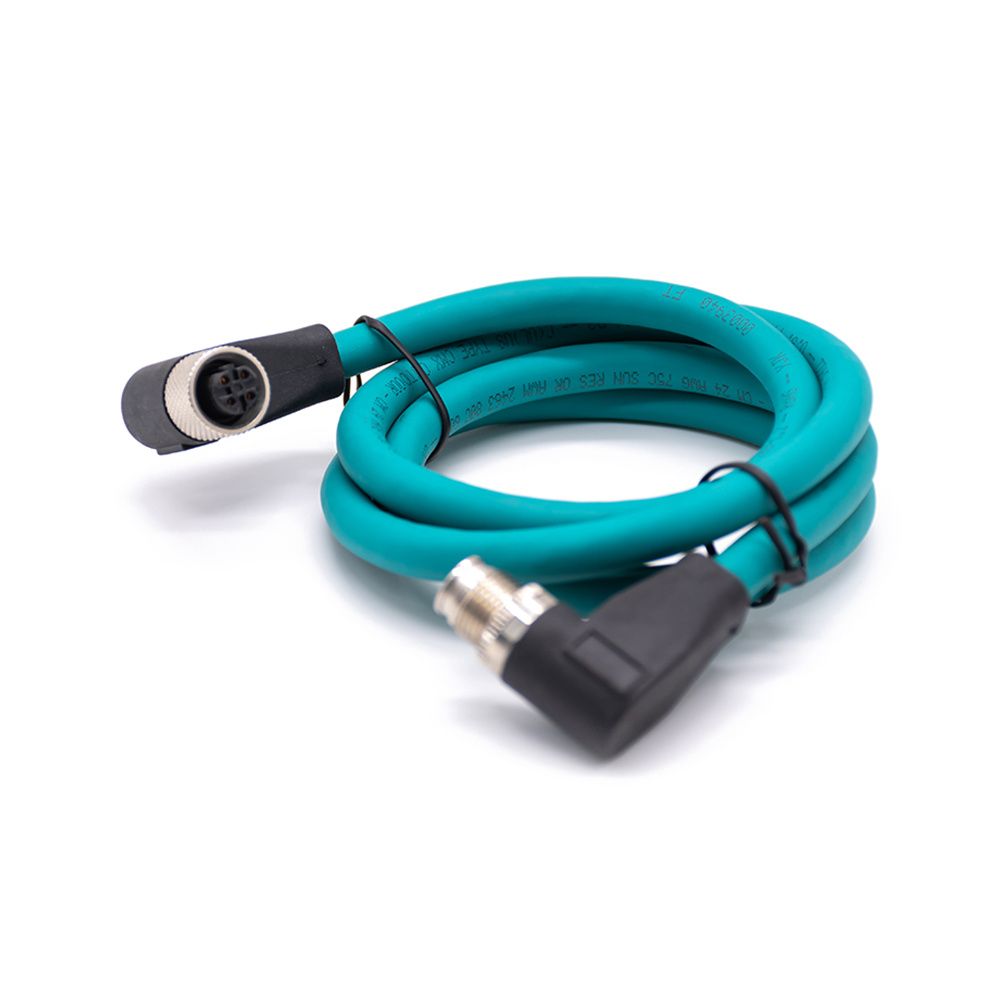

M12 Cable
Connector：M12 Plug / Jack
Orientation: Straight / Right Angle
Cable type: Single/Double Side
Working temperature: -20°C ~ 80°C
Rated current: 1.5A
Working voltage: 30V

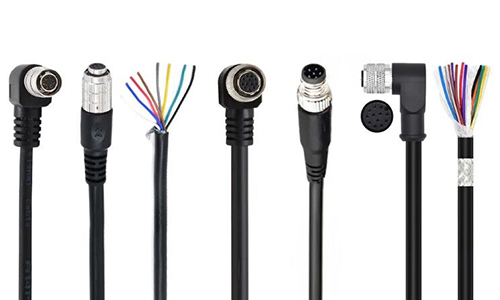

Other Power I/O Cable
A variety of connector types and cable sizes are available.

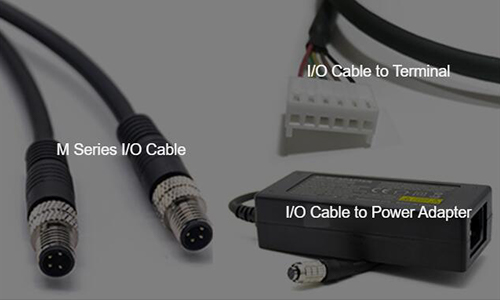

Can be customized according to customer’s requirements: Depending on the application,it can be used with power adapter; the tail can be connected to the terminal; M series I/O cable can also be customized.

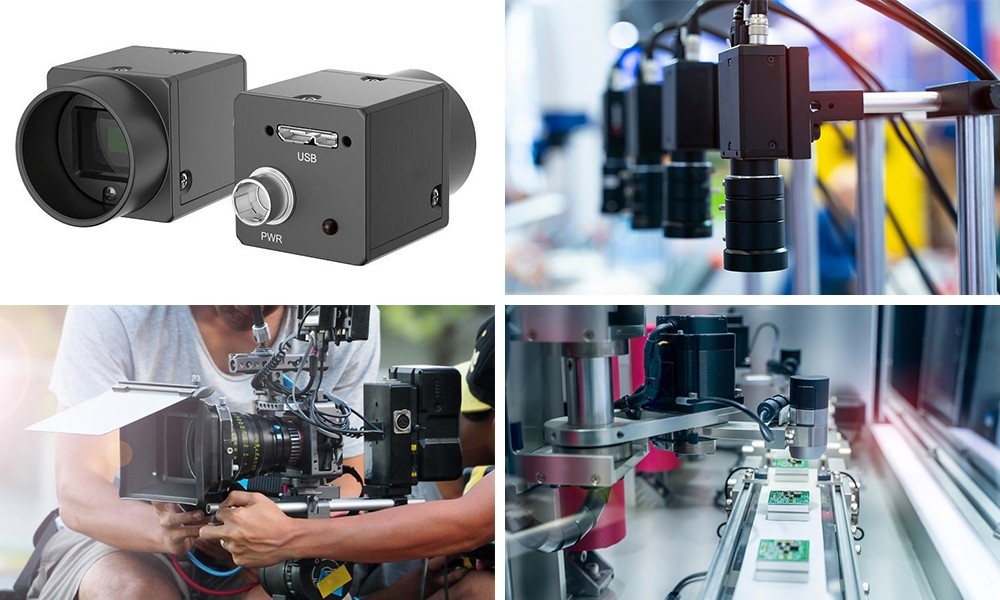

Applicable Brands Basler, CCD, Cognex, Dalsa, Hikvision,Dahua Technology, Daheng Optics, Imavision, Sony, JAI, AVT, PointGrey, IDS, Vieworks,
The Imaging Source and so on.
Discover more than what is showcased on our website.We welcome customization to cater to your unique needs.
If you have specific requirements or any inquiries, send us a message, and we will respond within 24 hours.
We look forward to hearing from you! We will respond within 24 hours.
