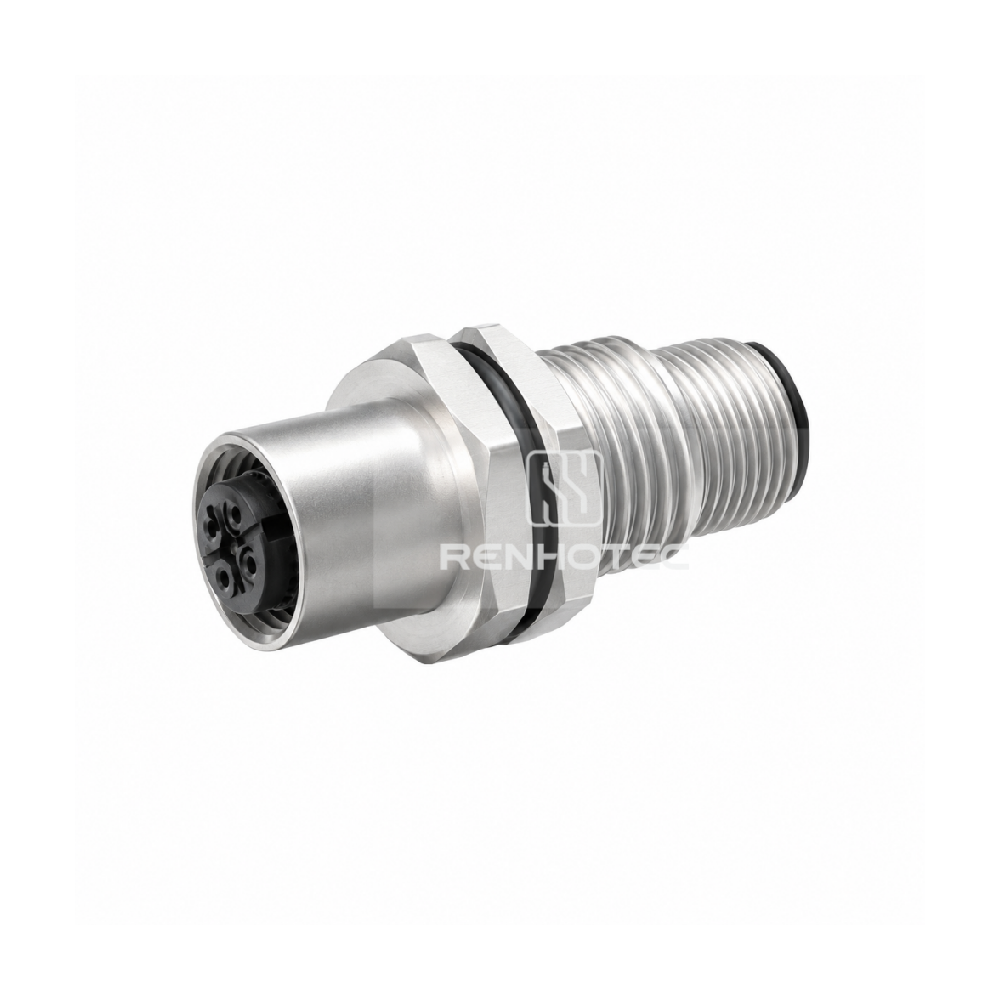

M12 I Type Splitter Male to Female Unshielded

Артикул: RHT-605-2934 Категории: Серия М, M12, Сплиттер/адаптер M12

Key

Number of Positions

Очистить

Получить цитату Talk To Us

Атрибуты

Key	A, B, D
Number of Positions	2 Pin, 3 Pin, 4 Pin, 5 Pin, 8 Pin
Body Material	Brass, Nickel Plated
Screw Nut Material	Brass, Nickel Plated
Contact Finish	Gold
Contact Material	Brass
Insulation Material	PA66+GF
Seal	Black, NBR
Shielding	Unshielded
Protection Rating	IP67 (Mated)
Rated Current	2A
Rated Voltage	30V
Contact Resistance	≤5MΩ
Insulation Resistance	≥100MΩ
Mating Cycles	≥500
Temperature range	-25℃ ~ +80℃
