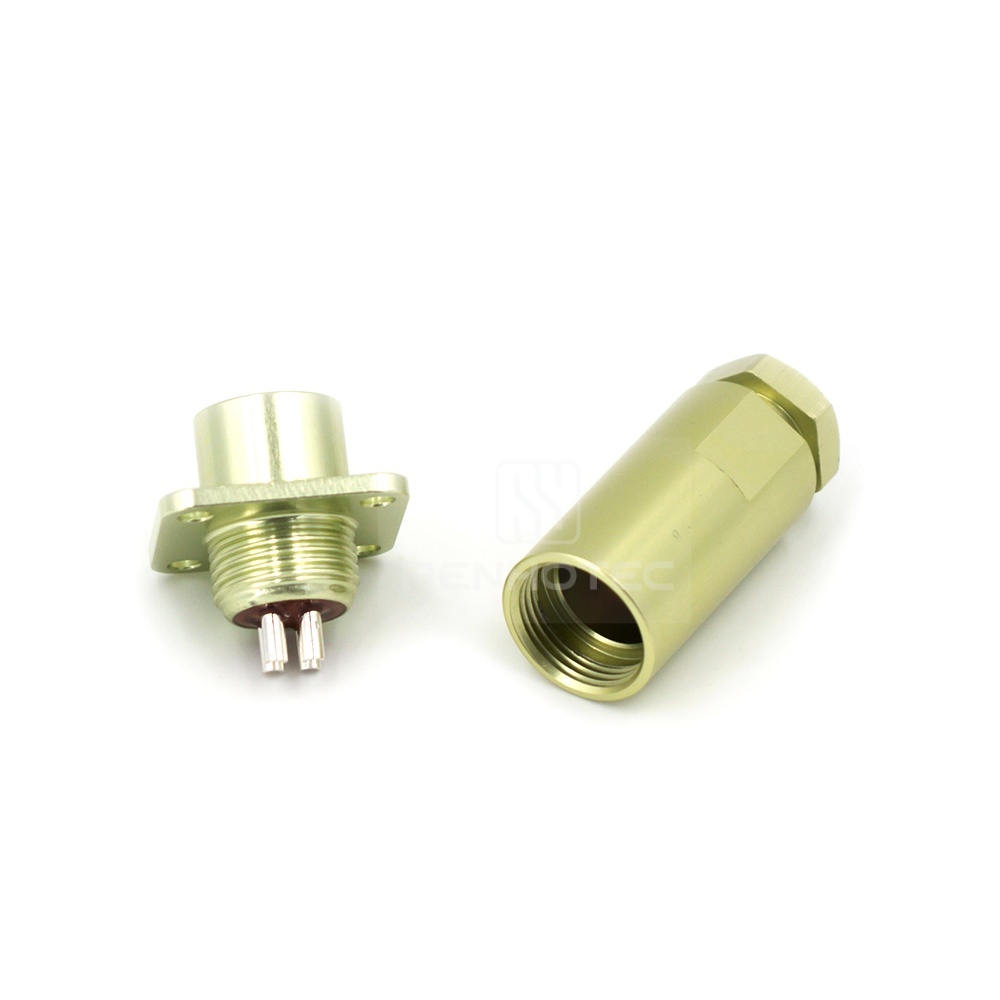

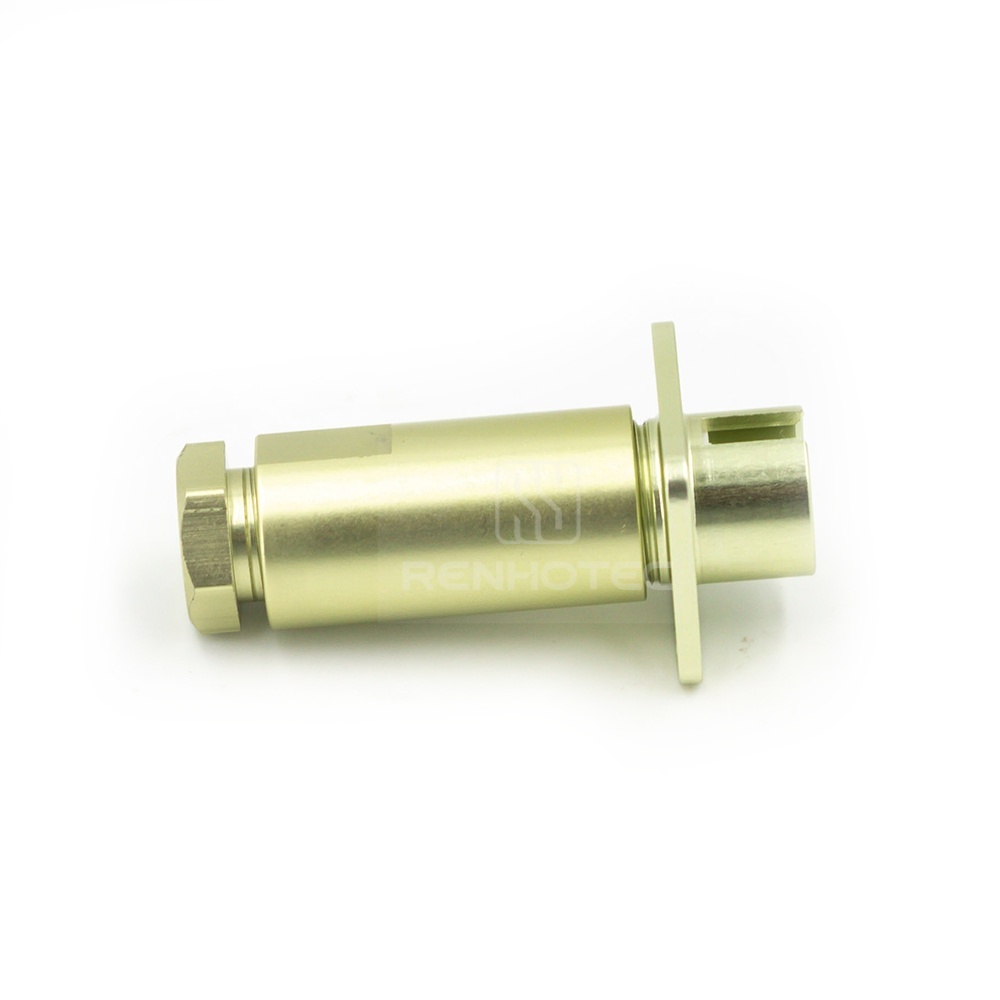

Push-pull PCB4ZPJ 4 Pin Male Socket with Cover Solder Cups

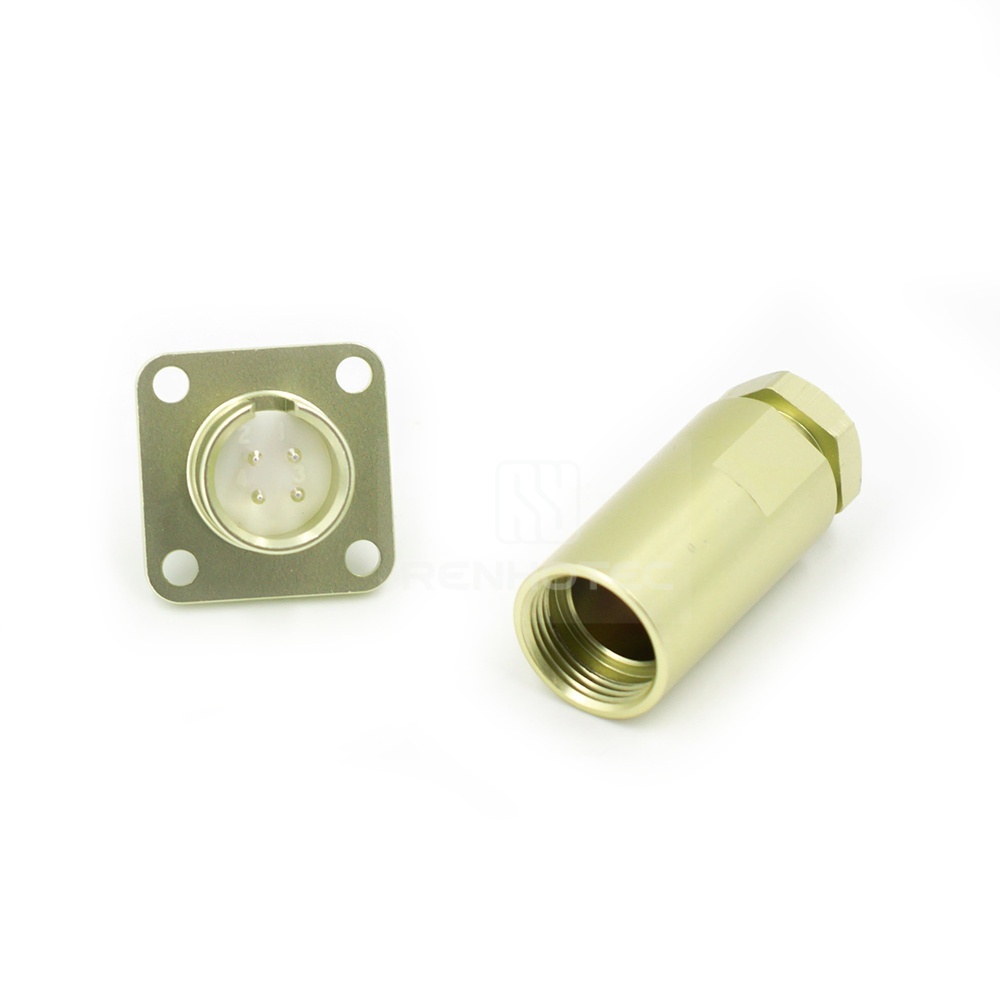

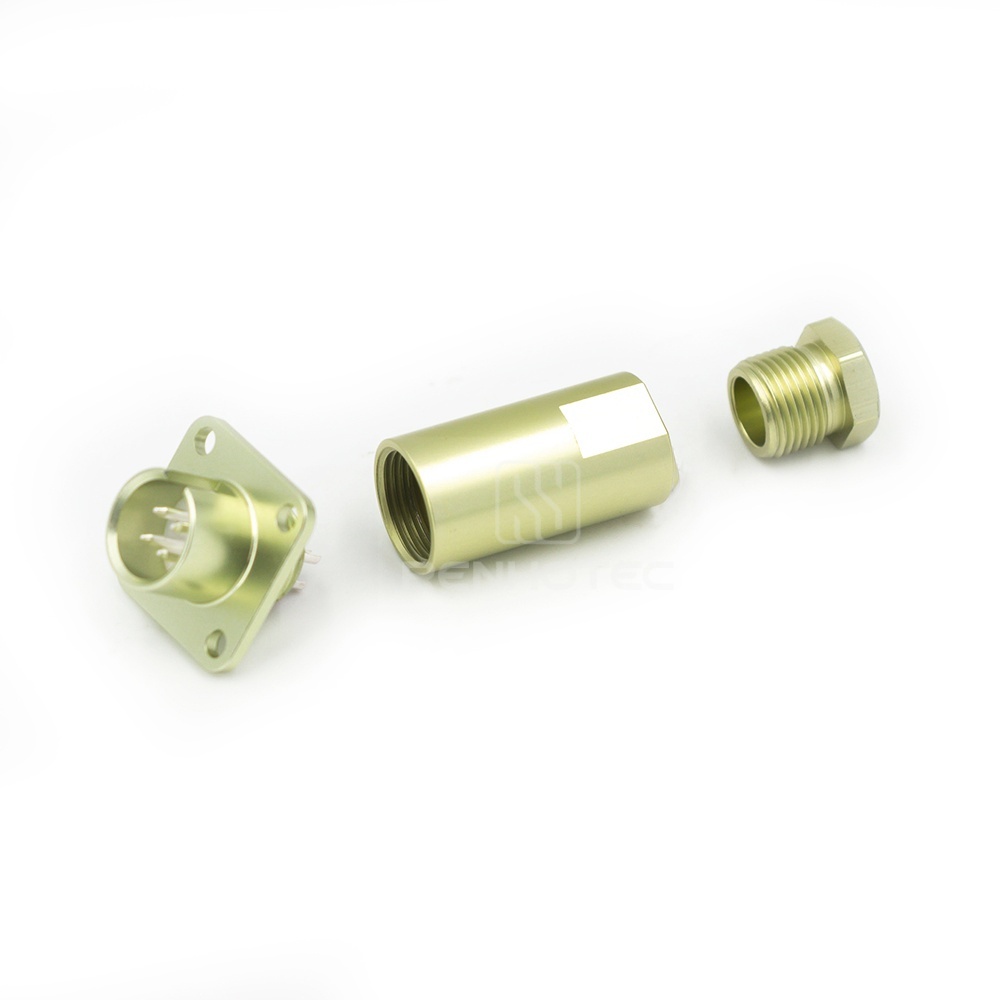

Push-pull PCB4ZPJ 4 Pin Male Socket with Cover Solder Cups — изображение 2

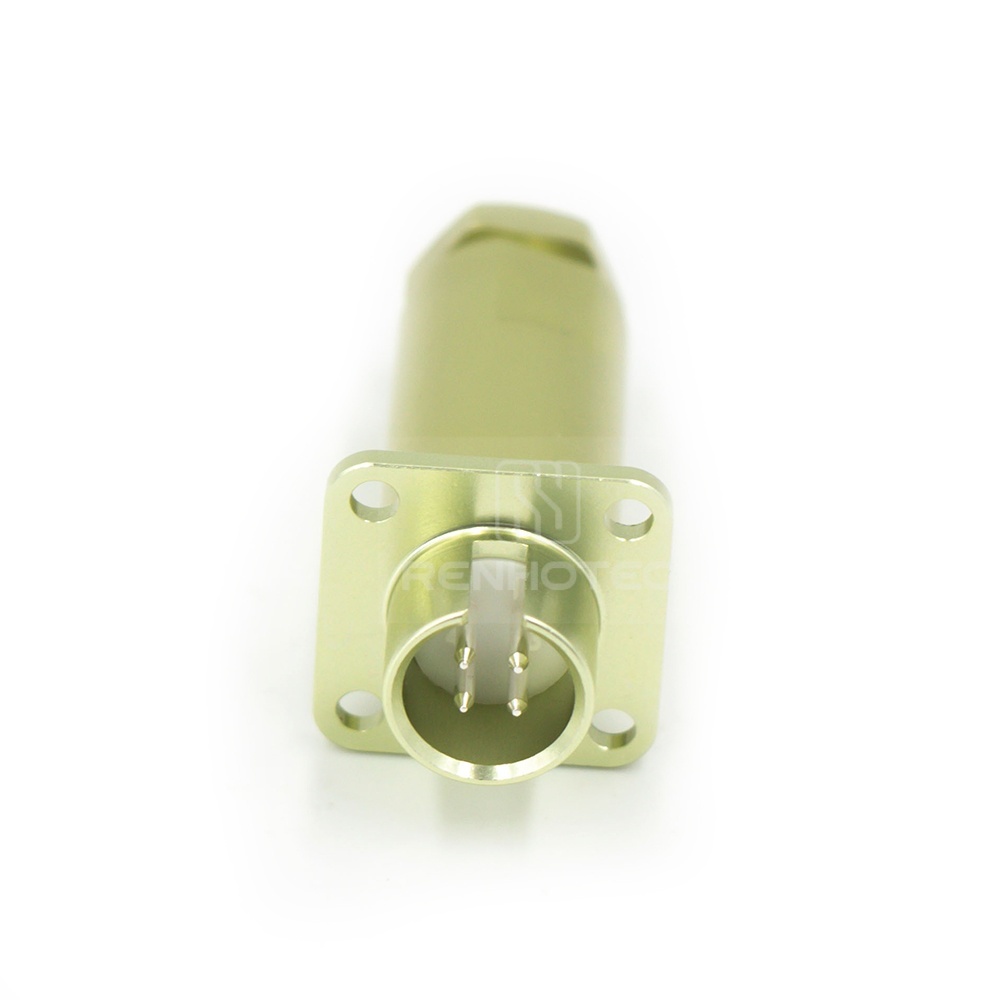

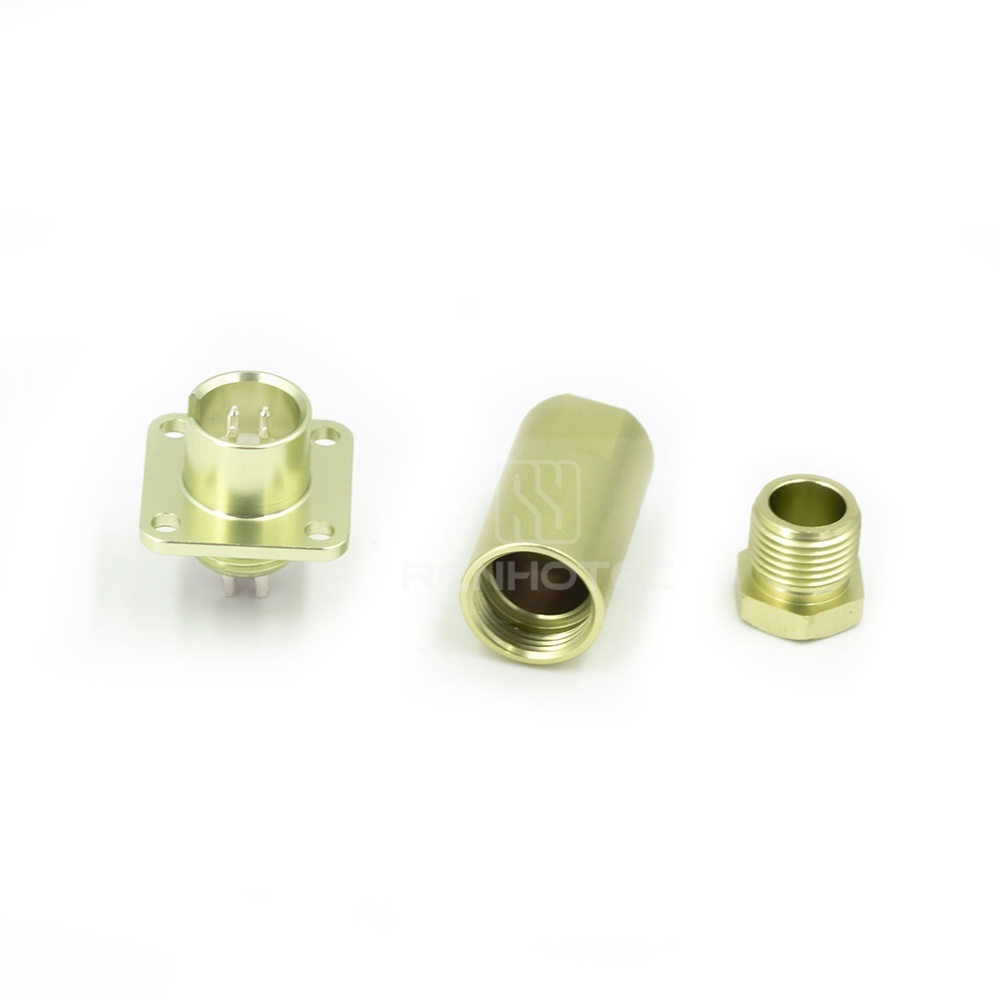

Push-pull PCB4ZPJ 4 Pin Male Socket with Cover Solder Cups — изображение 3

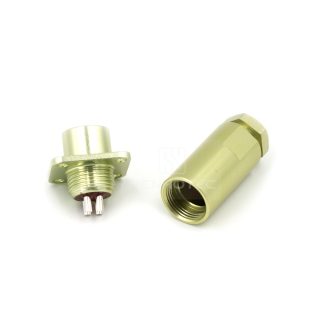

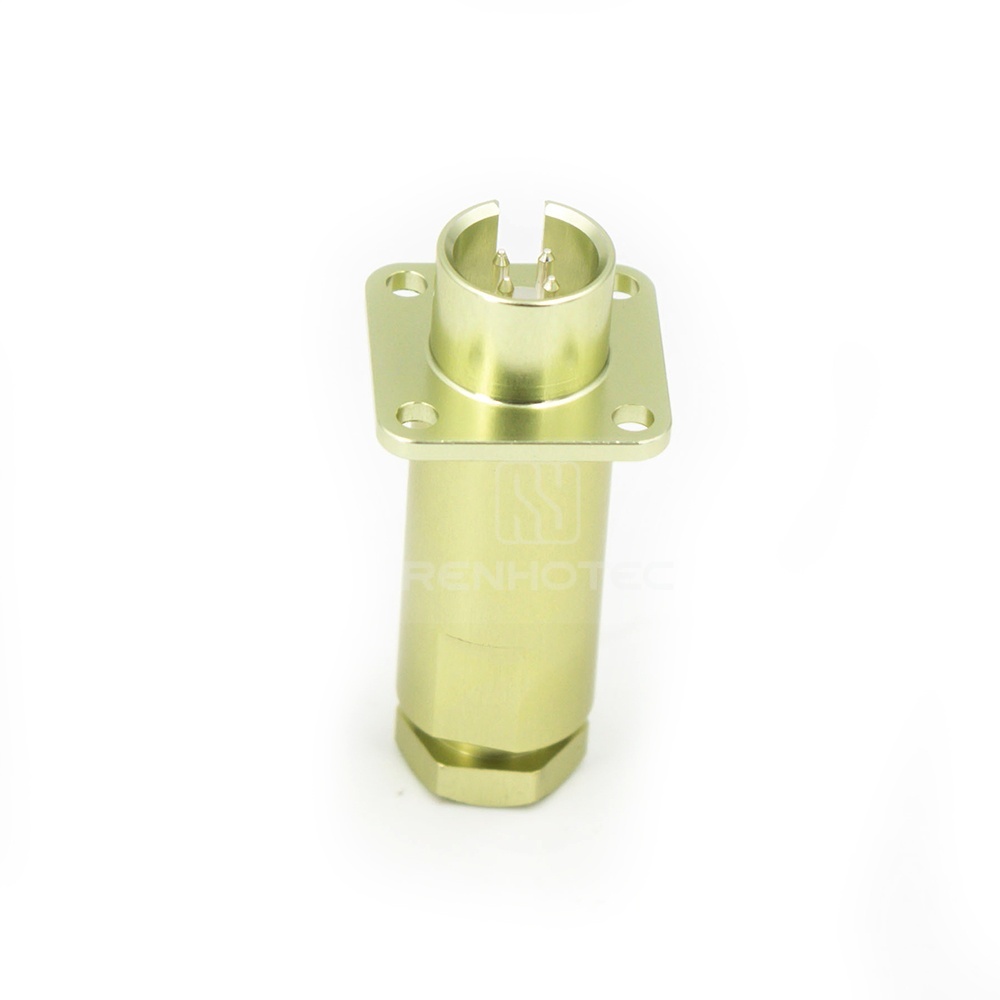

Push-pull PCB4ZPJ 4 Pin Male Socket with Cover Solder Cups — изображение 4

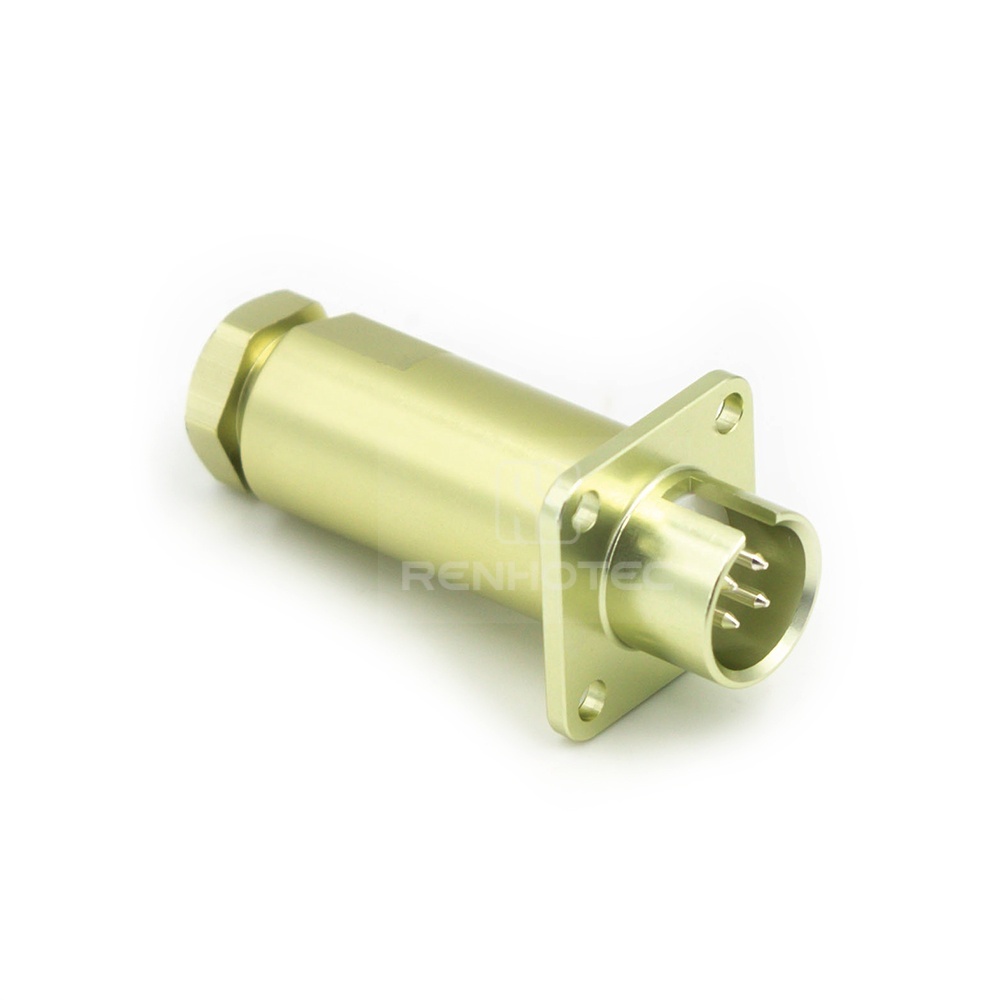

Push-pull PCB4ZPJ 4 Pin Male Socket with Cover Solder Cups — изображение 5

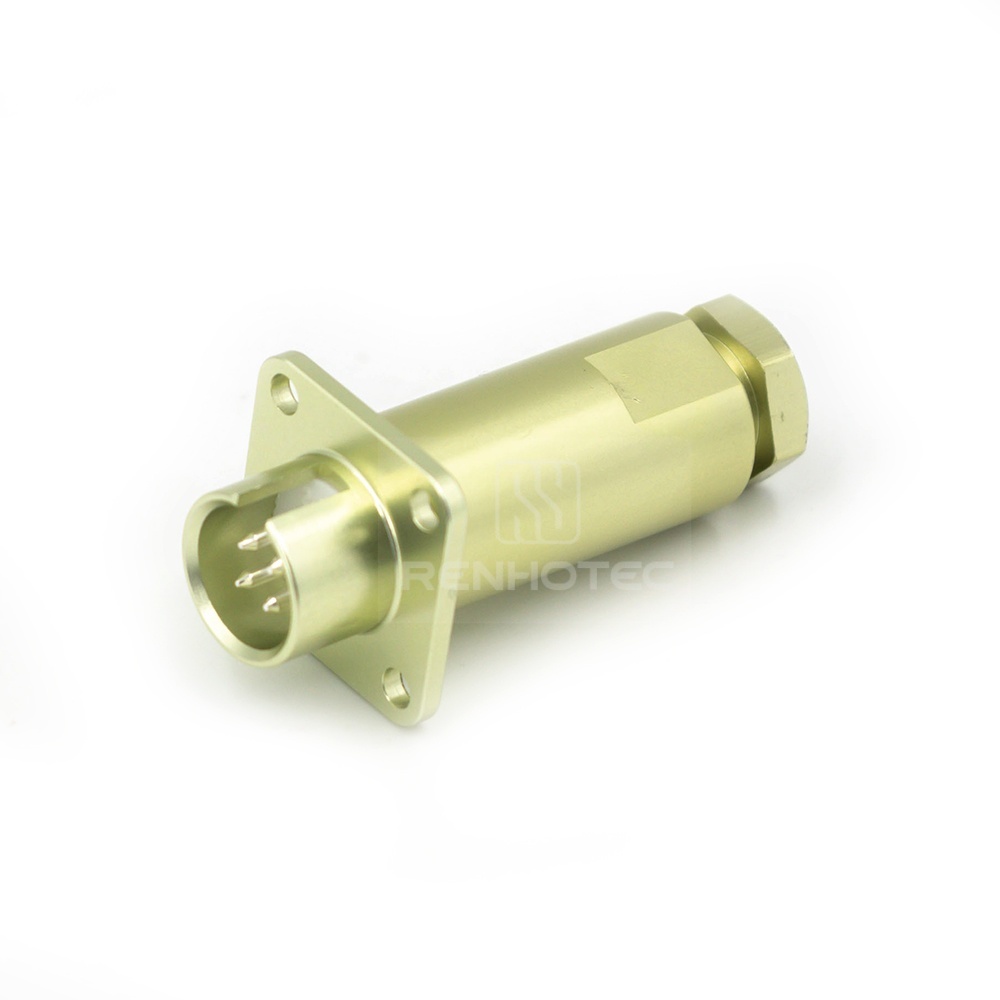

Push-pull PCB4ZPJ 4 Pin Male Socket with Cover Solder Cups — изображение 6

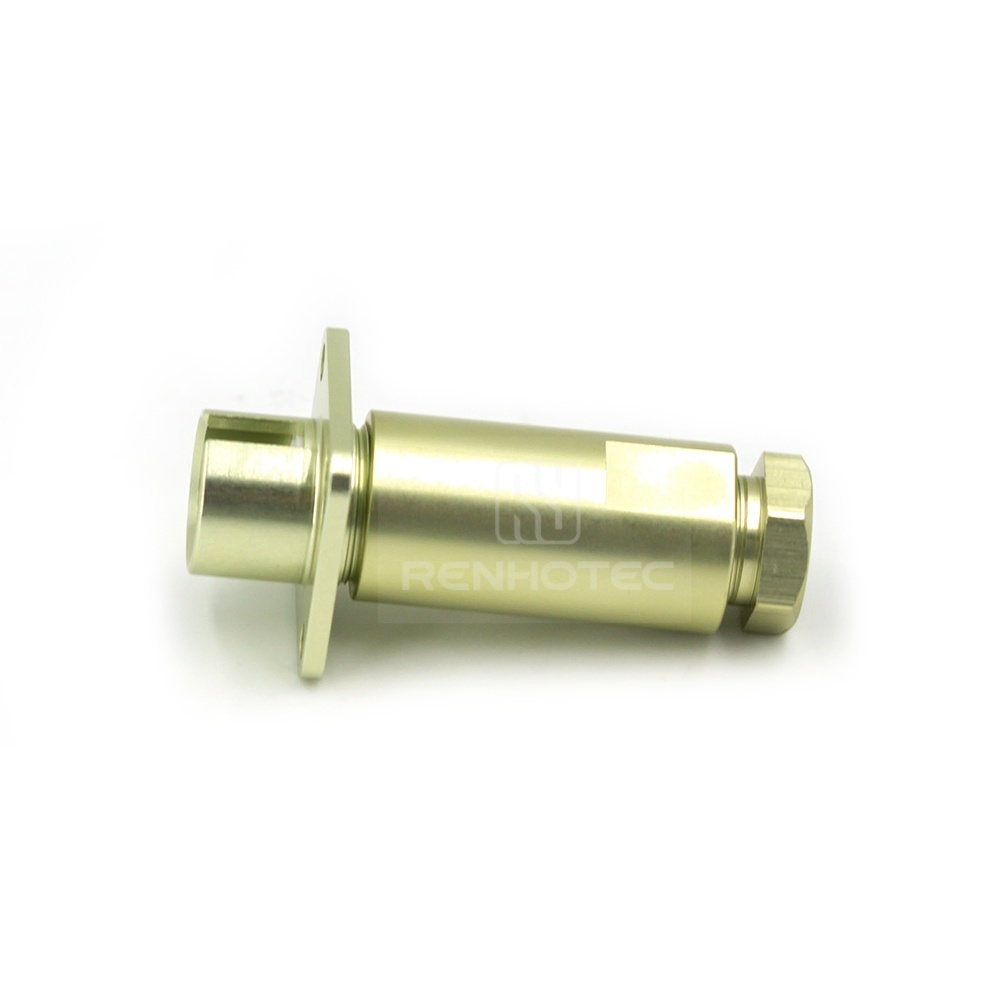

Push-pull PCB4ZPJ 4 Pin Male Socket with Cover Solder Cups — изображение 7

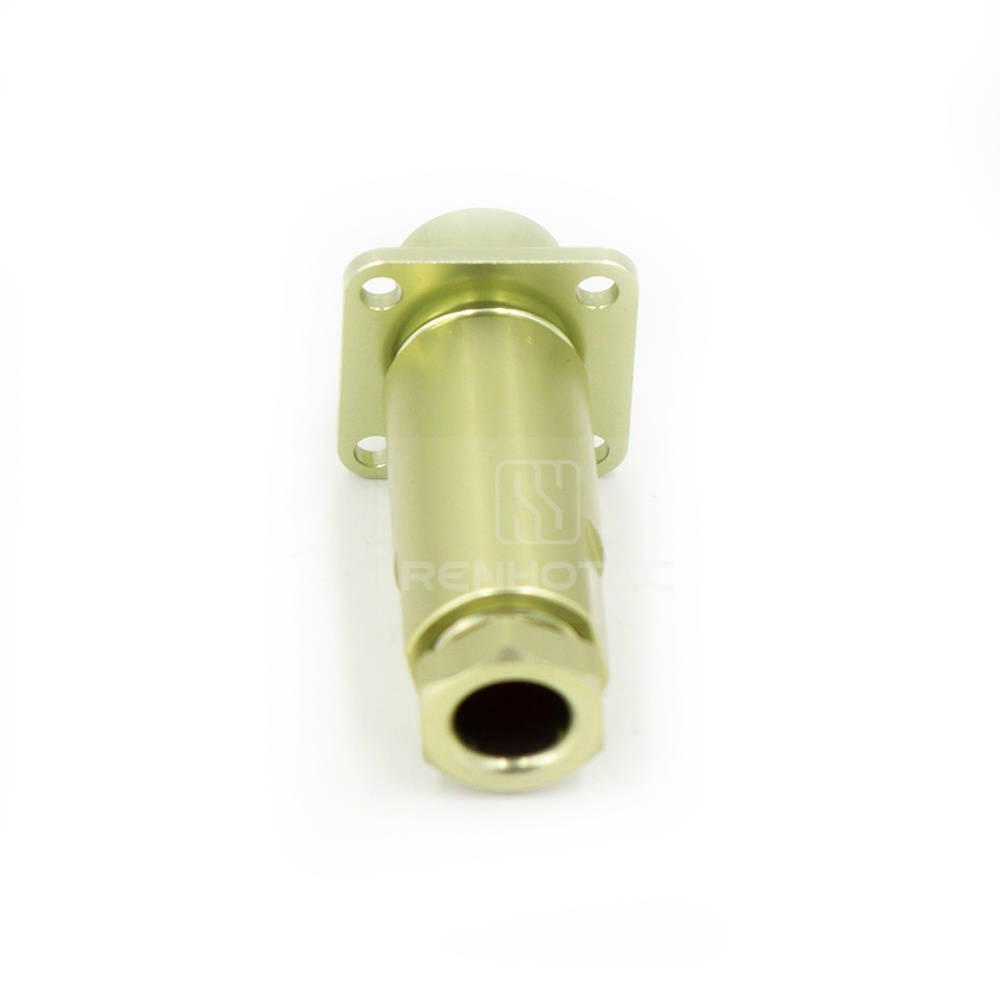

Push-pull PCB4ZPJ 4 Pin Male Socket with Cover Solder Cups — изображение 8

Push-pull PCB4ZPJ 4 Pin Male Socket with Cover Solder Cups — изображение 9

Push-pull PCB4ZPJ 4 Pin Male Socket with Cover Solder Cups — изображение 10

Push-pull PCB4ZPJ 4 Pin Male Socket with Cover Solder Cups — изображение 11

Push-pull PCB4ZPJ 4 Pin Male Socket with Cover Solder Cups

Получить цитату Talk To Us

Part Number :

PCB4TK	Push-pull PCB4TK 4 Pin Female Straight Plug Solder Cups
PCB4ZJ	Push-pull PCB4ZJ 4 Pin Male Socket Plug Solder Cups
PCB4TPK	Push-pull PCB4TPK 4 Pin Female Straight Plug with Cover Solder Cups
PCB4ZPJ	Push-pull PCB4ZPJ 4 Pin Male Socket with Cover Solder Cups
PCB4P	Push-pull PCB4P 4 Pin Cover
PCB7TK	Push-pull PCB7TK 7 Pin Female Straight Plug Solder Cups
PCB7ZJ	Push-pull PCB7ZJ 7 Pin Male Socket Plug Solder Cups
PCB7TPK	Push-pull PCB7TPK 7 Pin Female Straight Plug with Cover Solder Cups
PCB7ZPJ	Push-pull PCB7ZPJ 7 Pin Male Socket with Cover Solder Cups
PCB7P	Push-pull PCB7P 7 Pin Cover
PCB10TK	Push-pull PCB10TK 10 Pin Female Straight Plug Solder Cups
PCB10ZJ	Push-pull PCB10ZJ 10 Pin Male Socket Plug Solder Cups
PCB10TPK	Push-pull PCB10TPK 10 Pin Female Straight Plug with Cover Solder Cups
PCB10ZPJ	Push-pull PCB10ZPJ 10 Pin Male Socket with Cover Solder Cups
PCB10P	Push-pull PCB10P 10 Pin Cover
PCB19TK	Push-pull PCB19TK 19 Pin Female Straight Plug Solder Cups
PCB19ZJ	Push-pull PCB19ZJ 19 Pin Male Socket Plug Solder Cups
PCB19TPK	Push-pull PCB19TPK 19 Pin Female Straight Plug with Cover Solder Cups
PCB19ZPJ	Push-pull PCB19ZPJ 19 Pin Male Socket with Cover Solder Cups
PCB19P	Push-pull PCB19P 19 Pin Cover
PCB32TK	Push-pull PCB32TK 32 Pin Female Straight Plug Solder Cups
PCB32ZJ	Push-pull PCB32ZJ 32 Pin Male Socket Plug Solder Cups
PCB32TPK	Push-pull PCB32TPK 32 Pin Female Straight Plug with Cover Solder Cups
PCB32ZPJ	Push-pull PCB32ZPJ 32 Pin Male Socket with Cover Solder Cups
PCB32P	Push-pull PCB32P 32 Pin Cover
PCB50TK	Push-pull PCB50TK 50 Pin Female Straight Plug Solder Cups
PCB50ZJ	Push-pull PCB50ZJ 50 Pin Male Socket Plug Solder Cups
PCB50TPK	Push-pull PCB50TPK 50 Pin Female Straight Plug with Cover Solder Cups
PCB50ZPJ	Push-pull PCB50ZPJ 50 Pin Male Socket with Cover Solder Cups
PCB50P	Push-pull PCB50P 50 Pin Cover

PC-B series small circular electrical connectors are small in size, metal aluminum shell, light weight, Push-pull connection, reliable electrical connection, easy to use, currently have 4, 7, 10, 19, 32, 50 cores, commonly compatible with Russia's PCБТВ- 4, 7, 10, 19, 32, 50-core products. It is widely used in electrical connections between various electronic instruments and electrical equipment.

Plug

Plug with cover

Socket

Socket with cover

Needle Layout

Product Specification

Plug

D	D1	d1	A	B	b	I
M10x0.75	9	2.2	11.8±0.1	16.5	1.4	5.6
M12x0.75	11	2.2	13.2±0.1	18	1.4	5.6
M14x0.75	13	2.2	15±0.1	20	1.4	5.6
M18x0.75	16.5	2.2	18±0.1	24	1.4	5.6
M22x0.75	20.5	2.7	21.5±0.1	28	1.8	5.2
M27x0.75	25	3.2	26±0.1	33	2.0	5.7

Plug with Cover

D	D1	d	d1	A	B	b	Lmax	I
M10x0.75	9	6	2.2	11.8±0.1	16.5	1.4	36	5.6
M12x0.75	11	8	2.2	13.2±0.1	18	1.4	38	5.6
M14x0.75	13	9	2.2	15±0.1	20	1.4	40	5.6
M18x0.75	16.5	11	2.2	18±0.1	24	1.4	42	5.6
M22x0.75	20.5	13	2.7	21.5±0.1	28	1.8	44	5.2
M27x0.75	25	16	3.2	26±0.1	33	2	48	5.7

Receptacle

D	D1	d1	A	B	b
M10x0.75	11.5	2.2	11.8±0.1	16.5	1.4
M12x0.75	14	2.2	13.2±0.1	18	1.4
M14x0.75	16	2.2	15±0.1	20	1.4
M18x0.75	20.5	2.2	18±0.1	24	1.4
M22x0.75	24.5	2.7	21.5±0.1	28	1.8
M27x0.75	30	3.2	26±0.1	33	2

Receptacle with Cover

型号	D	d	b	A	B	d1	Lmax
PC-4	M10x0.75	6	1.4	11.8±0.1	16.5	2.2	36
PC-7	M12x0.75	8	1.4	13.2±0.1	18	2.2	38
PC-10	M14x0.75	9	1.4	15±0.1	20	2.2	41
PC-19	M18x1	11	1.4	18±0.1	24	2.2	43
PC-32	M22x1	13	1.8	21.5±0.1	28	2.7	45
PC-50	M27×1	16	2	26±0.1	33	3.2	50

Applications

Railroad Equipment
Outdoor LED Lights
Industrial Machinery
Generator
Automotive Manufacturing
Sensors
Intelligent Manufacturing
Construction Equipment
Excavators

Part Number	PCB4ZPJ
Connector Type	Розетка
Orientation	Прямой
Contact Type	Male
Number of Positions	4
Fastening Type	Push-Pull
Mounting Type	Panel Mount
Mounting Features	Flange Fastended
Contact Termination	Solder Cup
Contact Dia.	Φ1mm
Shell Material	Aluminium Alloy
Surface Treatment	Anodizing Treatment
Insulation Material	Bakelite
Contact Material	Copper Alloy
Contact Plating	Gold / Silver
Colour	Golden Yellow/Pale Yellow/Yellow Green
Protection Rating	IP64
Operating Current	3A
Operating Voltage	200V
Contact Resistance	≤8mΩ
Atmosphere	101.33KPa~6.67Pa
Vibration	10-2000Hz
Operating Temperature	-40℃~+105℃
PC Series	PC4TB
