NMEA 2000 4-Way Backbone Starter Kit with 5M Drop Cable for Garmin Simrad Lowrance

Quick deployment: plug and play, pre-configured basic layout, suitable for connecting two to three devices.
Compact design: 4 Ways T-connector reduces installation space requirements and improves layout efficiency.
Adapt to multi-brand devices: compatible with mainstream brands such as Garmin, Raymarine, Lowrance, etc.

About this Item

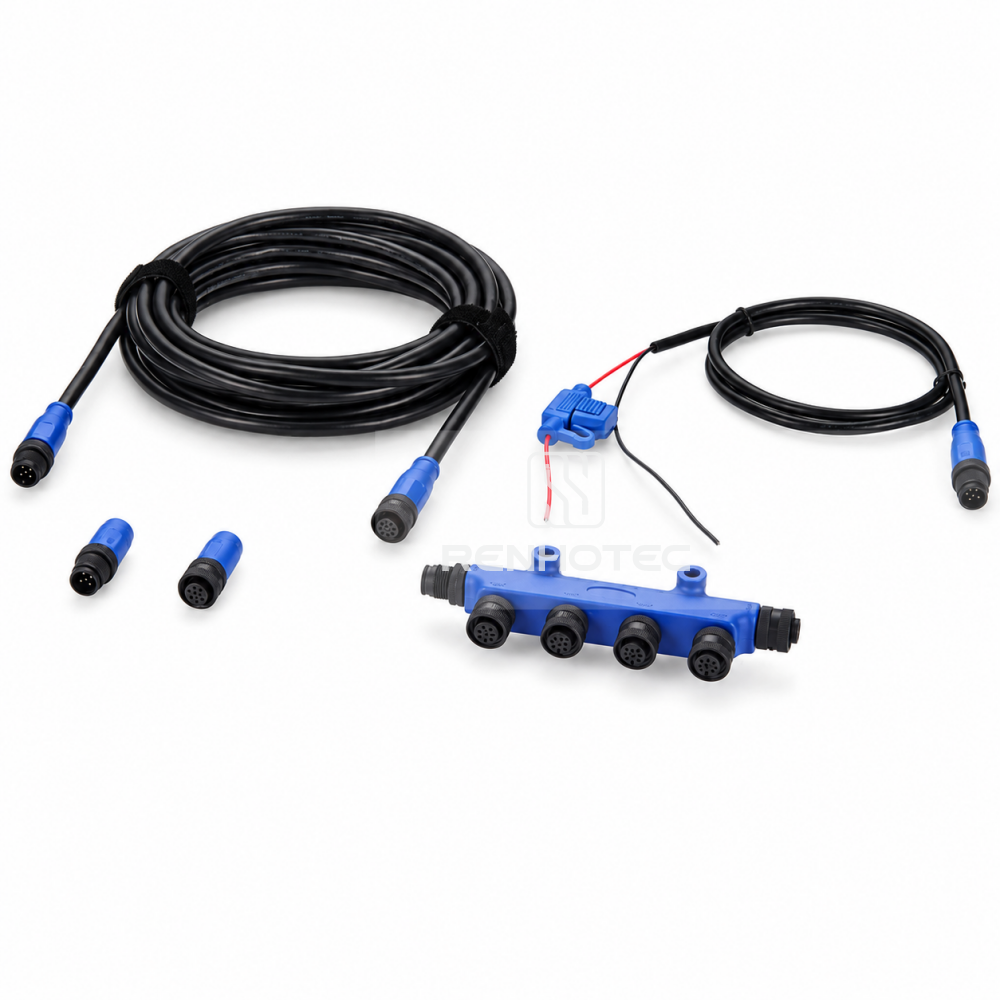

Included components:

1 x N2K Drop Cable 5M (16.4FT)
1 x Power Cable with 5A Fuse 1M (3.28FT)
1 x 4 Port Tee Connector
1 x Male Terminator (120Ω)
1 x Female Terminator (120Ω)

Universal NMEA 2000 Starter Kit: Crafted from high-quality PVC, this kit is oil-resistant, high-temperature resistant, seawater-resistant, and fire-retardant, ensuring durability and corrosion resistance.
Waterproof & Reliable: Equipped with Micro-Change M12 5Pin connectors, the kit provides stable conductivity and IP67 waterproofing for reliable use in harsh marine environments.
Universal NMEA 2000 Connector: The Micro-C M12 Marine Backbone Tee Splitter features a keyway anti-drop design, ensuring secure connections and facilitating two-way communication between main and branch lines.
Wide Compatibility: Compatible with brands like Garmin, Lowrance, Simrad, and B&G, supporting a variety of protocols including NMEA 2000, CAN Bus, DeviceNet, and CANopen.

NMEA 2000 is a plug-and-play communications protocol that makes it easy to integrate different devices on board. It provides a standardized way for devices to communicate with each other, so you can easily connect chartplotters, depth sounders, engine monitors and other devices to create a fully integrated shipboard system.
Key benefits of the NMEA 2000 include high data transfer rates that allow devices to exchange large amounts of data quickly and reliably. This is particularly useful for devices that require real-time data, such as GPS. The protocol also supports bi-directional communication, which is critical for devices that require feedback or control, such as autopilots or leveling devices.

NMEA 2000 Series

NMEA 2000 Connectors

This connector is typically a waterproof twist-lock type with a 5-pin configuration for easy installation and removal of equipment.

NMEA 2000 T-Type Cables

These cables utilize a T-type connector on one end, allowing for easy branching of the network to connect multiple devices. The cables are designed to be rugged and weatherproof for use in harsh marine environments. They are available at a variety of lengths to meet different installation requirements.

NMEA 2000 Trunk Cables M12 & 7/8″

These cables, usually with a standard connector at each end, are the backbone of the NMEA 2000 network and form the main communication channel for data exchange. These cables are suitable for marine environments and are available in a variety of lengths.

NMEA 2000 Field Installation Connectors M12 & 7/8″

Establish connections between NMEA 2000 devices. These connectors are designed to withstand harsh environmental conditions and provide reliable data communications within the NMEA 2000 network.

NMEA 2000 Terminators M12 & 7/8″

The NMEA 2000 terminator is a device used to terminate both ends of the NMEA 2000 network to prevent signal reflections from causing data errors.

Applications

NMEA 2000 connectors and cables are widely used in marine electronics to facilitate communication between various devices on boats and vessels. Here are some applications:

Integrated Navigation Systems
Engine Monitoring
Instrumentation and Gauges
Communication Systems
Weather Monitoring
Entertainment Systems
Security and Monitoring Systems
Power Management

Multi-function displays
Depth sounder and fish finder
Autopilot Systems
Wind Sensors
Compass Heading Sensors

Engine Monitoring
Fuel Flow Sensors
Tank Level Sensors
Oil Pressure and Temperature Sensors

AIS Transceivers
Radio equipment
GPS antennas
DSC Systems

Operating Temperature	-40℃~+85℃
1st Connector Series	M12
2nd Connector Series	M12
Color	Black

Choosing the right NMEA 2000 starter kit depends on the number of marine devices in your network, available installation space, and future expansion requirements.

Product Type	Recommended For	Device Capacity	Included Connectors
Single Device Starter Kit	Basic Backbone	1 Device	1 Tee + 1 Power Tee
Dual Device Starter Kit	Standard Backbone	2 Devices	2 Tee Connectors
Compact 2-Way Tee Starter Kit	Compact Network	2 Devices	Integrated 2-Way Tee
4-Way Backbone Starter Kit	Compact Backbone	Up to 4 Devices	Integrated 4-Way Splitter
Expandable 4-Way Starter Kit	Hybrid Backbone	4+ Devices	1 Tee + 1 Integrated 4-Way Splitter
Multi-Device Backbone Starter Kit	Standard Backbone	3 Devices(Expandable)	3 Tee Connectors (Expandable)

Quick Recommendations

For first-time NMEA 2000 users, choose the Single Device or Dual Device Starter Kit.
For compact installations on small boats or kayaks, the Compact 2-Way or 4-Way kits are recommended.
For advanced marine electronics systems with multiple devices, select the Multi-Device Backbone Starter Kit.
If you plan to expand your NMEA 2000 network in the future, the Expandable 4-Way Starter Kit offers greater flexibility.

All kits are compatible with standard NMEA 2000 marine electronics from Garmin, Simrad, Lowrance, B&G, and other major brands.
