English| Number of Positions | |
|---|---|
| Coding | A, B |
| Contact Type | Female |
| Body Material | Brass, Nickel Plated |
| Coded | A-Coded |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Resistance | ≤5MΩ |
| Contact Termination | Solder Cup |
| Insulation Material | PA66+GF |
| Insulation Resistance | ≥100MΩ |
| Mechanical and Working Life | ≥500 |
| Ingress Protection | IP67(Mated) |
| Rated Current | 3A |
| Rated Voltage | 50V AC/60V DC |
| Seal | Black, NBR |
| Shielding | Unshielded |
| Operating Temperature | -25℃ ~ +80℃ |
| Wire Gauge | 24AWG/0.25mm2 |
| Wire Material | PVC |

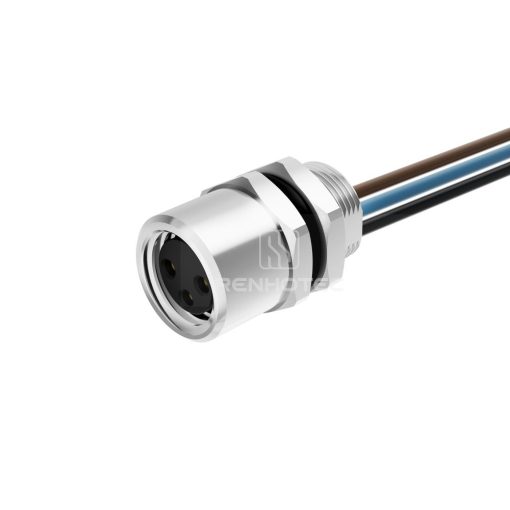

M8 Female Panel Mount Cable Assembly, Rear Fastened, Unshielded, Straight
- Compliant with IEC 61076 standard.
- Protection ratings: IP65 (mated), IP67 (mated).
- 360° EMC-shielded version available.
- Pin configurations: 3, 4, 5, 6, or 8 positions.
- Cable length, material, and color can be customized.
