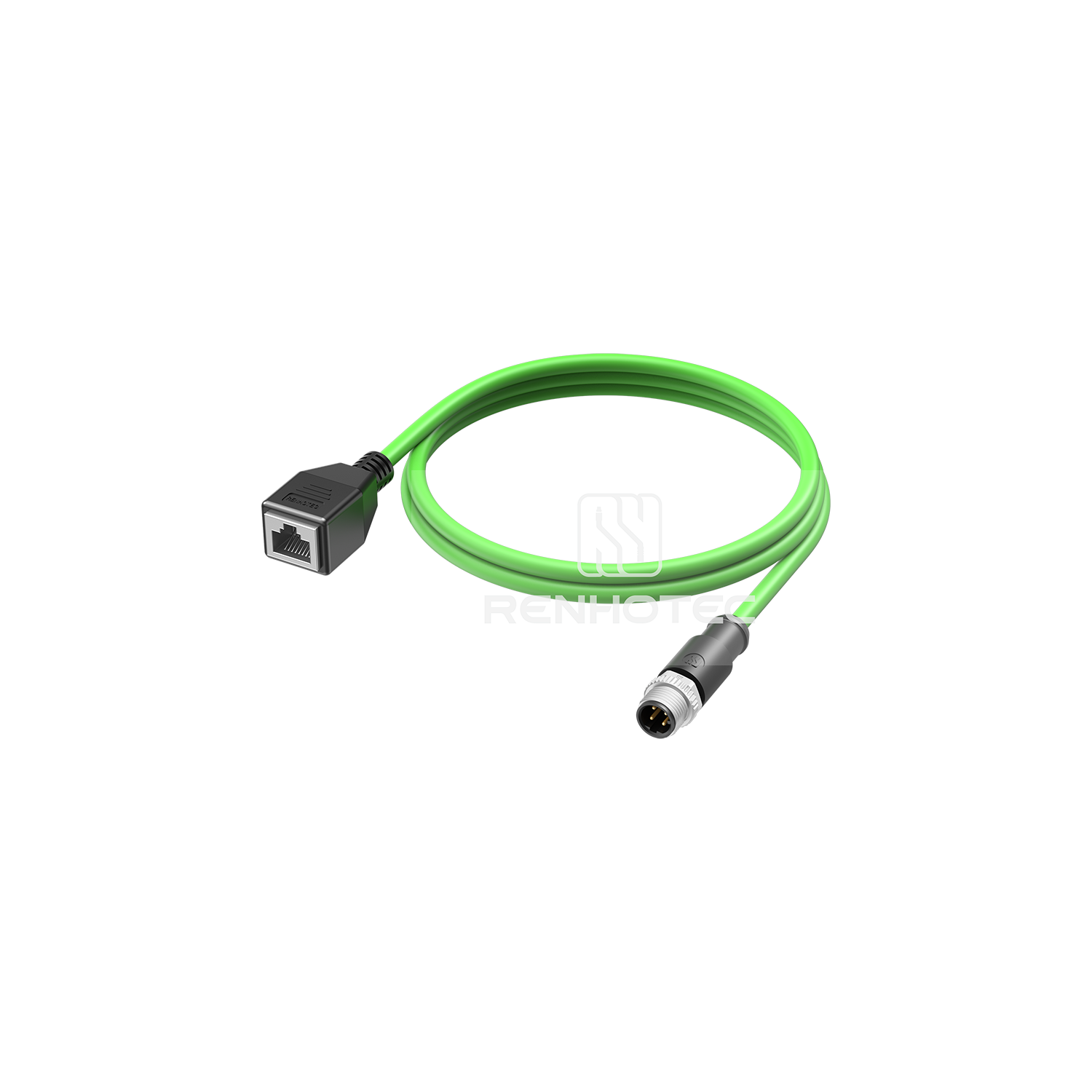

M12 Male to RJ45 Female Double-ended Cable Straight PVC/PUR

M12 Male to RJ45 Female Double-ended Cable Straight PVC/PUR

Артикул: Н/Д Категории: , ,
Получить цитату
Key

A, D, X
Number of Positions

,

Contact Type

Male to Female
Screw Nut Material

Brass, Nickel Plated
Contact Finish

Gold
Contact Material

Brass
Contact Termination

Solder Cup
Insulation Material

PA66+GF
Overmolding Material

PVC/TPU
Cable Material

PVC/PUR/Customized
Cable Colour

Black/Customized
Wire Gauge

22AWG/0.34mm²
Seal

FKM
Shielding

EMI-Shielded
Protection Rating

IP67 (Mated)
Rated Current

4A
Rated Voltage

250V
Contact Resistance

≤5MΩ
Insulation Resistance

≥100MΩ
Mating Cycles

≥500
Temperature range

-25℃ ~ +80℃
