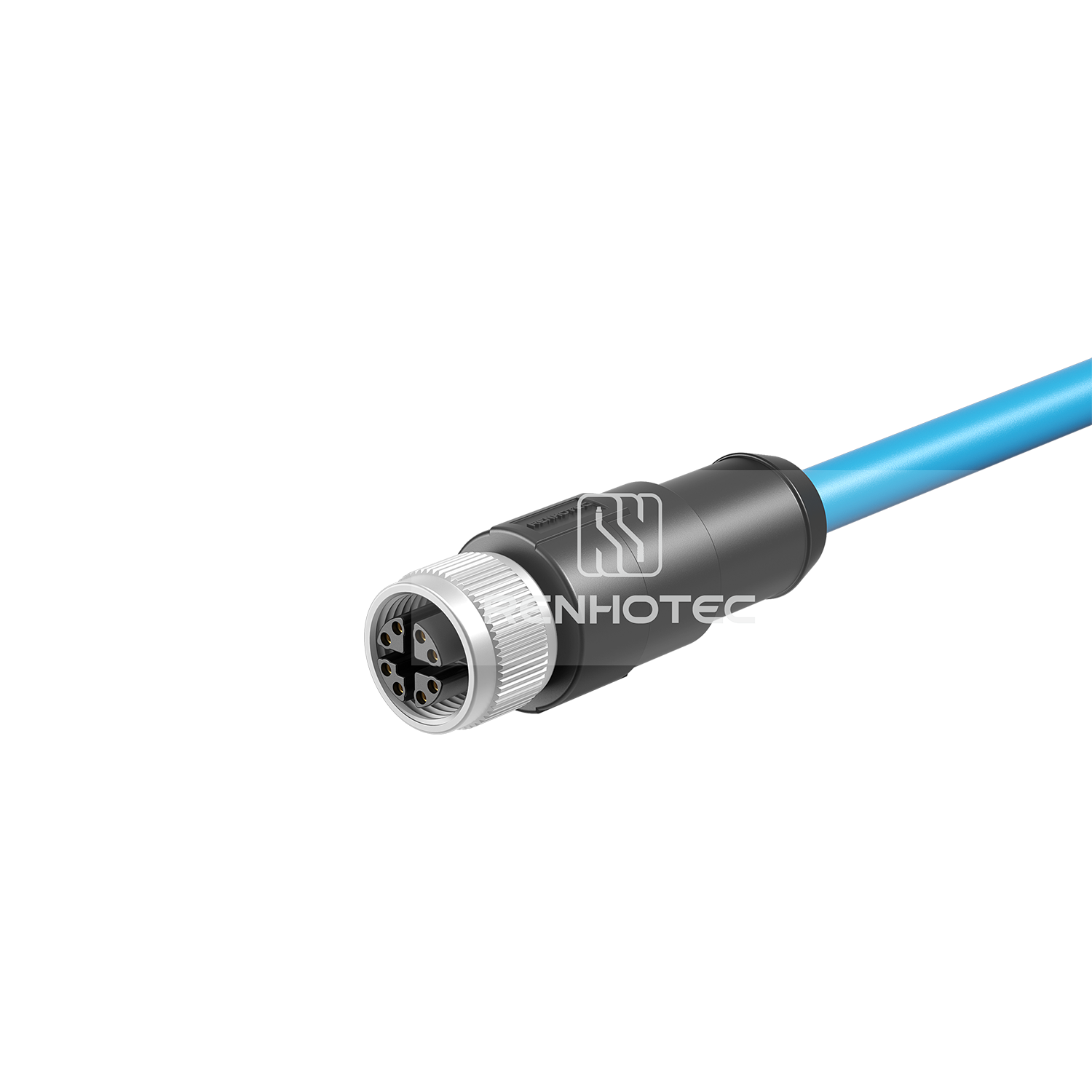

M12 8 Pin X Code Female Single-ended Cable with CAT 6A S/FTP Ethernet EMI-Shielded Straight PVC/PUR

M12 8 Pin X Code Female Single-ended Cable with CAT 6A S/FTP Ethernet EMI-Shielded Straight PVC/PUR

Артикул: RHT-605-10151-8X Категории: , ,
Получить цитату
Key

X
Number of Positions

Contact Type

Female
Orientation

Body Material

Brass, Nickel Plated
Contact Finish

Gold
Contact Material

Phosphor Bronze
Contact Termination

Solder Cup
Insulation Material

PA66+GF
Cable Material

PVC/PUR/TPU/Customized
Wire Gauge

24AWG/0.25mm2
Seal

Black, NBR
Shielding Bracket Material

Nickel Plated, Zinc Alloy
Shielding

EMI-Shielded
Protection Rating

IP67(Mated)
Rated Current

0.5A
Rated Voltage

60V AC/DC
Contact Resistance

≤5MΩ
Insulation Resistance

≥100MΩ
Mating Cycles

≥500
Temperature range

-20℃ ~ +80℃
