FQ Series Bayonet Waterproof Circular Connectors

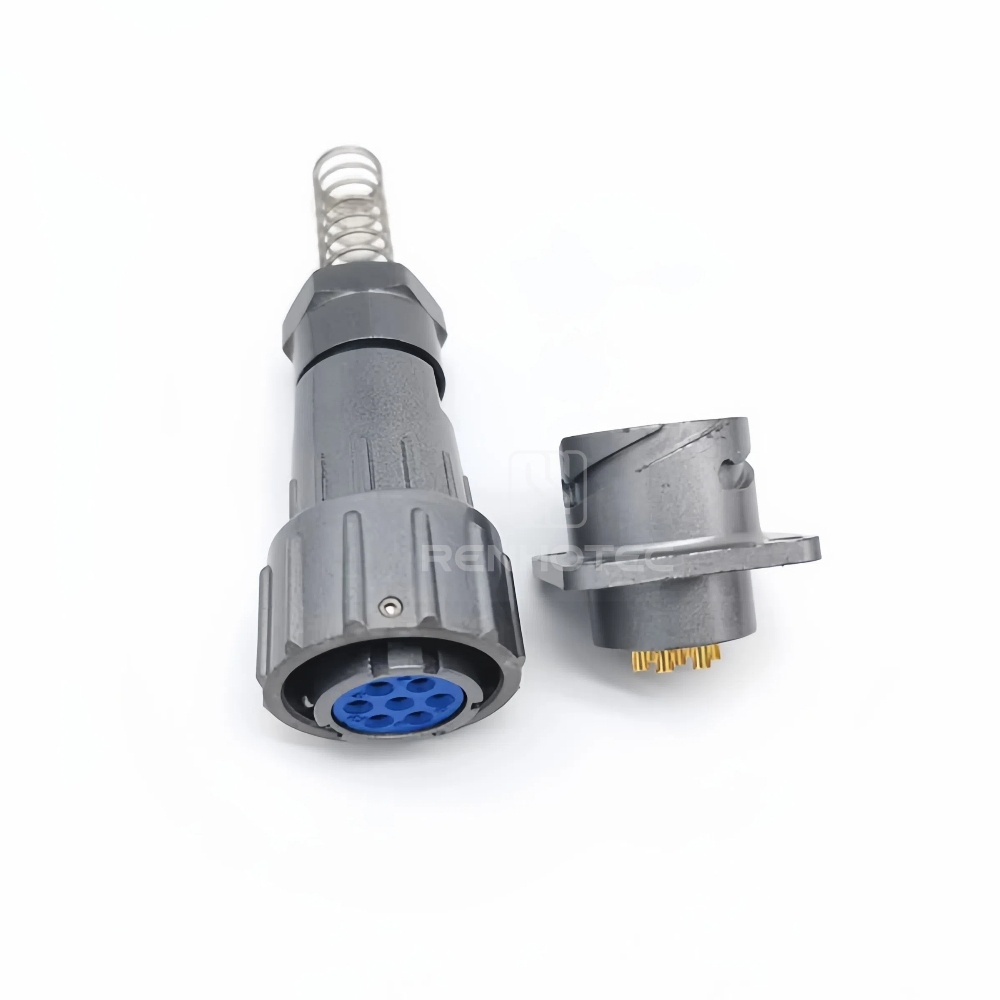

FQ series waterproof circular connectors are manufactured in accordance with the DZ4Q/RE008-84 standard. They are an improved version of the Q series, featuring enhanced waterproof performance. The product offers an advanced structure, high reliability, compact size, lightweight design, and excellent sealing capabilities.
The female contacts use a highly reliable squirrel-cage elastic structure instead of the traditional wire spring design, providing low contact resistance, strong vibration and impact resistance, and superior sealing. The bayonet quick-connection mechanism ensures easy operation, making these connectors widely used in electrical connections across various types of equipment.
Technical Parameters
| Connector: | FQ Series Circular Connector | ||||||||
| Shell Size: | 14.18.24.30 | ||||||||
| Contacts: | 2 3 4 5 6 7 9 12 19 20 26 32 42 55 Pin | ||||||||
| Connection Method: | Bayonet Connection | ||||||||
| Terminal Method: | Solder | ||||||||
| Material of Contacts: | Copper with Gold Plated | ||||||||
| Insulator: | PBT | ||||||||
| Shell Material: | Aluminum Alloy Surface Anodizing Treatment | ||||||||
| Ambient Temperature: | -55°C~+100°C | ||||||||
| Relative Humidity: | When the temperature is 40°C, it can reach 98±3% | ||||||||
| Atmospheric: | 1Kpa | ||||||||
| Vibration: | 10 ~ 200Hz, 150M/S² | ||||||||
| IP Rating: | IP67 | ||||||||
| Life Duration: | 500 Cycles | ||||||||
Outer Dimensions
The Number and Arrangement of Contacts
